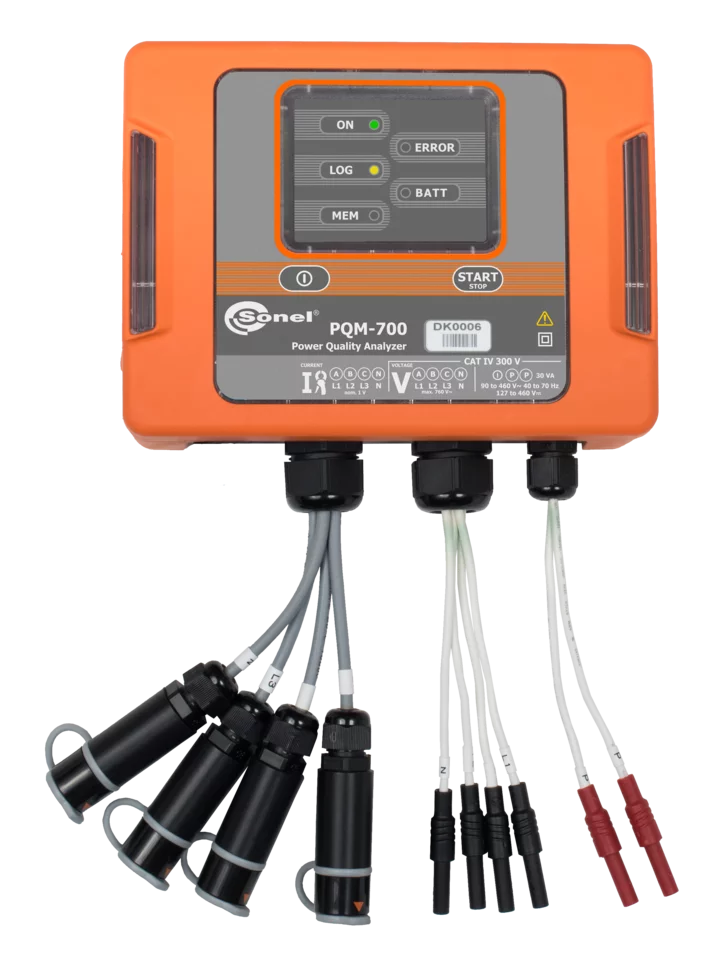

Power quality analyzer

Index cat. WMUSPQM700

ean 5907624005624

Ingress protection: IP 65

Measurement category: CAT III 600 V, CAT IV 300 V

Data transmission: USB

2 300,03 $


Delivery: up to 34 days

Additional accessories


Three-phase socket adapter 16 A (5P)


-29,25 $

89,25 $

60,00 $



Three-phase socket adapter 32 A (5P)

99,96 $



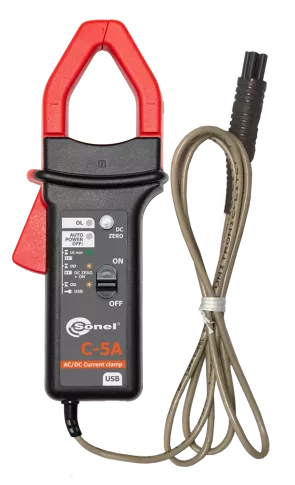

Current clamp (Φ=52 mm) 1000 A AC

747,92 $



Current clamp (Φ=39 mm) 1000 A AC

535,50 $



Current clamp (Φ=20 mm) 10 A AC

508,73 $



Current clamp (Φ=24 mm) 100 A AC

585,48 $



Flexible coil (Φ=360 mm)

671,16 $



Flexible clamp (Φ=360 mm)

635,46 $



Flexible clamp (Φ=360 mm)

997,82 $



Flexible coil (Φ=235 mm)

481,95 $


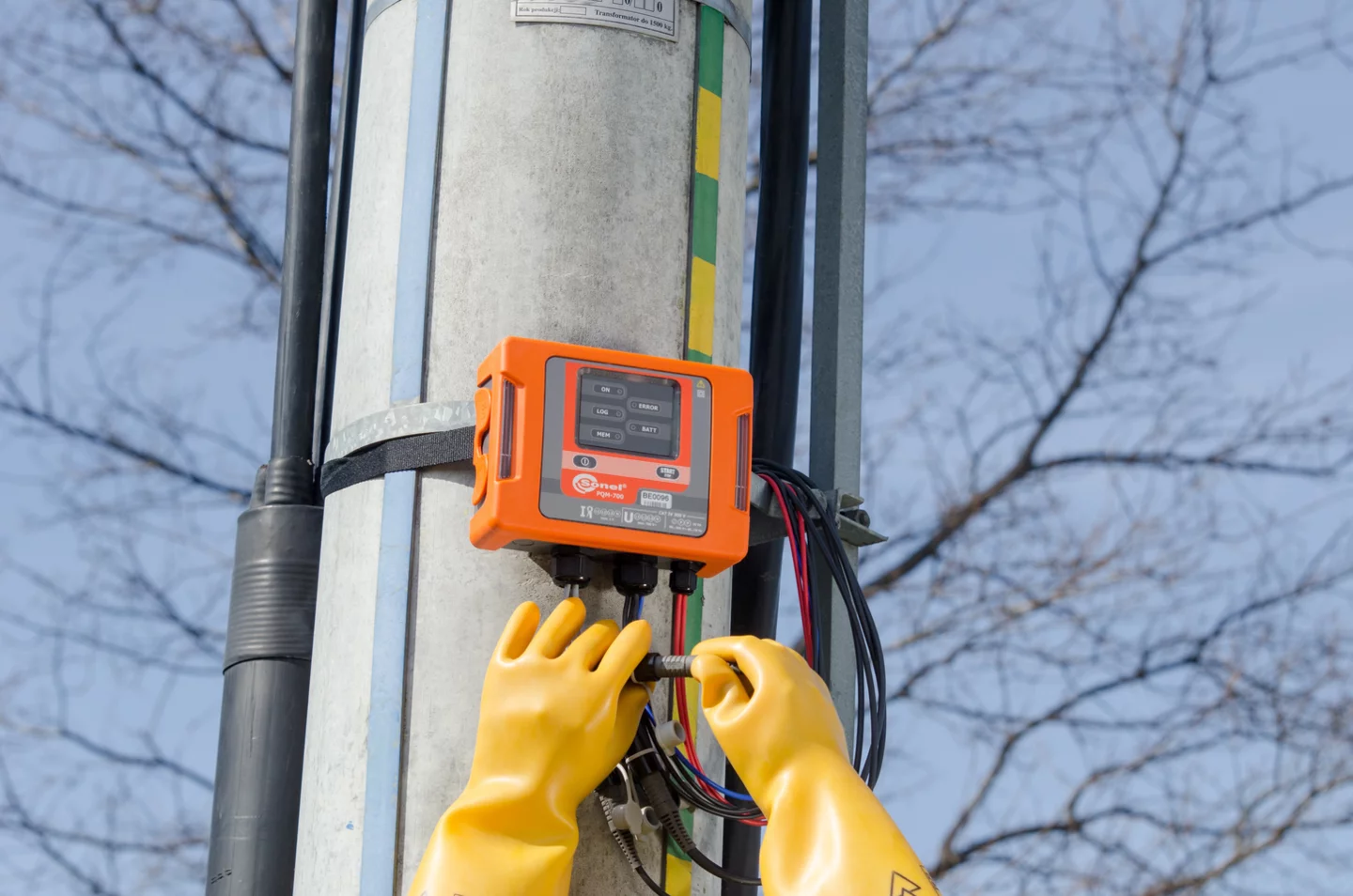

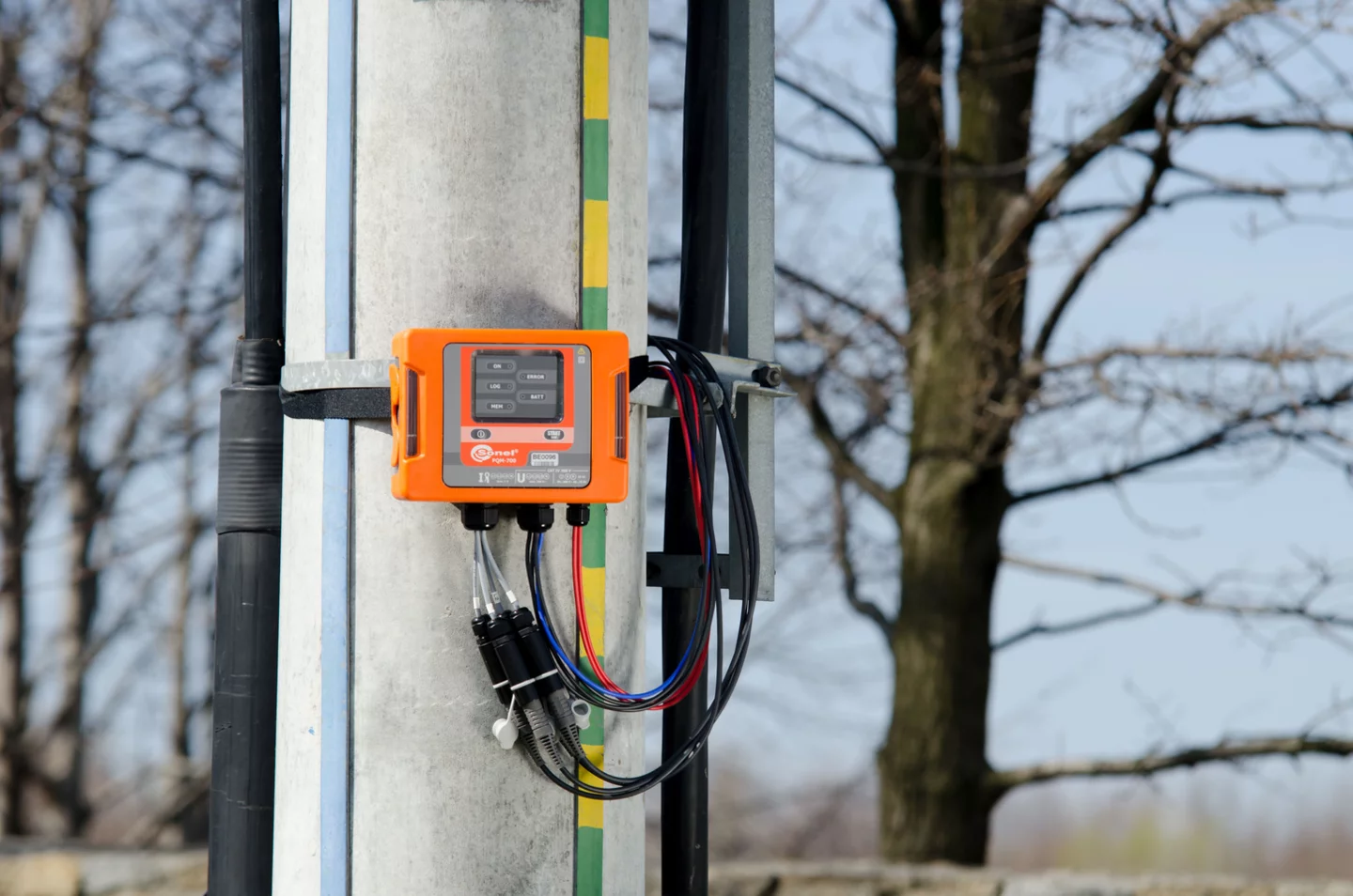

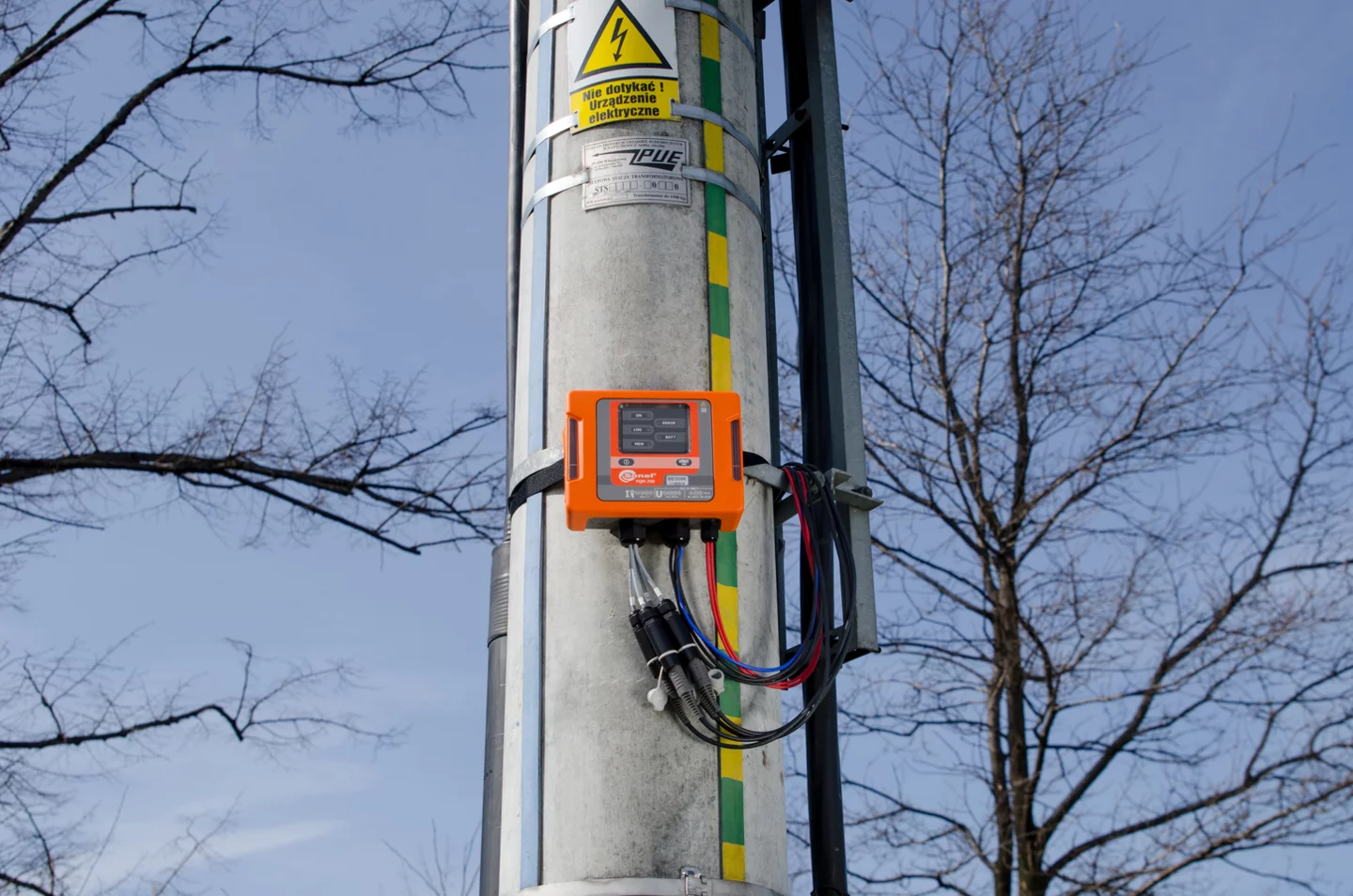

Recording and diagnostics under all conditions

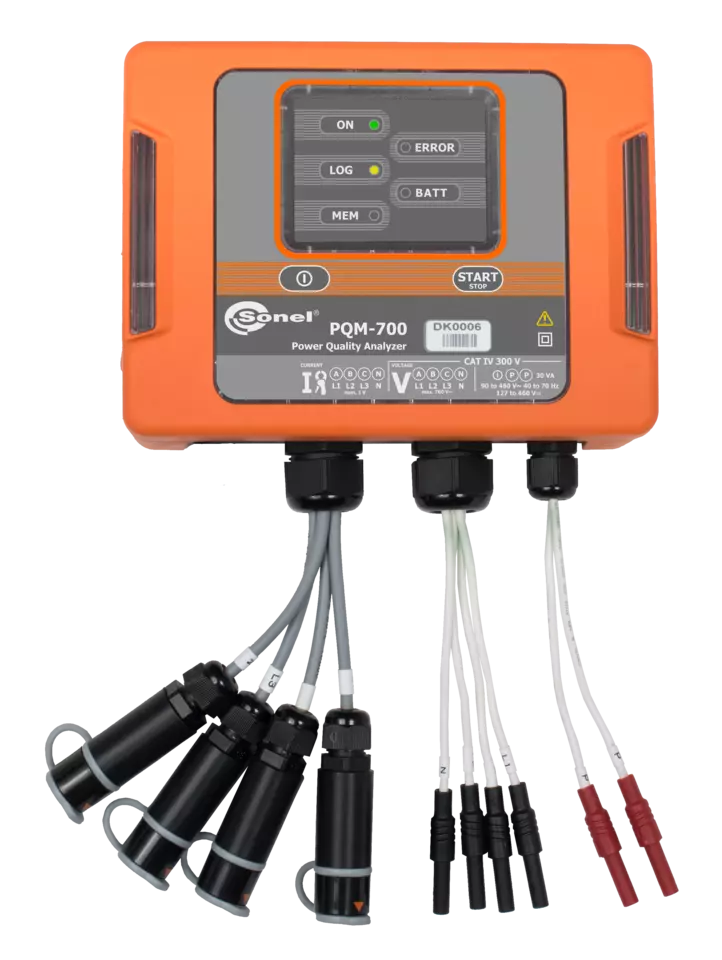

Resistant to any conditions, the Sonel PQM-700 power quality analyser is an effective device for analysing and recording network parameters. Based on advanced technology, the Sonel PQM-700 power quality analyser is effective for measuring, analysing and recording 50/60 Hz power network parameters. It is also used to control the quality of electricity in accordance with the European standard EN 50160 and the Regulation of the Minister of Economy of 4 May 2007 on detailed conditions for the operation of the power system. The extensive measurement capabilities of this device will be appreciated by a wide range of users who need a portable device to check the quality of electricity. The Sonel PQM-700 meets the demanding standards of the IEC 61000 standard for Class S analysers related to measurement uncertainties and measurement methods. This meter model is intended for those users who do not need a Class A analyser, as the PQM-700 provides comprehensive measurements of power quality parameters in Class S in accordance with IEC 61000-4-30.


  • 4 current inputs, physical measurement of current in the neutral conductor.
  • Registration of up to 1100 parameters, including average, maximum, minimum and instantaneous values.
  • Built-in heater, stable operation at low temperatures down to -20ºC.
  • Internal rechargeable battery, autonomy of the meter (min. 6 hours).
  • IP65 ingress protection, possibility of work in rain, snow and high humidity

Measured parameters

  • Voltages L1, L2, L3, N (four measurement inputs) – average, minimum, maximum and instant values within the range up to 760 V, interoperability with voltage transducers.
  • Currents L1, L2, L3, N (four measurement inputs) – average, minimum, maximum and instant values, current measurement within the range up to 6 kA (depending on applied current clamp), interoperability with current transducers.
  • Crest factors for current (CFI) and voltage (CFU).
  • Frequency within the range of 40 Hz – 70 Hz.
  • Active power (P), reactive power (Q), distortion power (D), apparent power (S) with identification of the nature of reactive power (capacitive, inductive).
  • Calculation of reactive power using the Budeanu method and IEEE 1459 method.
  • Active energy (EP), reactive energy (EQ), apparent energy (ES).
  • Power factor (PF), cosφ, tanφ.
  • Harmonics up to the 40th in voltage and current.
  • Total harmonic distortion THD for current and voltage.
  • Short-term (PST) and long-term (PLT) light flicker index.
  • Unbalance of voltages (in compliance with IEC 61000-4-30 class S) and currents.
  • Event logging for current and voltage along with oscillograms and half-period RMS charts.
  • All parameters are registered in compliance with class S according to standard EN 61000-4-30.

Wide range of mains to analyze

  • With rated frequency 50/60 Hz
  • With rated voltages: 64/110 V;110/190 V; 115/200 V; 120/208 V 127/220 V;  133/230 V; 220/380 V; 230/400 V; 240/415 V; 254/440 V; 265/460 V; 277/480 V, 290/500 V, 400/690 V
  • Direct current
  • Systems:
    • single-phase
    • split-phase with common N
    • three-phase – WYE with and without N conductor
    • three-phase – Delta
    • three-phase – 2-element WYE without N conductor (Aron/Blondel)
    • three-phase – 2-element Delta (Aron/Blondel)
    • with current and voltage transducers


The analyzer provides comprehensive measurements of power quality parameters in class S, in accordance with IEC 61000-4-30, which guarantees high accuracy of results. Even when the temperature reaches -20ºC, the measurements are reliable and the device operation is stable - all thanks to the built-in heater.

Thanks to the internal battery, the analyzer does not turn off after a power failure, but maintains recording - up to 6 hours. Data is recorded on a removable 2 GB memory card. Logs can be downloaded using a USB connection or using an external reader. Then they can be analyzed in free Sonel Analysis software.

Displaying data

All recorded parameters - including indicated events - can be easily read using the dedicated Sonel Analysis software. The advanced features of the application allow you to view the collected results and save them on your computer’s hard drive - in the form of raw data or reports.

Sonel Analysis is constantly updated and developed. This means that the user will keep up with the latest requirements of norms and standards.


PQM-700 fulfills its role in industry - in hands of electricians, maintenance services etc. - as a cheap, multi-functional load parameter recorder. It is also used by consumers and producers of renewable energy (wind farms, solar farms), where a 4-quadrant power analysis is required.


Sonel Analysis software – application delivered as standard accessory, indispensable for working with PQM-series analyzers. Depending on the mating instrument used, the software enables:

  • analyzer configuration,
  • data reading from logger,
  • preview of network parameters in real time (with capability of reading via GSM modem),
  • deletion of data in the analyzer,
  • data presentation in tables,
  • data presentation in charts,
  • data analysis and generating reports in compliance with standard EN 50160 (reports) and other user defined reference conditions - also for PV micro-installations up to 50 kW, a breakdown  for active power states P>0, P<0 and P=0 and taking into account the graphs Q1=f(U1/Un) and cosφ=f(P/Pn),
  • independent support of multiple analyzers,
  • analyzer firmware updates.

The software enables readout of selected parameters and their visualization in real time. These parameters are measured independently from the registration saved on the memory card. The user can view:

  • charts of voltage and current progression (oscilloscope),
  • charts of voltage and current over time,
  • phasor diagram,
  • measurements of multiple parameters,
  • harmonics and harmonic powers (estimating the direction of harmonics),
  • interharmonics.
