| Parameter | Description |
|---|---|
| Basic technical specifications | |
| Max measuring voltage | 5500 V DC |
| Nominal resistance values | 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ |
| Nominal value accuracy | ±1% |
| Safety and conditions for use | |
| Ingress protection | IP40 |
| Insulation type according to EN 61010-1 | double |
| Operating temperature | -5…+50°C | 41°F…104°F |
| Storage temperature | -30…+60°C | -4°F…140°F |
| Humidity | 60% |
| Other information | |
| Quality standard – development, design and production | ISO 9001 |
0
Login

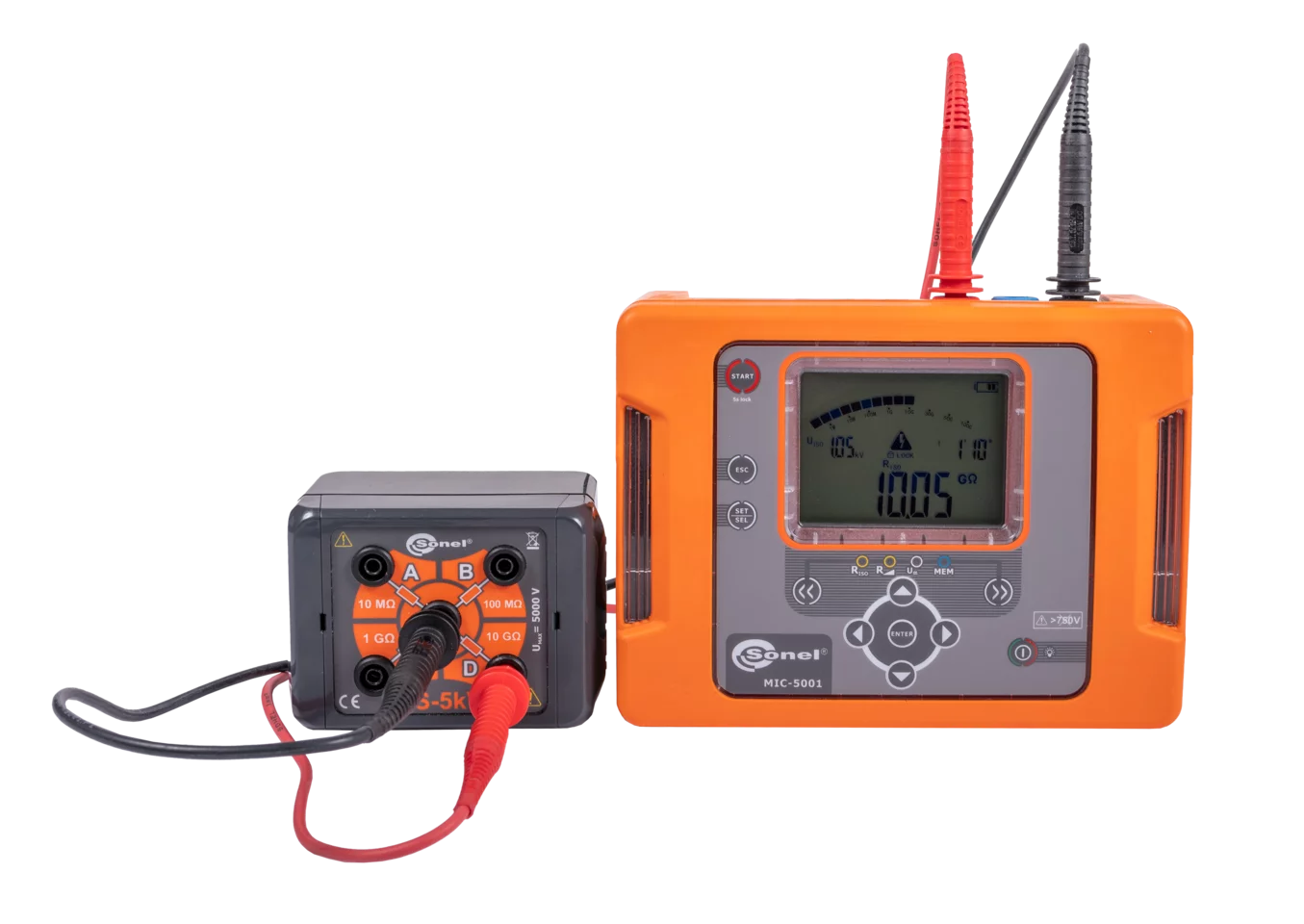

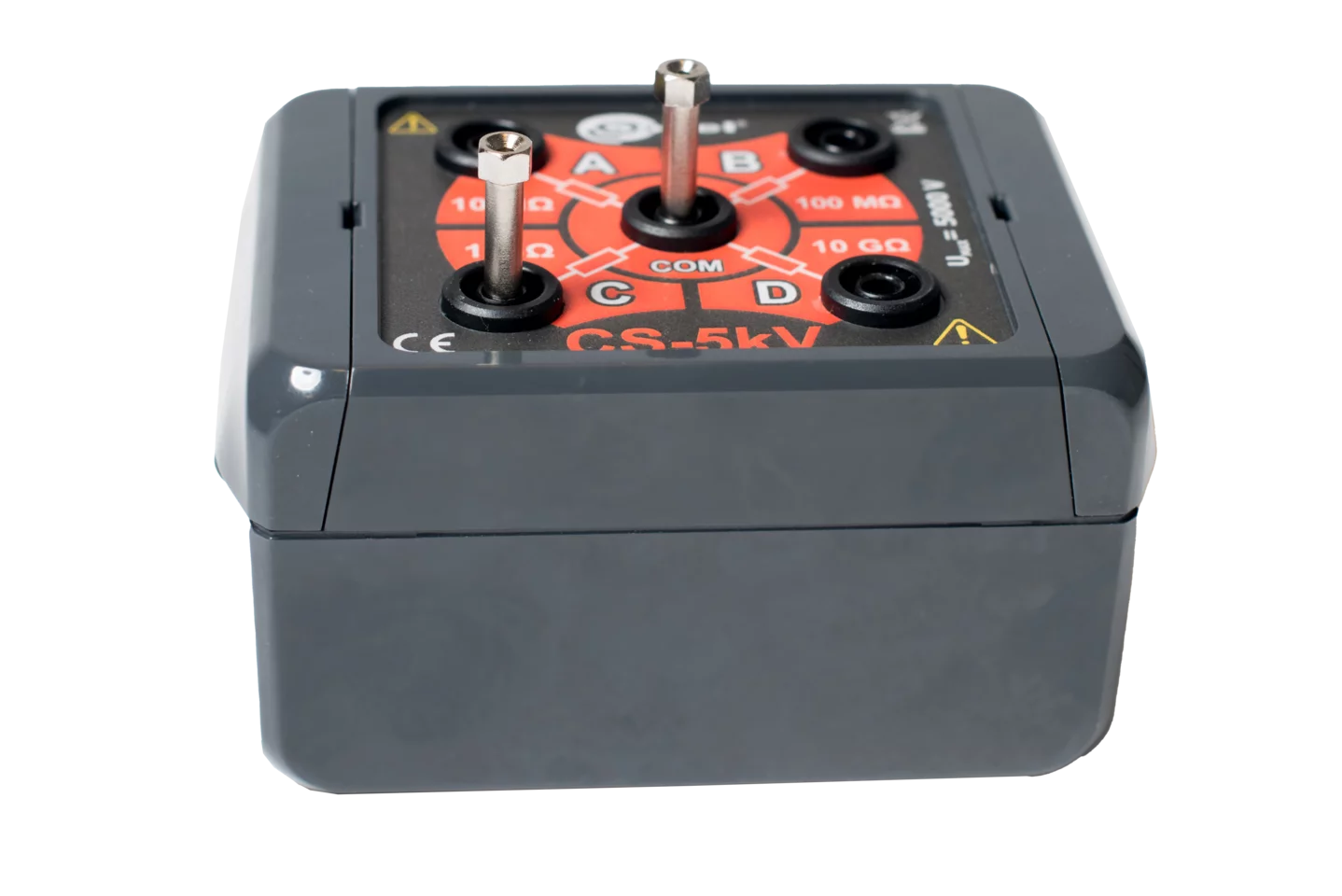

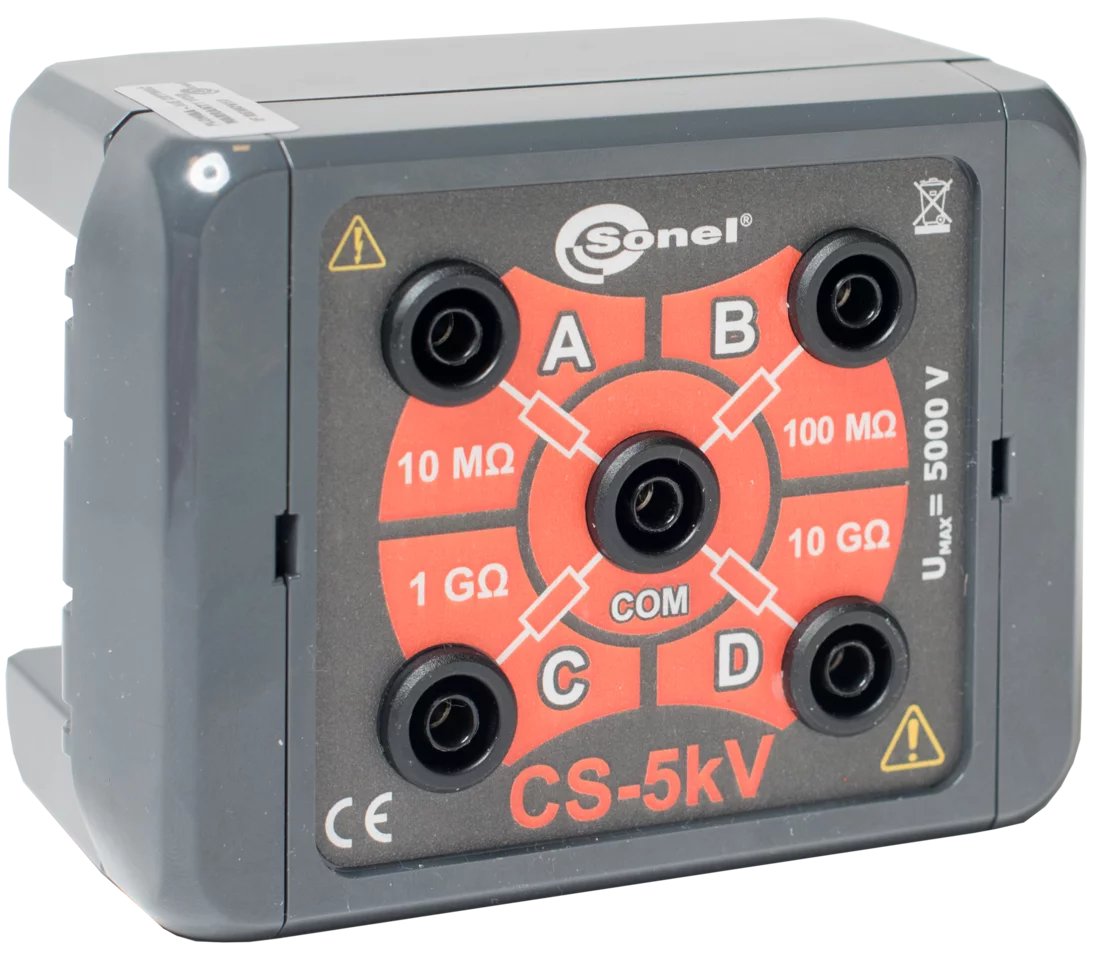

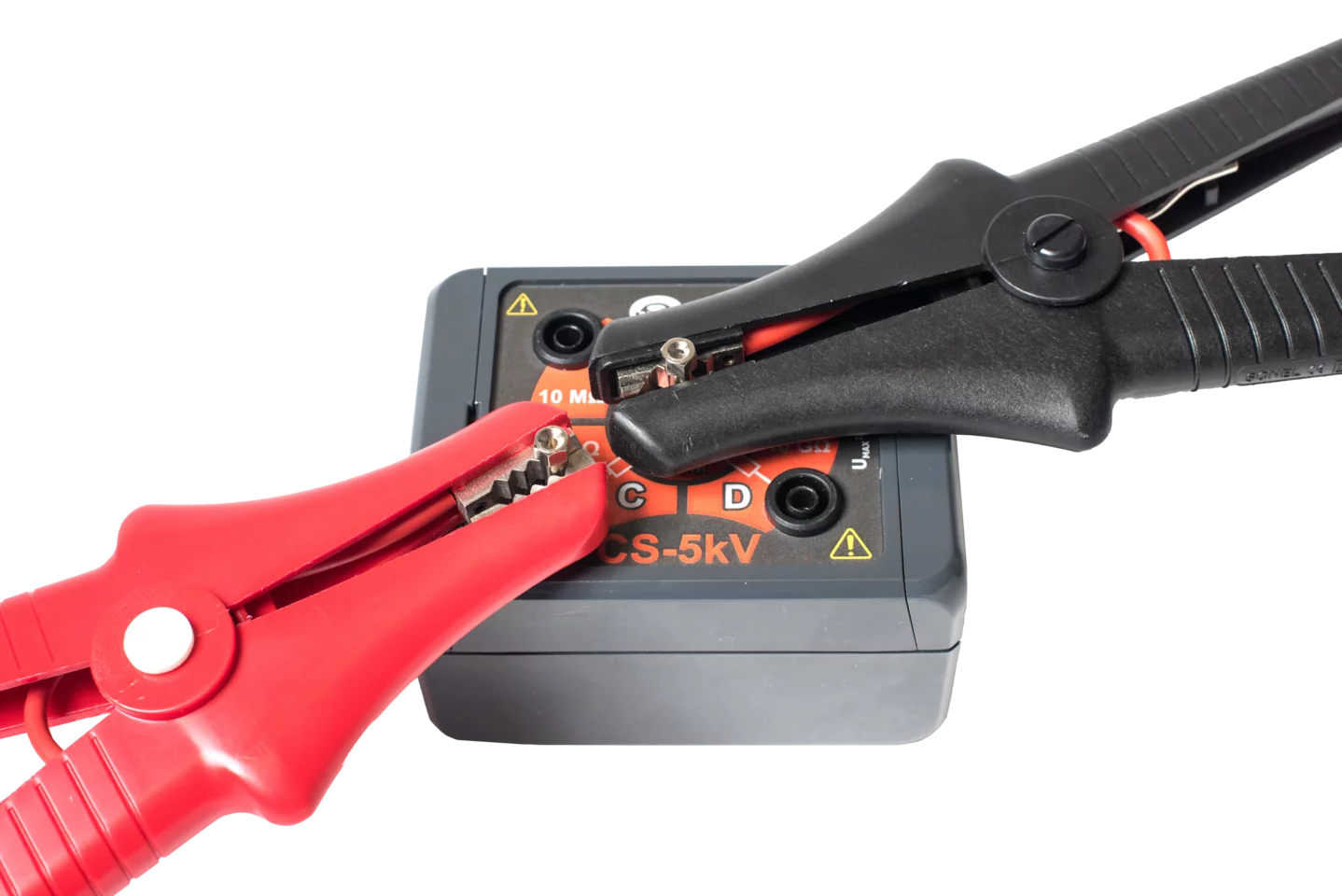

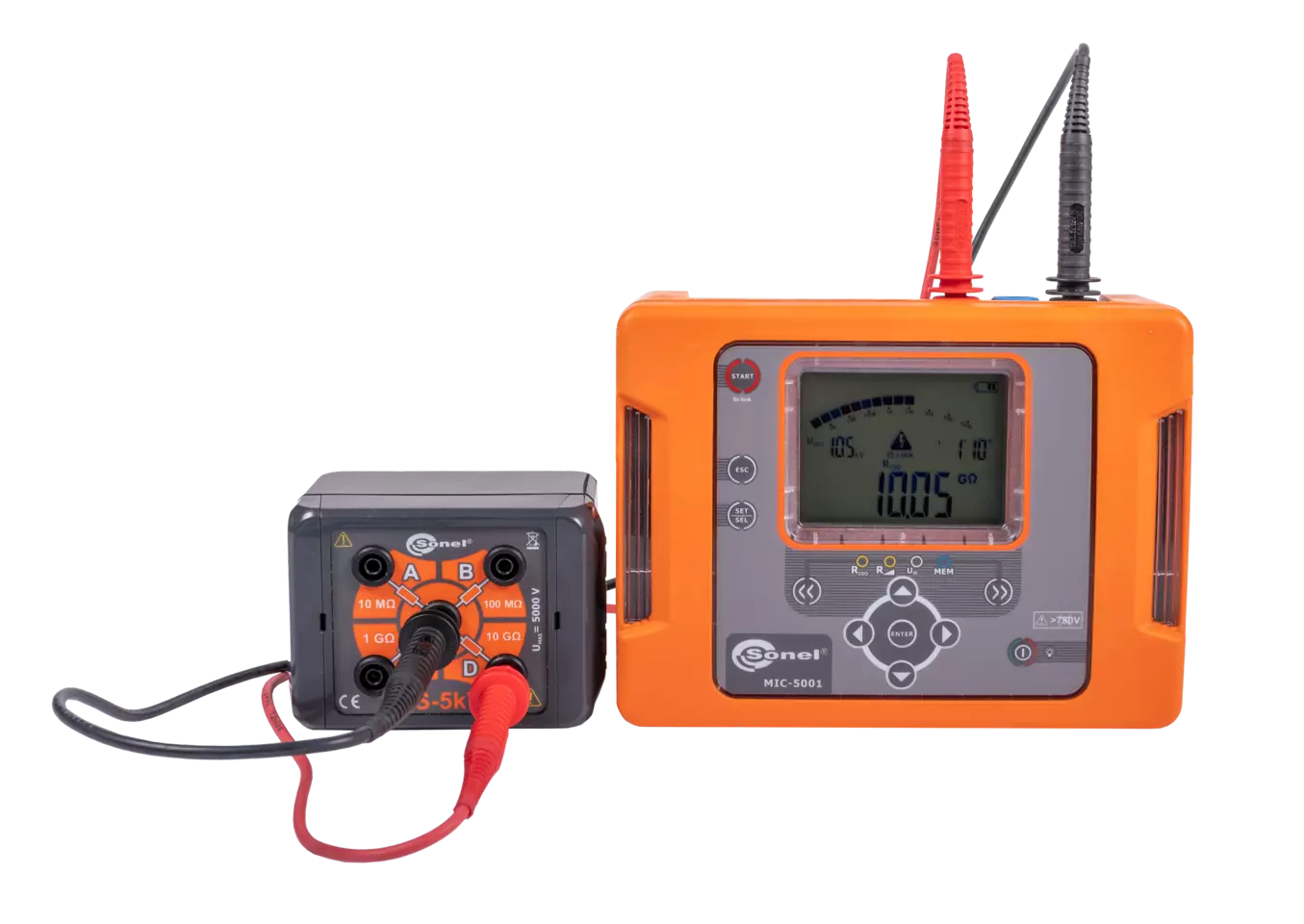

The calibration box has been designed to verify indications of insulation resistance meters. The use of high-quality resistors with a very high degree of accuracy makes the CS-5kV an ideal tool for cooperation with devices with a test voltage of up to 5 kV DC. The box enables the measurement of four resistance values and their combination. The device utilizes 4 mm banana plugs.
Features
- Nominal resistance values: 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ.
- Fast verification of the correctness of insulation tester indications.
- High accuracy reference resistors.
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.2 |
| Package weight (kg) | 0.3 |
| Package width (cm) | 12 |
| Package height (cm) | 7 |
| Package length (cm) | 24.5 |
Files to download
This product fits:
