LKN-720 KIT
Transmitter (3 pcs.)

Name: Transmitter (3 pcs.)
Brand: Sonel
SKU: S70-WMGBLKN720KIT
Price: 1670 USD
Availability: InStock

Index cat. WMGBLKN720KIT

ean 5907624006744

Ingress protection: IP 40

Measurement category: CAT III 300 V

1 670,00 $

Available

Delivery: up to 4 days

Inquiry for an offer

Description
Technical data

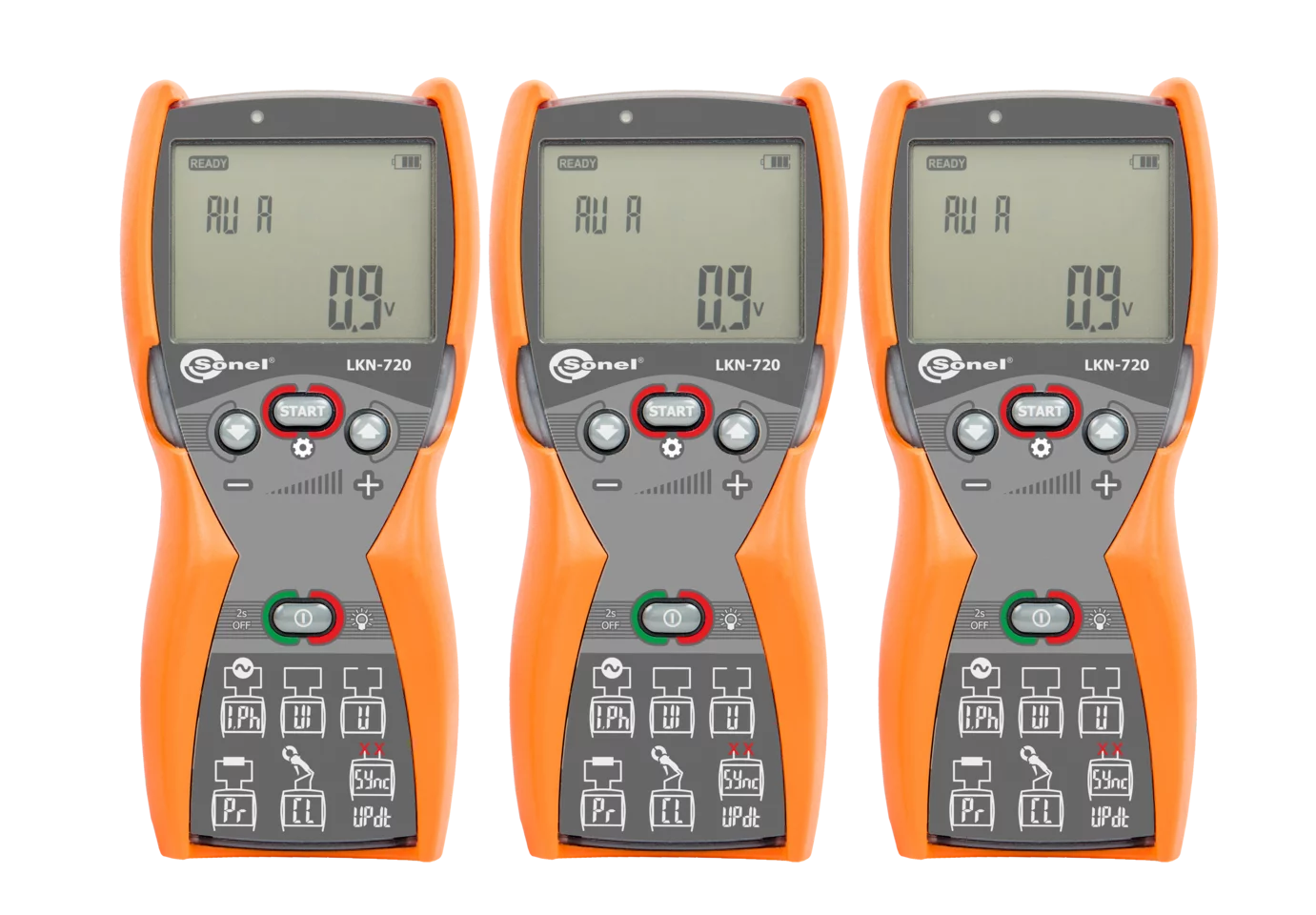

Set of 3 transmitters and accessories. Adapts LKZ-720 for 4-transmitter operation.

Special features

4 codes of the transmitted signal.
Transmission of information about the transmitter settings and battery charge level.
Measurement of voltage at the object to 500 V RMS.
Three levels of amplification.
Automatic or manual selection of operation modes.
Screen backlight for work in dark.

Application

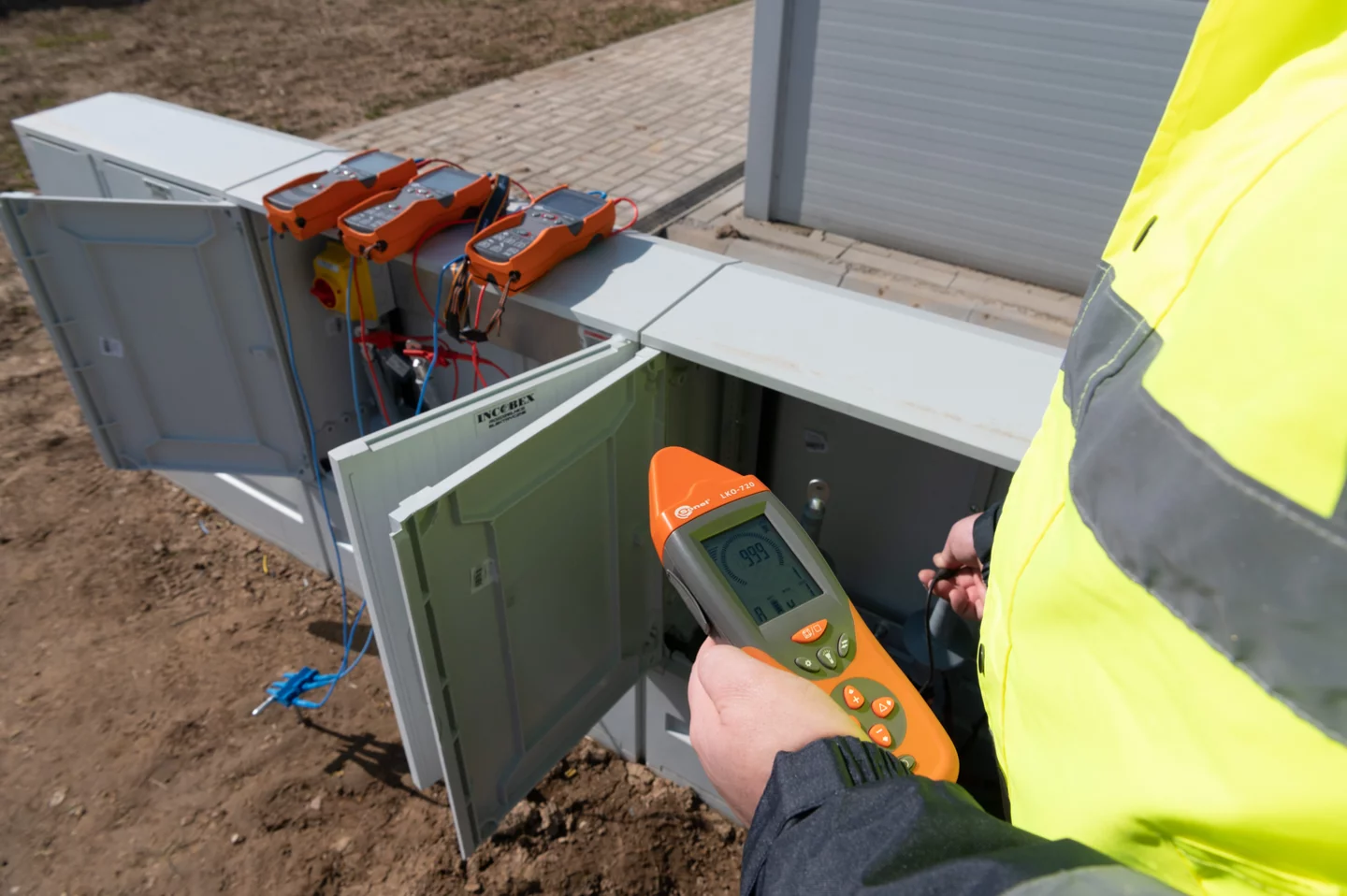

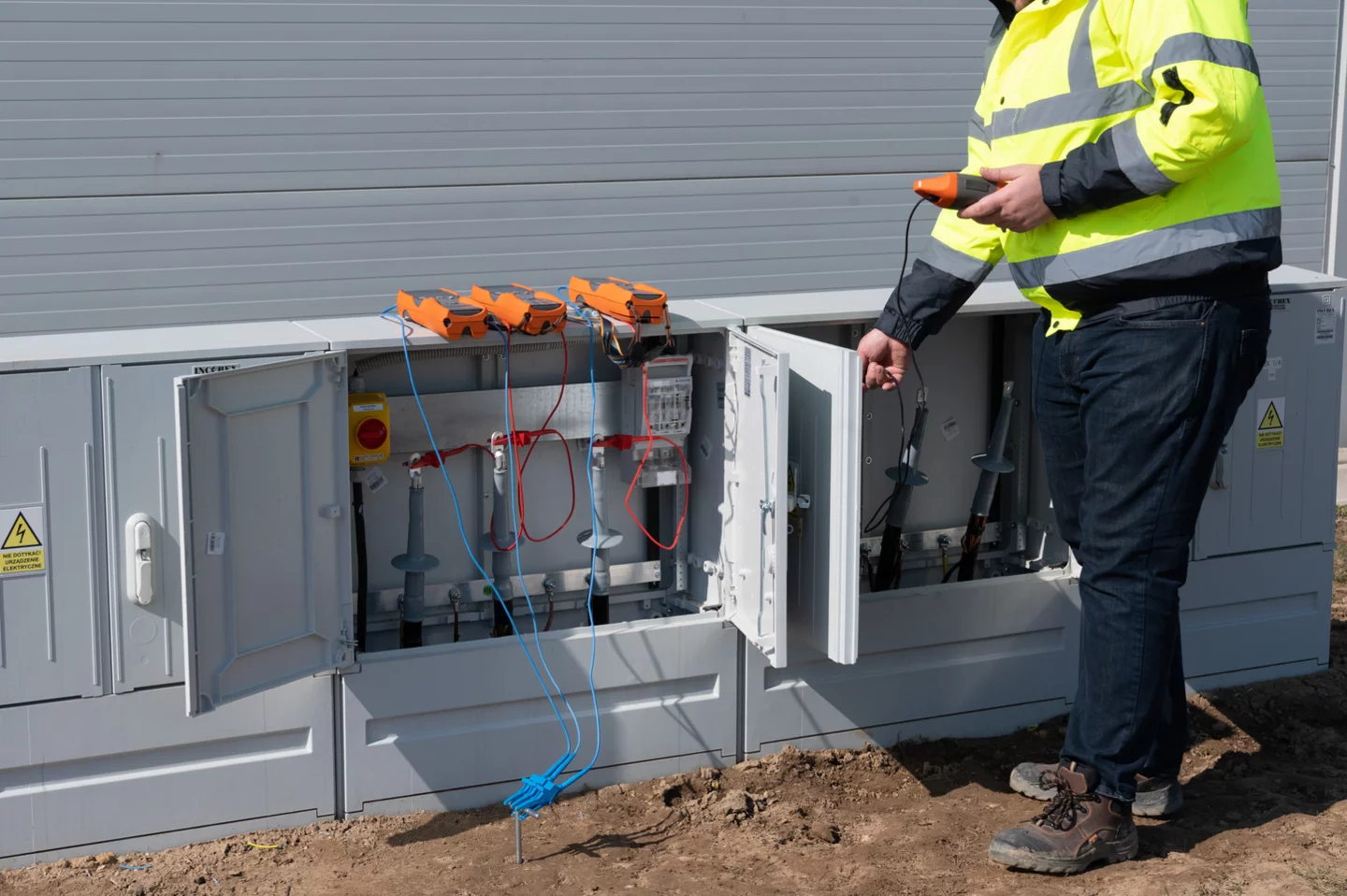

Locating power points and switches in buildings

Specially modulated and coded signal generated by the LKN-720 transmitter allows to locate and identify sockets and switches in energized and de-energized circuits.

Technical specification

Parameter	Description
Insulation type acc. to EN 61010-1	double
Measurement category acc. to EN 61010-1	III 600 V
Ingress protection rating acc. to EN 60529	IP67
Power supply	4 x AA alkaline batteries or 4 x Ni-MH rechargeable batteries
Maximum operating voltage	500 V RMS
Operating temperature	-10°C...+50°C \| 14°F...122°F

Weight and dimensions

Parameter	Value
Net weight (kg)	2
Package width (cm)	50
Package height (cm)	35
Package length (cm)	53
