| Parameter | Description |
|---|---|
| Insulation type acc. to EN 61010-1 | double |
| Measurement category acc. to EN 61010-1 | III 600 V |
| Ingress protection rating acc. to EN 60529 | IP67 |
| Power supply | 4 x AA alkaline batteries or 4 x Ni-MH rechargeable batteries |
| Maximum operating voltage | 500 V RMS |
| Operating temperature | -10°C...+50°C | 14°F...122°F |
0
Login

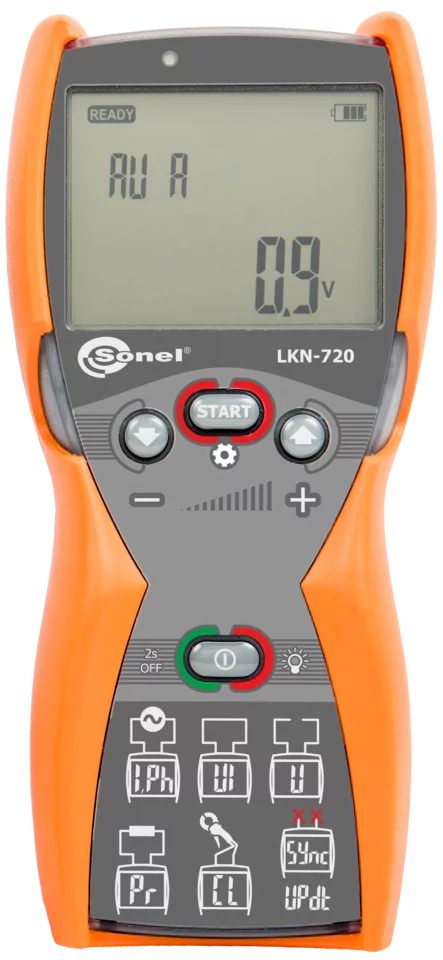

LKN-720 transmitter injects a locating signal into an underground object.
Special features
- 4 codes of the transmitted signal.
- Transmission of information about the transmitter settings and battery charge level.
- Measurement of voltage at the object to 500 V RMS.
- Three levels of amplification.
- Automatic or manual selection of operation modes.
- Screen backlight for work in dark.
Application
Locating power points and switches in buildings
Specially modulated and coded signal generated by the LKN-720 transmitter allows to locate and identify sockets and switches in energized and de-energized circuits.
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.7 |
| Package weight (kg) | 1.4 |
| Package width (cm) | 29 |
| Package height (cm) | 18 |
| Package length (cm) | 29 |
Accessories included with the meter
