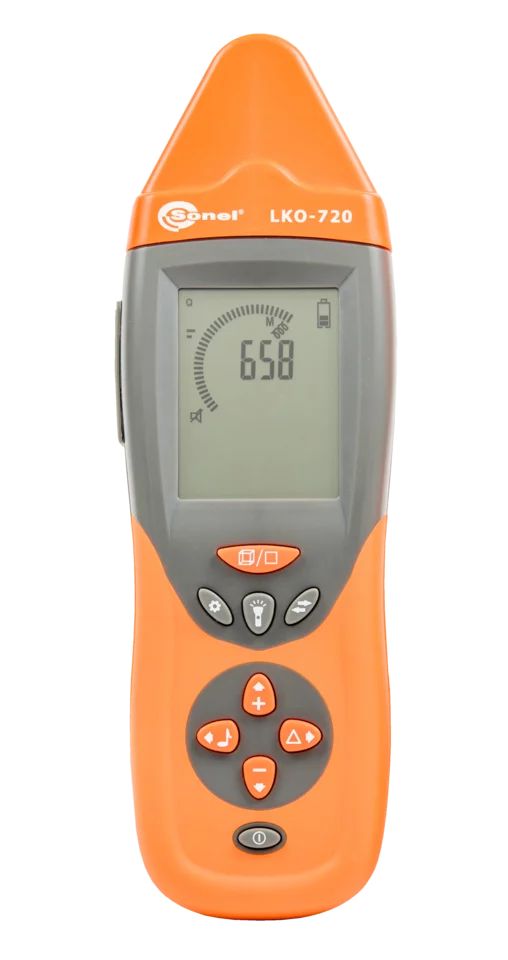

LKO-720

Receiver

Special features

• Receiver operation with max. 4 transmitters at the same time to locate interruptions or distinguish wires.
• Receiving status information from the LKN-720 transmitter.
• The function 3D - detecting the direction of current.
• A LED torch.
• Headphone socket.
• Software upgrade via USB.
• Screen backlight for work in dark.

Application

Detection and tracing cables in ceilings, walls and floors

In response to the needs of customers, the LKO-720 has a specially designed 3D antenna that raises the precision of the wire tracing. Determine direction of wires in concrete up to 5 cm will not be a problem now.

Identification of fuses on the distribution board

Thanks to the precise sensor in LKO-720 and additional contact and non-contact probes, identify of breakers and fuses now will be easily and time-saving.

Possibility to tracing in no access conductors

LKO-720 with C-8 clamp used in the current mode or in other mode forcing current flow, allows to uniquely identify wire or cable with no physical connection to it.

Non-contact detection of live cables

LKO-720 allows to precisely detect energized wires in air and concrete without additional probes.
