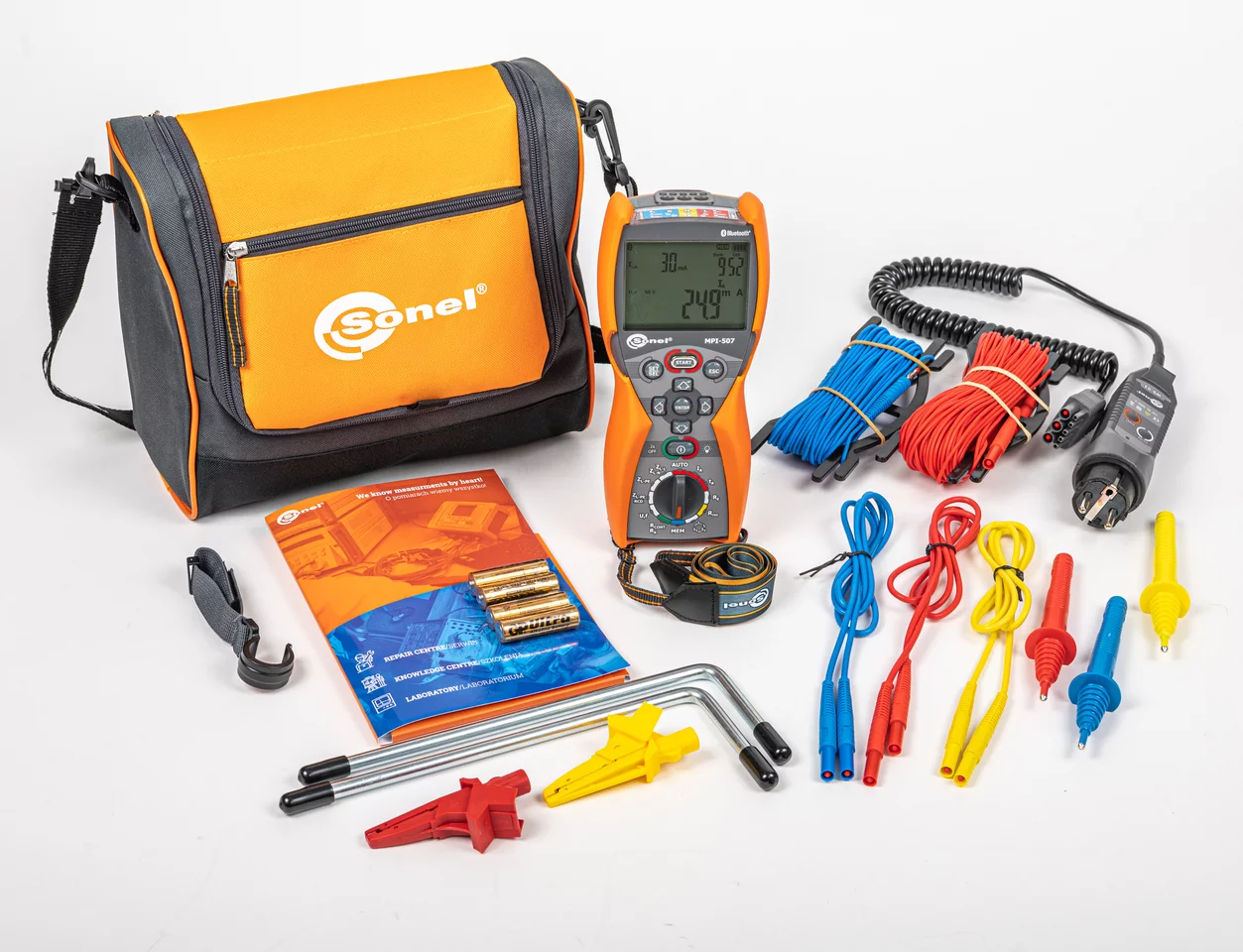

MPI-507

Multifunctional Electrical Installations Meter

Features

• Measurement of short circuit loop parameters
  • Measurement of short circuit loop impedance in networks with rated voltage: 220/380 V, 230 V/400 V, 240/415 V and frequency 45…65 Hz, operating voltage range: 180…460 V
  • Indication of short circuit loop resistance R and short circuit loop reactance X
  • Measurements of short circuit loop impedance with 15 mA current, without tripping the RCD circuit breaker
  • Maximum test current: 7.6 A (at 230 V), 13.3 A (at 400 V)
• Testing RCD breakers of AC, A types
  • Testing of prompt, short-delay and selective RCDs with rated current values 10, 15, 30, 100, 300, 500 mA
  • Measurement of I_A trip current and tripping time t_A for currents 0.5 I_Δn, 1 I_Δn, 2 I_Δn, 5 I_Δn
  • R_E and U_B measurement without RCD tripping
  • Extended AUTO function of RCD measurement, with the possibility of measuring Z_L-PE with low current
  • Measurement of I_A and t_A during one RCD tripping
• Earth resistance measurement
  • Measurement with 3-pole method​​​​​​​

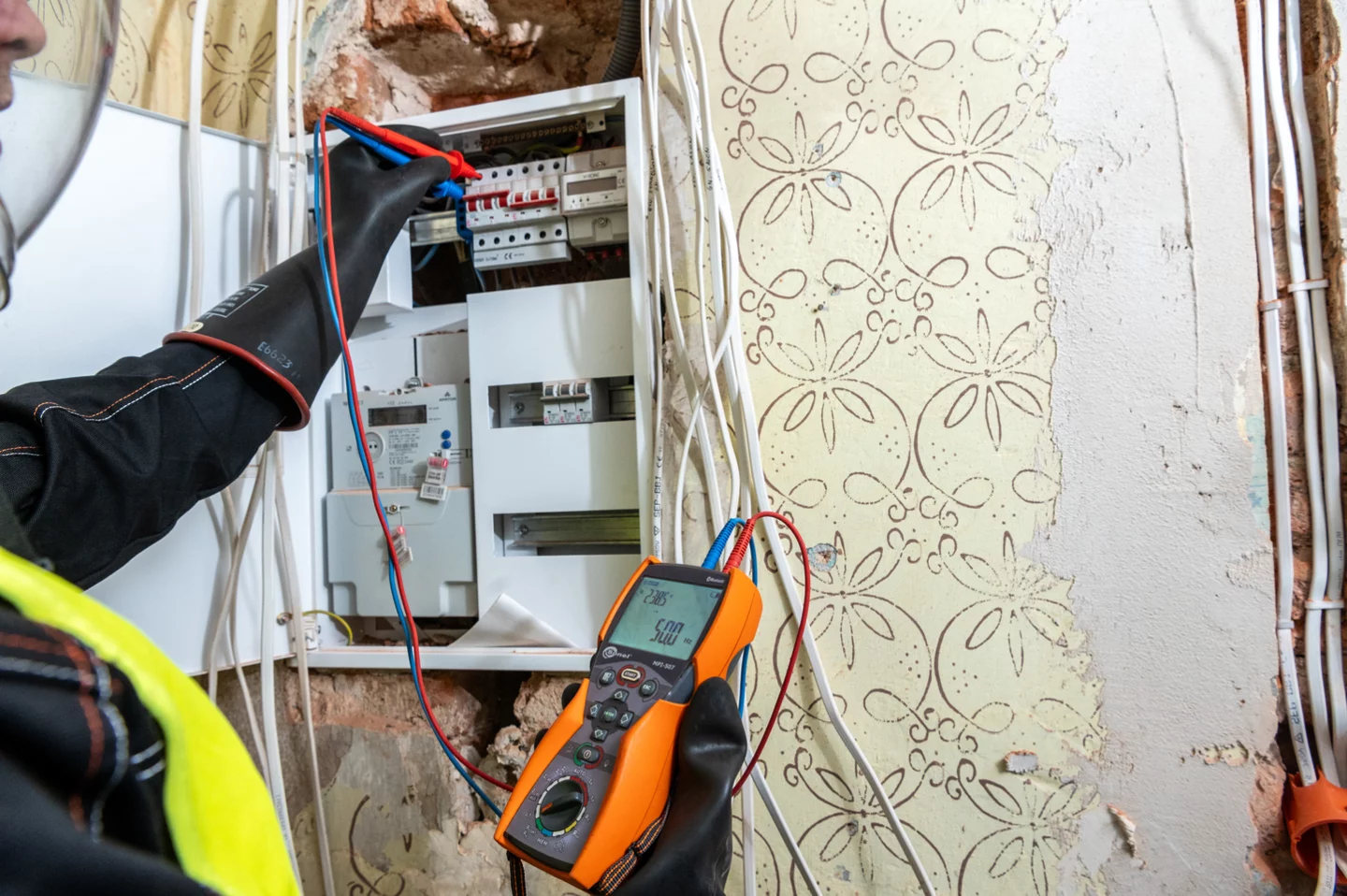

• Insulation resistance measurement
  • Test voltage 100 V, 250 V, 500 V
• Measurement of resistance of protective conductors and equipotential bondings
  • Measurement of protective connections continuity with a ±200 mA current in accordance with EN 61557-4
  • Autocalibration of test leads - any leads can be used
  • Low current resistance measurement with sound signaling
• Phase sequence indication

Additional functions

• Checking the correctness of PE connection using a contact electrode.
• Measurement of voltage (0 … 500 V) and network frequency.
• Memory of 990 results.
• Wireless data transmission to a computer.
• Backlit keypad.

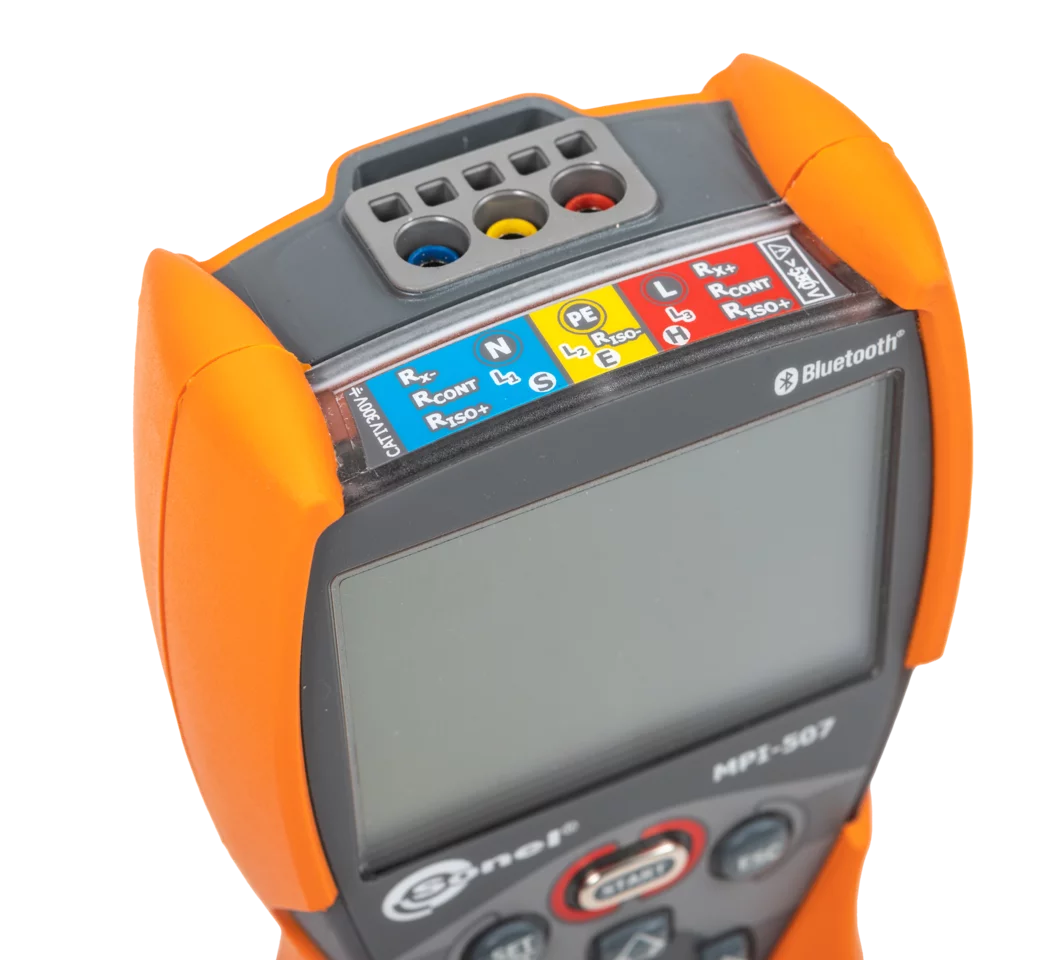

Simplicity and cutting edge technologies

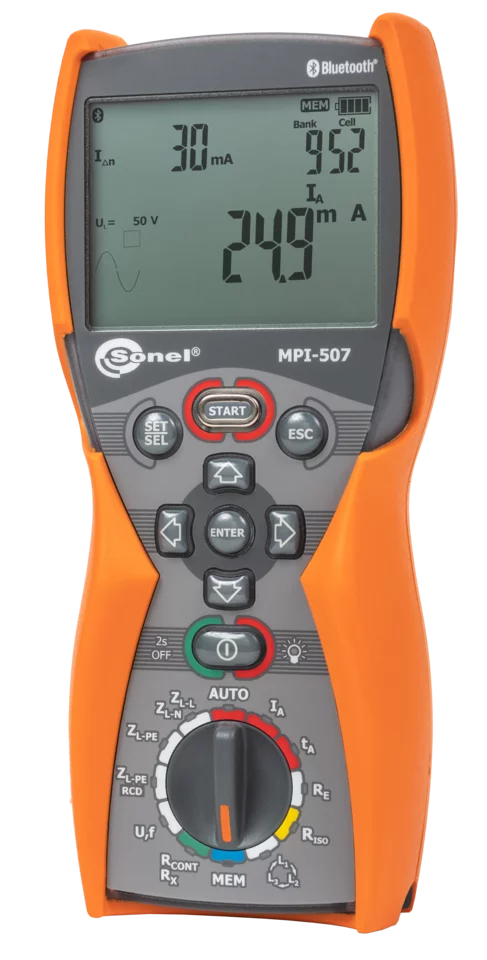

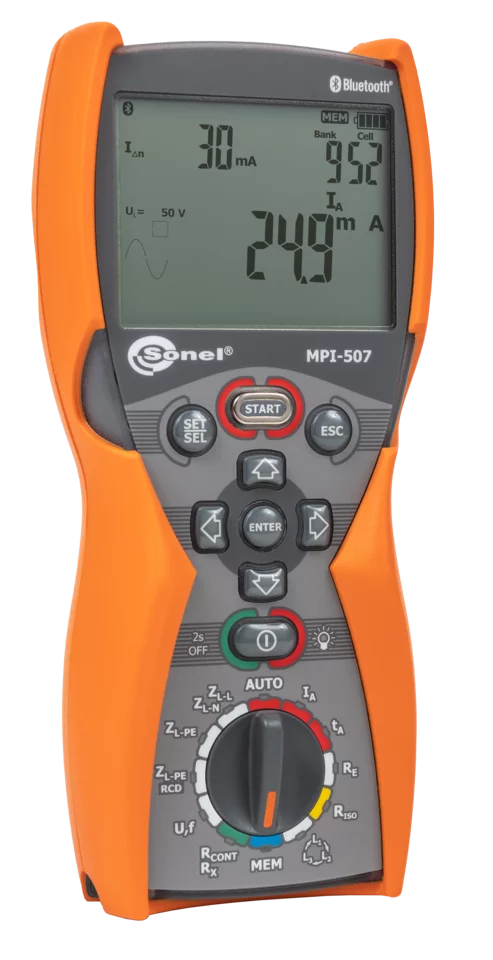

Probably the world's smallest meter with such a large number of measurement functions. The functions are selected with a rotary switch. Additional parameters are set with buttons located on the housing face. The settings are saved by the device even when the battery is completely discharged.

All buttons and the modular display have backlight, which significantly improves operation in low light. Large memory eliminates the need for taking notes during the measurements.

Inspection of electrical safety

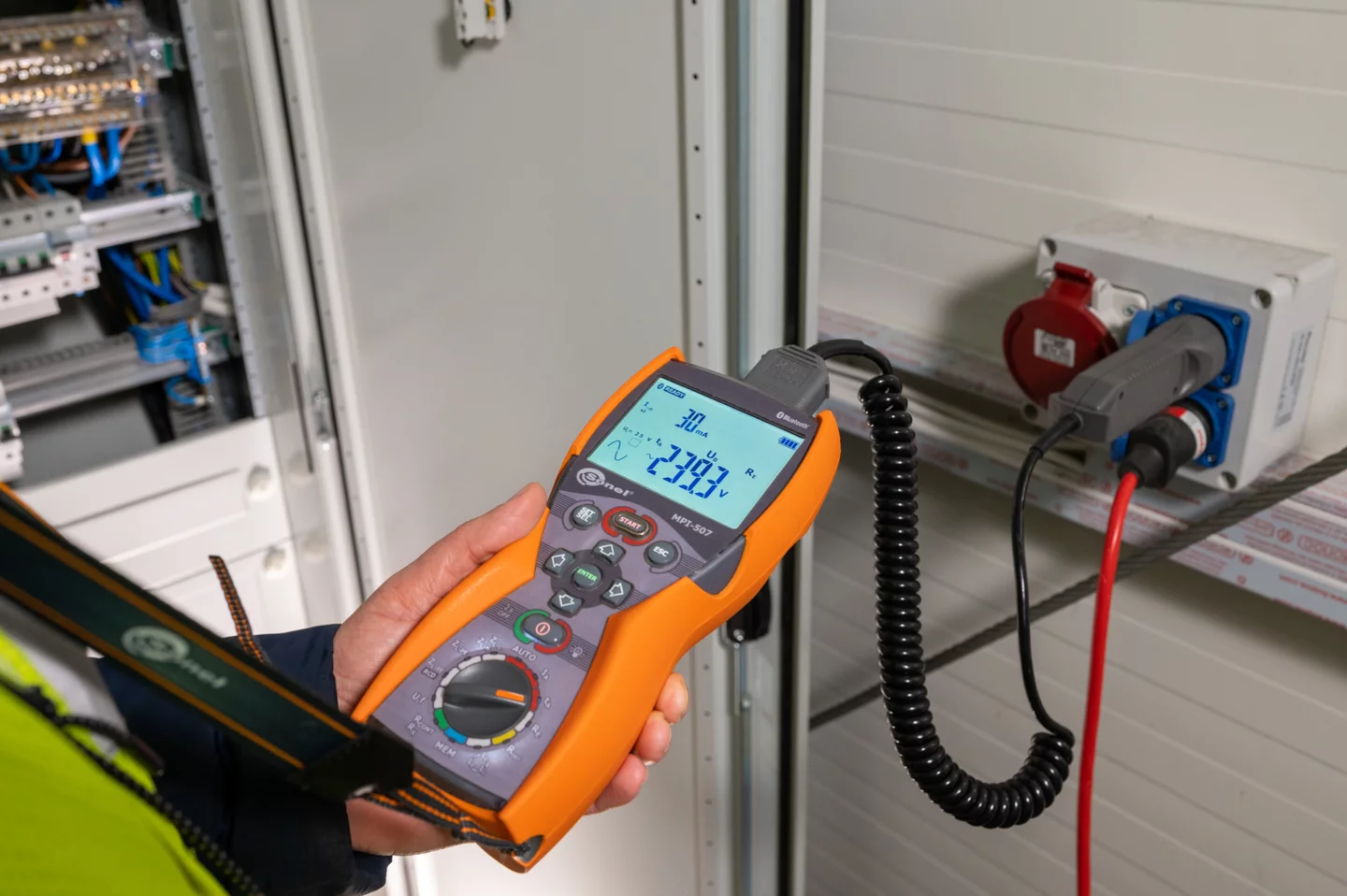

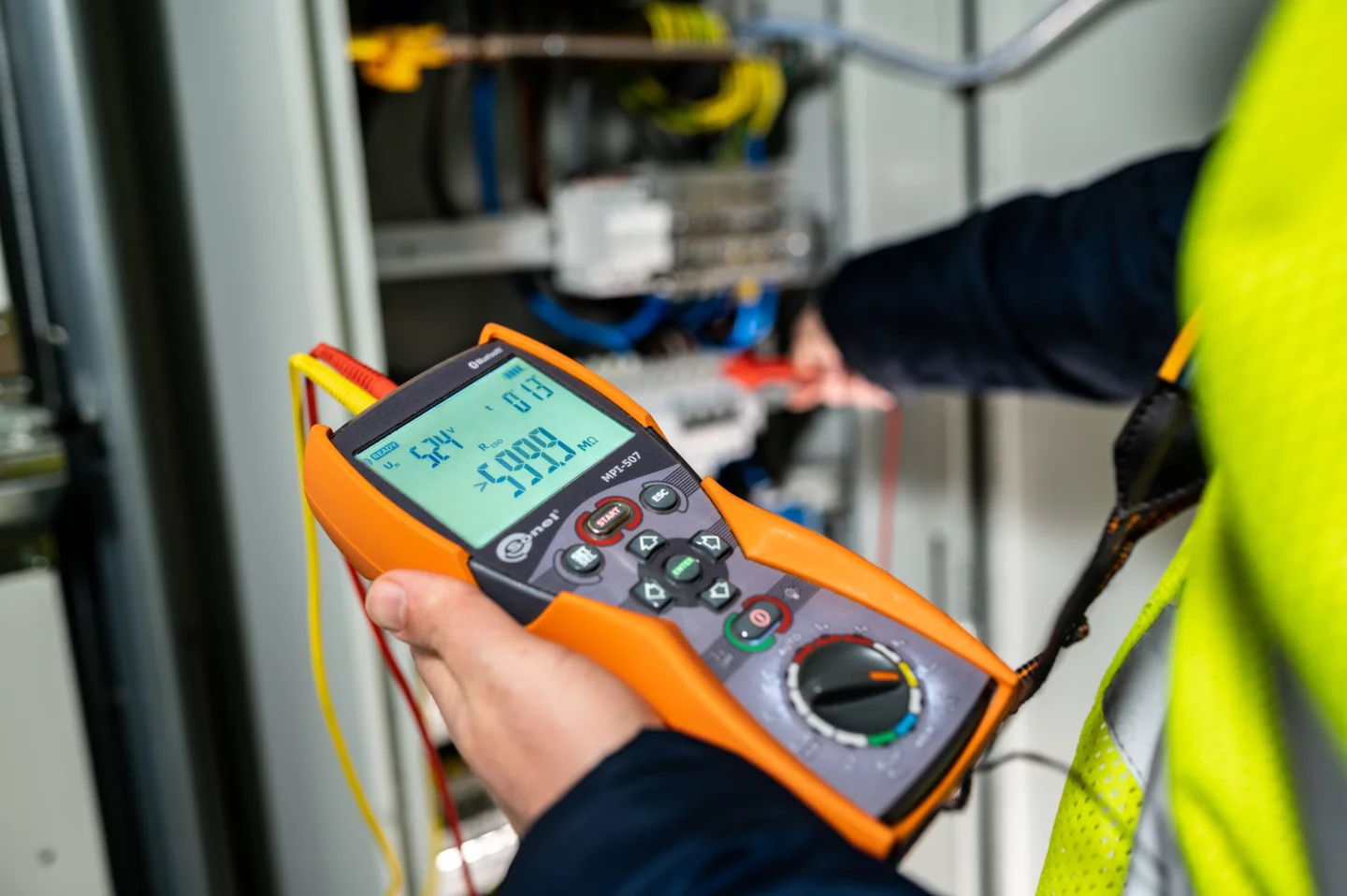

This device may be used to inspect safety of electrical systems in households and industrial facilities. Its main advantage is quick measurement (just a few seconds!) of fault loop impedance in circuits with RCD.

Measurements can be easily automated with:

• auto mode of residual current devices (RCD) tests,
• the WS adapter that can be used for testing systems via standard 230 V sockets

Earth resistance measurement

The device is ideal for measurements of earthing installations in residential buildings. It allows you to check the quality of the earthing system using the 3-pole method. Together with earth resistance result, the meter shows the interference voltage and the resistance of the auxiliary R_S and R_H probes.

Increased resistance to environmental conditions

The meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP67.

Communication and software

You can easily transfer measurement data to your computer via Bluetooth wireless communication. In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.
