MPI-540-PV
Multi-function meter of electrical system parameters

Name: Multi-function meter of electrical system parameters
Brand: Sonel
SKU: S70-WMUSMPI540PV
Price: 5194 USD
Availability: InStock

Index cat. WMUSMPI540PV

ean 5907624007437

Ingress protection: IP 51

Measurement category: CAT II 1000 V DC, CAT III 500 V, CAT IV 300 V

Data transmission: Bluetooth, USB, Wi-Fi

Display: touchscreen, graphic, color, backlit

5 194,00 $

In stock

Delivery: 24h

Inquiry for an offer

N-1

Transmitting clamp (Φ=52 mm, incl. 2-wire c...

526,58 $

Available

AGT-16P

Three-phase socket adapter 16 A (5P)

-32.77%

-29,25 $

89,25 $

60,00 $

Available

AGT-32P

Three-phase socket adapter 32 A (5P)

99,96 $

Available

AutoISO-1000C

Adapter for multi-core cables

351,65 $

Available

CS-1

Cable simulator

89,25 $

Available

Sonel Reports Plus

Software supports creation of documentation

261,00 $

In stock

Test lead 10 m 1 kV (banana plugs) red

48,20 $

Available

Test lead for N-1 clamp

58,91 $

Available

Test lead 20 m CAT III/1000V CAT IV/600V (b...

51,77 $

Available

Test lead 25 m for earth resistance measure...

62,48 $

Available

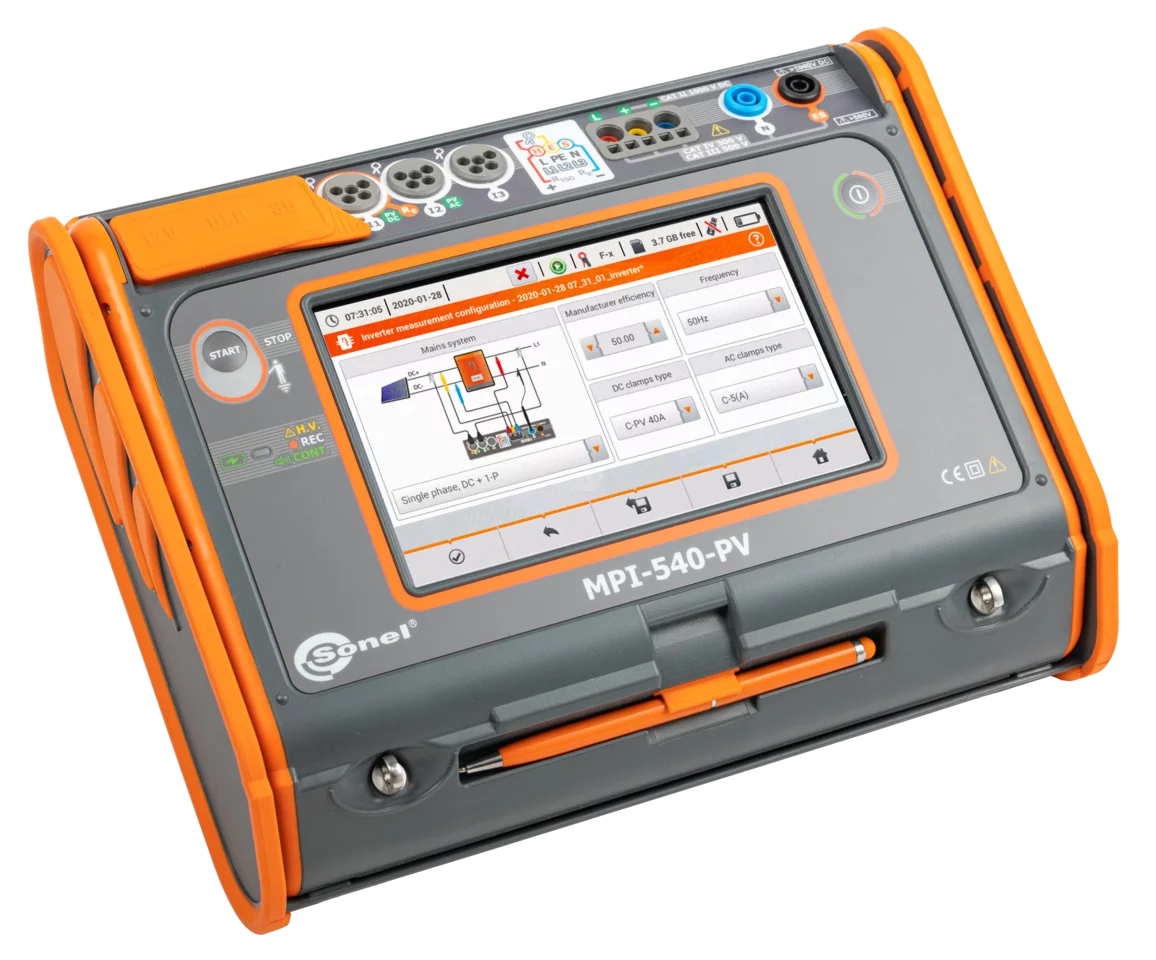

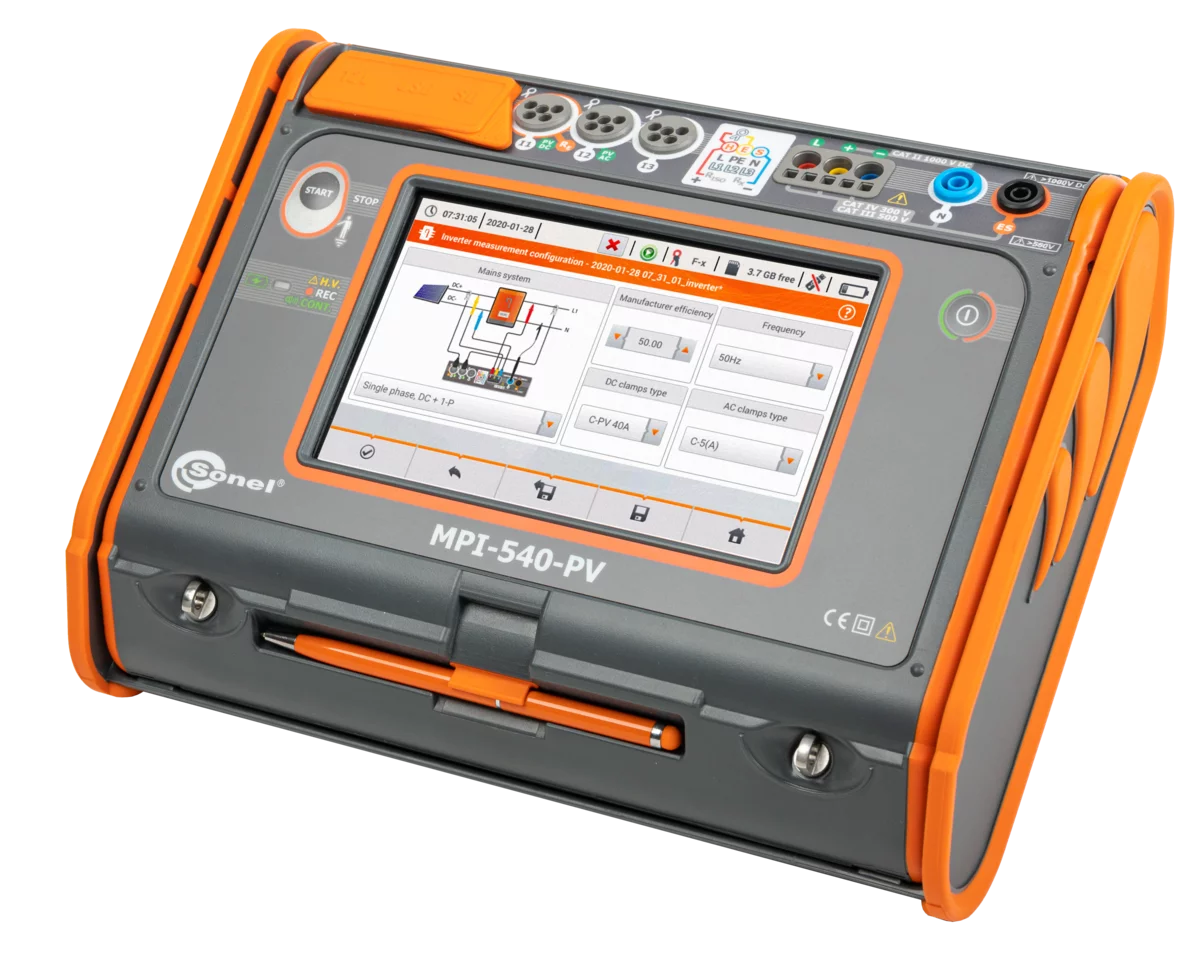

The multifunctional meter of electrical installation parameters Sonel MPI-540-PV is an advanced tool created in particular for measuring parameters of photovoltaic installations. With the use of one device, it is possible to carry out a whole range of tests on the DC and AC sides in accordance with the guidelines of the EN 62446 standard. In addition, the Sonel MPI-540-PV is also used to carry out all measurements to determine the safety condition of domestic as well as industrial electrical installations. The presented meter is a device with advanced capabilities, dedicated to specialists operating in the installation and electrical industry.

When measuring the parameters of a photovoltaic installation, the meter automatically recalculates the parameters to the STC (Standard Test Conditions) reference conditions. Measurements of voltages, currents and power on the AC and DC side of the inverter will verify its efficiency. After transferring the data stored in the meter's memory to the Sonel Reports PLUS program, it is possible to generate a report of photovoltaic installation parameters.

In order to automate measurements, the Sonel MPI-540-PV meter has been additionally enriched with the function of testing residual current devices in Auto mode. The instrument also has measurement sequences pre-programmed by the manufacturer (so-called autotests), which can be extended with own sequences if necessary. The capabilities and functionality of the meter will be additionally enhanced by a suitably selected additional accessory, e.g. the AutoISO-1000C adapter, which enables the automatic measurement of insulation resistance of 3-, 4- and 5-core cables.

Much more than a multifunctional meter

The largest touch screen on the market (7”) – remarkable ergonomics and ease of use
Removable microSD memory card – easy increase of memory capacity
Li-Ion battery – longer operation of the meter
Measurement of photovoltaic installations according to EN 62446 standard
Cooperation with solar radiation and temperature meter
Photovoltaic installation test report with Sonel Reports PLUS software
Three-phase power recorder – advanced power quality diagnostics
Real time display of network parameters – immediate evaluation of the test site conditions
Parameters measured in accordance to class S of EN 61000-4-30 standard – high accuracy of measurements
Energy cost calculator – quick evaluation of potential savings
Measurement of all parameters related to earthing and protection against electric shock – one device instead of several
Quick measurement of the fault loop impedance in networks secured with RCD without triggering (up to several seconds) – time saver
Auto measurements – the ability to perform automatic measurements in sequence – simplified measurements
Fast path from measurements to report – time saver

Features

The meter has above-average functionality. It combines the measuring capabilities of several devices, while ensuring equally good accuracy.

The MPI-540-PV instrument can measure photovoltaic installations in accordance with the EN 62446 standard:
- continuity of protective and equipotential bondings,
- earth resistance,
- insulation resistance on the DC side,
- open circuit voltage U_OC,
- short circuit current I_SC,
- work currents and powers on both DC and AC side,
- inverter efficiency.
MPI-540-PV can record 50/60 Hz power quality parameters in accordance to S class of EN 61000-4-30:
- voltage L1, L2, L3, – average values in the range up to 500 V,
- L1, L2, L3 currents, – average values, current measurement in the range up to 3 kA (depending on the current probes used),
- frequency in the range of 40 Hz – 70 Hz, » active (P), reactive (Q) and apparent (S) power,
- power factor (PF), cosφ, tanφ,
- harmonics (up to 40th for voltage and current),
- total harmonic distortion (THD) for current and voltage,
- recording of events for current and voltage,
- energy flow – 4 quadrants.
MPI-540-PV can be used for all measurements for commissioning of electrical installations in accordance with applicable regulations:
- short circuit loop impedance (also in circuits secured with RCDs),
- RCD parameters,
- insulation resistance,
- earth resistance (4 measurement methods + soil resistivity measurement),
- continuity of protective and equipotential bondings,
- light intensity measurement,
- phase sequence test,
- motor rotation direction test

Automatic installation safety test

MPI-540 / MPI-540-PV allow safety control of residential, commercial and industrial electrical installations. Measurements can be easily automated with:

auto mode of residual current devices (RCD) tests,
auto measurements – freely configurable measuring sequences,
AutoISO-1000C adapter for automatic insulation resistance test of 3-, 4- and 5-conductor cables, without switching.

Photovoltaics under supervision

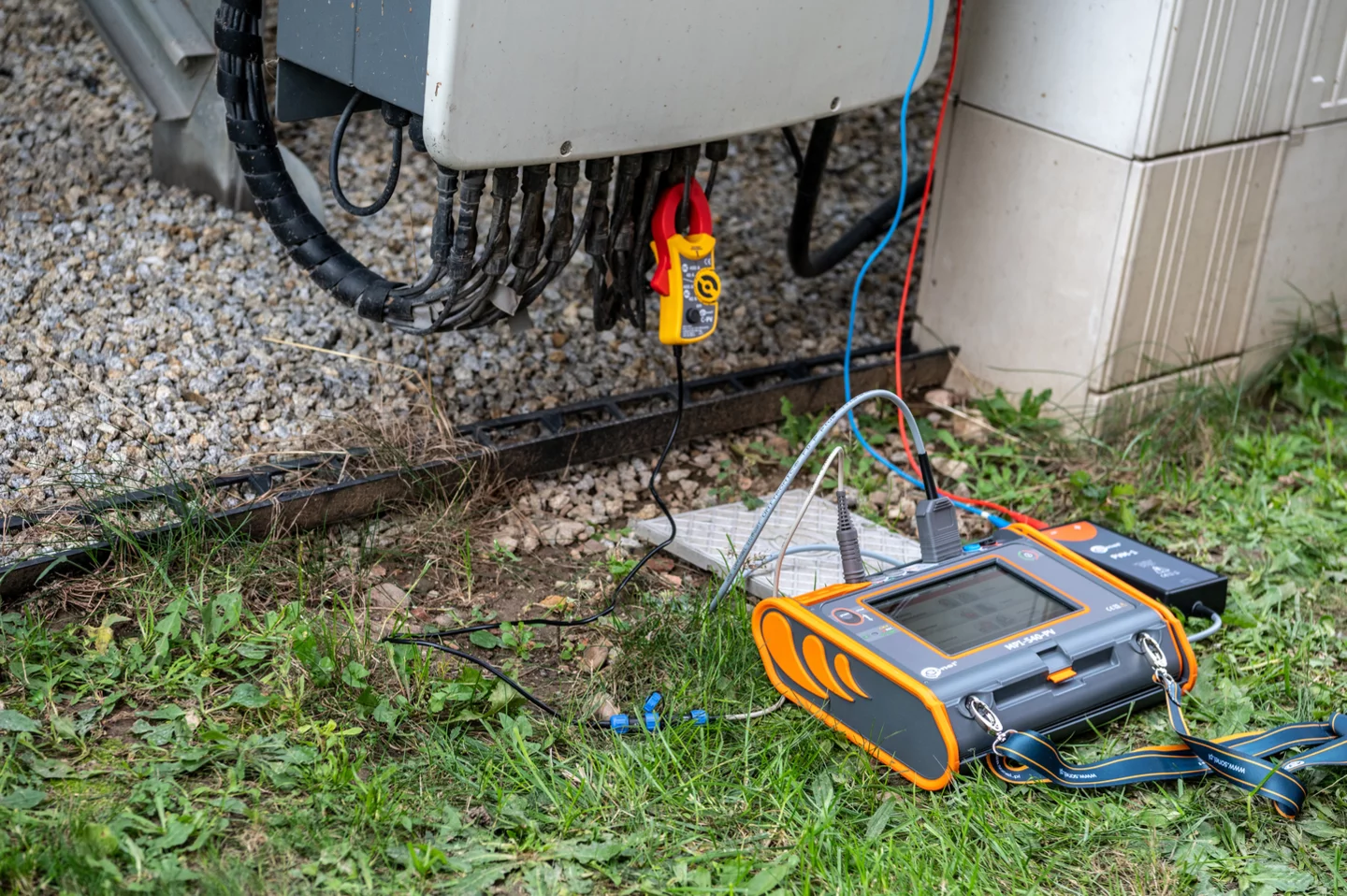

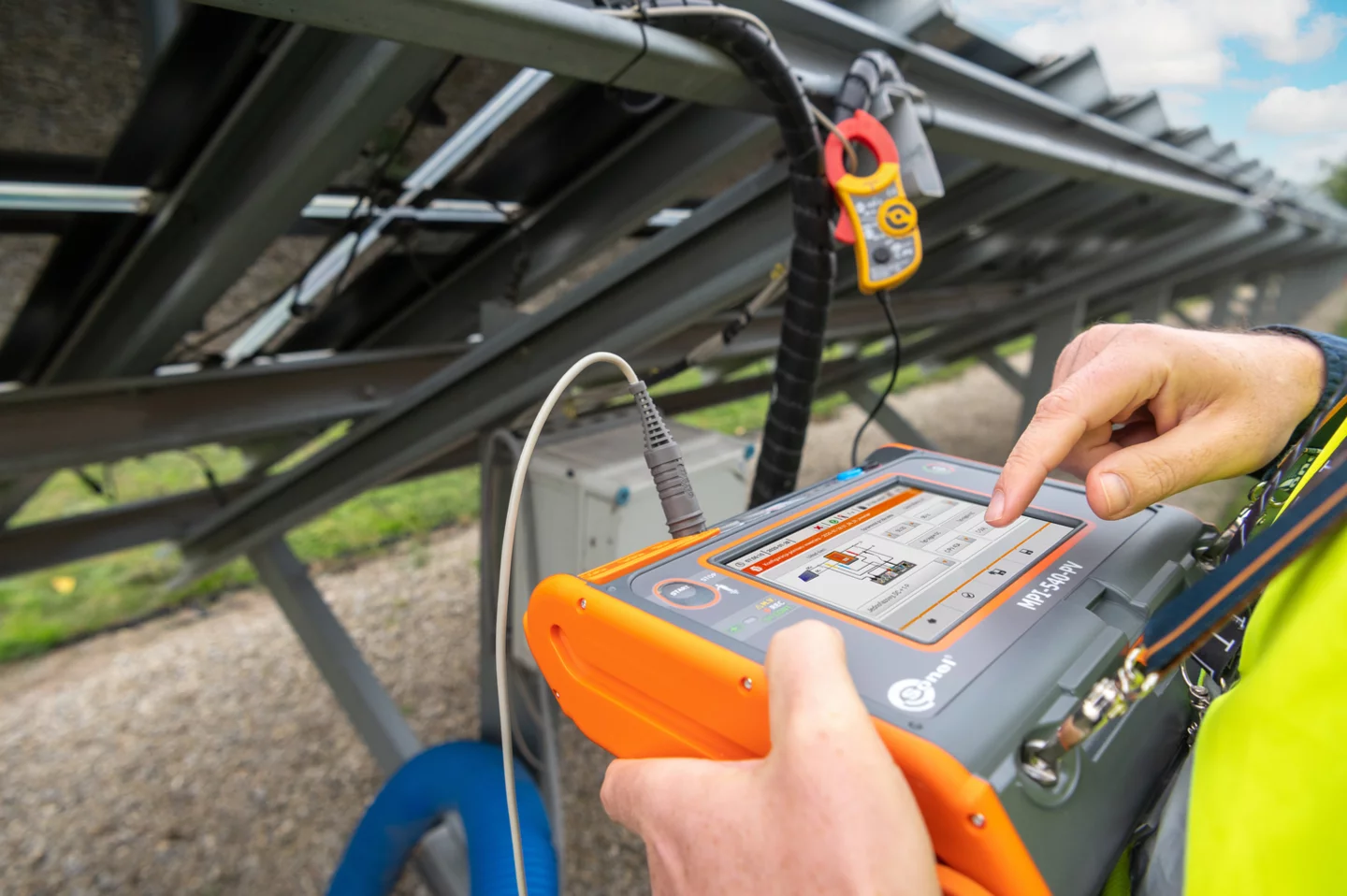

MPI-540-PV is an extremely universal meter, designed in particular for testing photovoltaic installations. The device allows a complete set of tests on the DC and AC side – in accordance with the guidelines of EN 62446 standard.

Measuring parameters related to the photovoltaic installation, the instrument will automatically convert them to the STC (Standard Test Conditions) reference conditions. Measurements of voltage, current and power on the AC and DC side of the inverter allow to verify its efficiency. Sonel Reports PLUS software enables creating PV installation test report with measurement results saved meter’s in memory.

Three-phase power quality recorder

The device has a three-phase power quality recorder with the LIVE mode view and the possibility to register electrical network parameters such as voltage, current, power, harmonics and THD. The meter enables reading of selected parameters and their graphic presentation on the screen in real time. These parameters are measured and displayed concurrently with the recording on the memory card. In the LIVE mode, the user can see:

voltage and current waveforms (oscilloscope),
voltage and current timeplots,
a phasor graph,
display of multiple parameters in tabular form,
spectrum graph of current and voltage harmonics.

Ease of reading

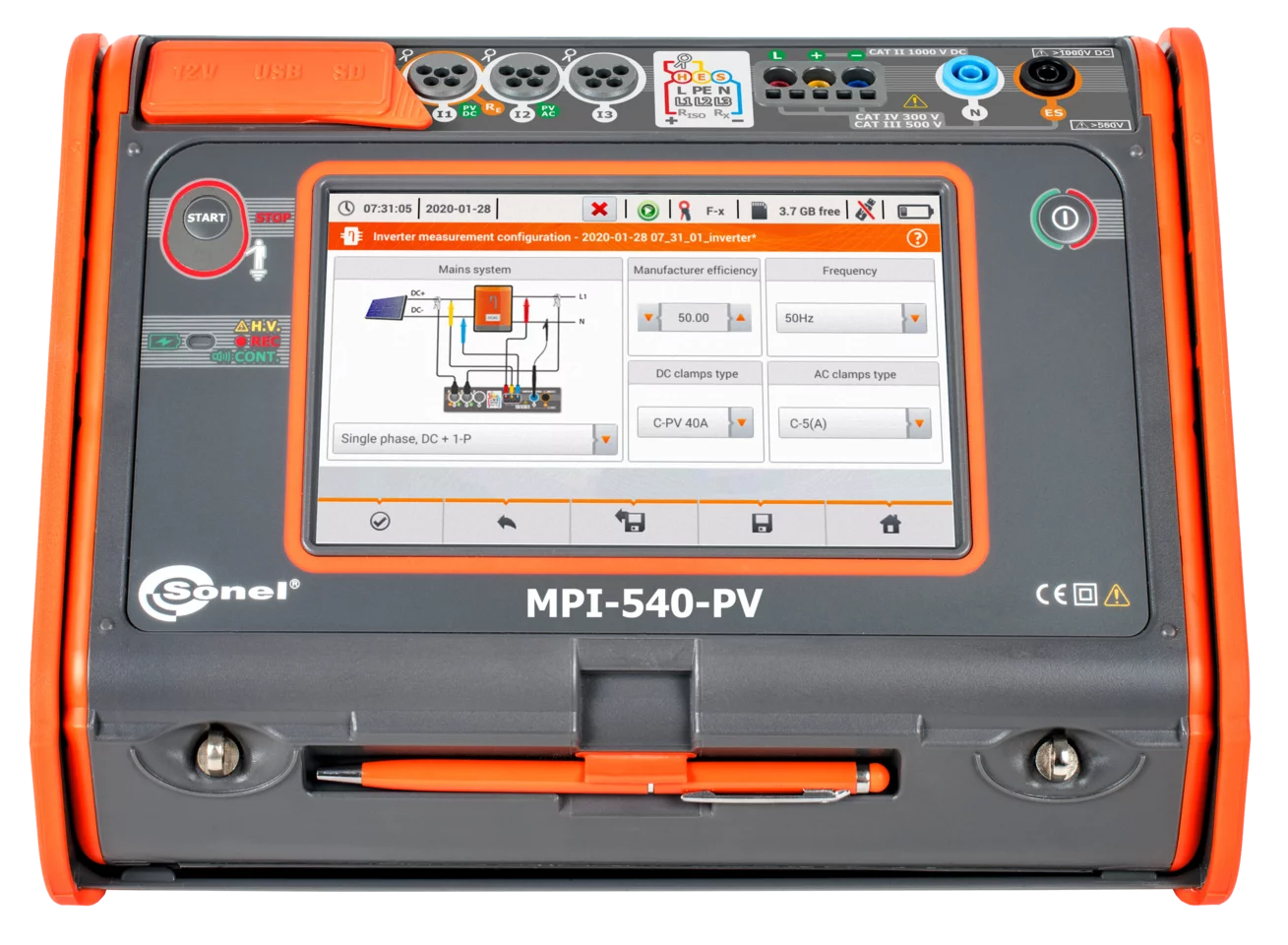

The device is equipped with a color TFT LCD touch screen with a resolution of 800x480 pixels and a diagonal of 7”, which allows for convenient operation and easy reading of parameters and plotted waveforms. This screen size enables displaying more information, available at any time of use. The interface is visible in all conditions – also thanks to the appropriate size of displayed symbols. Included stylus allows to work also with dielectric gloves.

Built-in help system

The device has built-in help screens with measurement diagrams. Thanks to this you can easily and quickly check and make sure how to connect to a given system depending on the type of performed measurement.

Increased resistance to environmental conditions

The MPI-540-PV meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP51. It is resistant to mechanical damage, and a special design allows you to easily protect the touch screen by shielding using the cover of the meter. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in different positions.

Communication and software

A very strong feature of the device is the multitude of communication interfaces and cooperation with external software. You can easily transfer measurement data to your computer via USB port, removable SD memory card, or wireless communication (Bluetooth*, Wi-Fi ). In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software. The specialized, free Sonel Analysis software is used to read and analyze data from the power quality recorder.

Specifications – electrical installation parameters

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Fault loop impedance
Fault loop Z_L-PE, Z_L-N, Z_L-L	0.13 Ω…1999.9 Ω acc. to IEC 61557	0.00 Ω…1999 Ω	from 0.001 Ω	±(5% m.v. + 30 digits)
Fault loop Z_L-PE in RCD mode	from 0.50 Ω…1999 Ω acc. to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(6% m.v. + 5 digits)
Measurements of RCD parameters
RCD tripping test and measurement of tripping time t_A measuring current 0.5 I_Δn, 1 I_Δn, 2 I_Δn, 5 I_Δn
general and short-time delay RCD	0 ms…300 ms	0 ms…300 ms	1 ms	from ±(2% m.v. + 2 digits)
selective RCD	0 ms…500 ms	0 ms…500 ms	1 ms	from ±(2% m.v. + 2 digits)
Measurement of RCD tripping current I_A measuring current 0 0.2 I_Δn…2.0 I_Δn
for sinusoidal residual current (AC type)	3.3 mA…1000 mA	3.3 mA…1000 mA	from 0.1 mA	±5% I_Δn
for unidirectional residual current and unidirectional with the 6 mA DC bias (type A)	3.5 mA…700 mA	3.5 mA…700 mA	from 0.1 mA	±10% I_Δn
for direct residual current (type B))	2.0 mA…1000 mA	2.0 mA…1000 mA	from 0.1 mA	±10% I_Δn
Earth resistance
3- and 4-pole method	from 0.50 Ω…1.99 kΩ acc. to IEC 61557-5	0.00 Ω…1,99 kΩ	from 0.01 Ω	from ±(2% m.v. + 3 digits)
3-pole + clamp method	0.00 Ω…1.99 kΩ	0.00 Ω…1.99 kΩ	from 0.01 Ω	from ±(2% m.v. + 4 digits)
2-clamp method	0.00 Ω…99.9 kΩ	0.00 Ω…99.9 kΩ	from 0.01 Ω	from ±(10% m.v. + 4 digits)
Resistance-to-earth	0.0 Ω m…99.9 kΩm	0.0 Ωm…99.9 kΩm	from 0.1 Ωm	Depending on accuracy of R_E measurement
Insulation resistance
Measuring voltage 50 V	50 kΩ…250 MΩ acc. to IEC 61557-2	0 kΩ…250 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 100 V	100 kΩ…500 MΩ acc. to IEC 61557-2	0 kΩ…500 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 250 V	250 kΩ…999 MΩ acc. to IEC 61557-2	0 kΩ…999 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 500 V	500 kΩ…2.00 GΩ acc. to IEC 61557-2	0 kΩ…2.00 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 1000 V	1000 kΩ…4.99 GΩ acc. to IEC 61557-2	0 kΩ…9.99 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Resistance of protective conductors and equipotential bondings
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current	0.12 Ω…400 Ω acc. to IEC 61557-4	0.00 Ω…400 Ω	from 0.01 Ω	±(2% m.v. + 3 digits)
Measurement of resistance with low current	0.0 Ω…1999 Ω	0.0 Ω…1999 Ω	from 0.1 Ω	±(3% m.v. + 3 digits)
Light intensity
Measurement in luxes (lx)	0 lx…399.9 klx	0 lx…399.9 klx	from 0.001 lx	from ±(2% m.v. + 5 digits)
Measurement in feet-candles (fc)	0 fc…39.99 kfc	0 fc…39.99 kfc	from 0.001 fc	from ±(2% m.v. + 5 digits)
Phase sequence indication	in the same direction (correct), opposite direction (incorrect), U_L-L voltage: 95 V…500 V (45 Hz…65 Hz)

“m.v.” - measured value

Specifications – 3-phase power quality recorder

The device is designed to work with mains:

with nominal frequency 50/60 Hz
with nominal voltage: 64/110 V, 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 254/440 V, 290/500 V
DC networks

Supported systems:

single-phase
split-phase with common N
three-phase – WYE with and without N conductor
three-phase – Delta

Parameter	Measuring range	Max. resolution	Accuracy
Alternating voltage (TRMS)	0.0…500 V	0.01% U_nom	±0,5% U_nom
Alternating current (TRMS)	depending on clamp*	0.01% I_nom	±2% m.v. if m.v. ≥ 10% I_nom, ±2% I_nom if m.v. < 10% I_nom, (error does not account for clamp error)
Frequency	40.00…70.00 Hz	0.01 Hz	±0.05 Hz
Active, reactive, apparent and distortion power	depending on configuration (transducers, clamps)	4 significant digits	depending on configuration (transducers, clamps)
Active, reactive and apparent energy	depending on configuration (transducers, clamps)	4 significant digits	as power error
cosφ and power factor (PF)	0.00…1.00	0.01	±0.03
Harmonics
Voltage	as for alternating voltage True RMS	as for alternating voltage True RMS	±5% m.v. if m.v. ≥ 3% U_nom, ±0,15% U_nom if m.v. < 3% U_nom
Current	as for alternating current True RMS	as for alternating current True RMS	±5% m.v. if m.v. ≥ 10% U_nom, ±0,5% U_nom if m.v. < 10% U_nom
THD
Voltage	0.0…100.0% (relative to RMS value)	0.1%	±5%
Current	0.0…100.0% (relative to RMS value)	0.1%	±5%
Unbalance factor	0.0…10.0%	0.1%	±0.15% (absolute error)

F-1A, F-2A, F-3A clamp: 0…3000 A AC (10 000 A_p-p)
C-4A clamp: 0…1200 A AC
C-5A clamp: 0…1000 A AC/0…1400 A DC
C-6A clamp: 0…12 A AC
C-7A clamp: 0…100 A AC

AC currentmeasurment (True RMS) with clamp

	C-4A	C-5A	C-6A	C-7A	F-1A	F-2A	F-3A
Rated current	1200 A AC	1000 A AC 1400 A DC	12 A AC	100 A AC	3000 A AC	3000 A AC	3000 A AC
Frequency	30 Hz…10 kHz	DC…5 kHz	40 Hz…10 kHz	40 Hz…1 kHz	40 Hz…10 kHz	40 Hz…10 kHz	40 Hz…10 kHz
Max. diameter of measured conductor	52 mm	39 mm	20 mm	24 mm	380 mm	250 mm	140 mm
Minimum accuracy	≤0,5%	≤1,5%	≤1%	0,5%	0.5%	0.5%	0.5%
Battery power	-	√	-	-	-	-	-
Lead length	2.2 m	2.2 m	2.2 m	3 m	2.5 m	2.5 m	2.5 m
Measurement category	IV 300 V	IV 300 V	IV 300 V	III 300 V	IV 600 V	IV 600 V	IV 600 V
Ingress protection	IP40	IP40	IP40	IP40	IP67	IP67	IP67

Specifications – photovoltaic installation parameters

Measurement functions	Display range	Resolution	Accuracy
Open circuit voltage U_OC	0.0 Ω…1000 V	from 0.1 V	from ±(3% m.v. + 2 digits)
Short circuit current I_SC	0.00 Ω…20.00 A	0.1 A	±(3% m.v. + 0.10 A)
