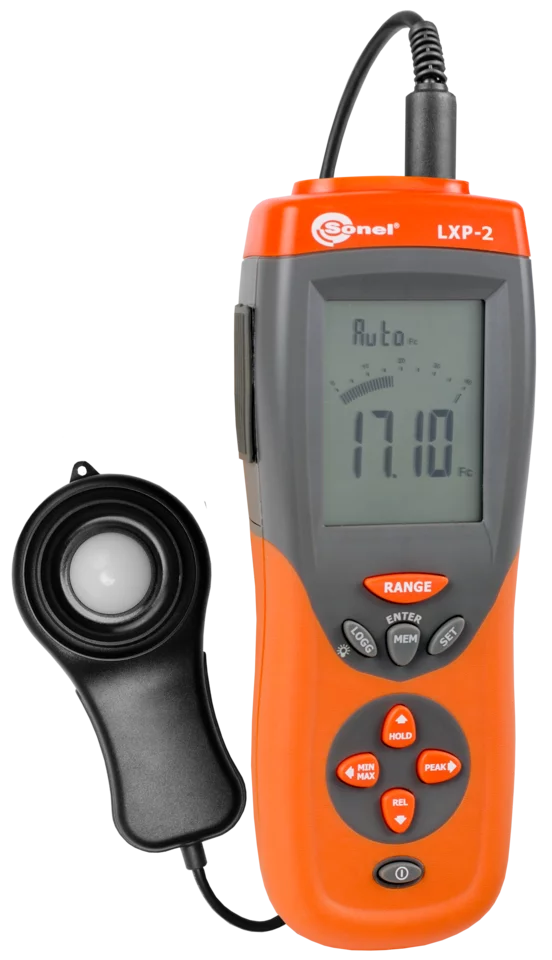

Illuminance Meter LXP-2

Illuminance Meter LXP-2

LXP-2
Illuminance Meter

Index cat. WMGBLXP2

ean 5907624014541

Data transmission: USB

Display: monochrome, backlit, segmented

505,00 $

Available

Delivery: up to 64 days

Inquiry for an offer

Reliable illuminance measurements with the LXP-2 light meter

Model for people making basic lighting measurements of indoor and outdoor workplaces. The device works with LP-1 measuring probe (class B) which allows to proceed with measurements in a reliable way. The nonintegrated probe eliminates the influence of the user to the measurement result.

Main features

high resolution up to 0.1 lx
highly accurate measurements
measurements of all types of light sources including:
- LEDs lamps,
- incandescent lamps,
- fluorescent lamps,
- electrodeless lamps,
- high and low-pressure lamps
no need to using correction factors
photodiodes with filters make the spectral sensitivity characteristics well matched to the requirements of C.I.E.

Product functions

data-hold for freezing measuring values
automatic zeroing
peak-hold for freezing the peak signal of light pulse
capable of selecting measuring mode in Lux or FC scale
MAX and MIN results save
relative mode
easy to read large backlit display
USB connection with PC
built-in memory: 99 points
16 000 values records data logger
auto power off

Illumination measurement

The result may be displayed in lx or fc. Displaying fc results with reduced resolution due to the display limitations.

Parameter	Description
probe	LP-1
class	B
measurement range
lx	0.0...19.99k
fc	0.0...1999
resolution
lx	0.1
fc	0.01
spectral uncertainty f₁ ’	±6%
cosine matching error f₂	±3%
linearity error f₃	≤±2%
accuracy	±(5% m.v. + 5 digits)
number of ranges	3
memory	99 points
logger memory	16 000 points

m.v. - measured value

Technical specification:

display: 3¾ digits, LCD with 40-segment bar indicator
exceeding of range: “OL” symbol
spectral sensitivity: CIE photopic curve (CIE human eye sensitivity curve)
power supply: 9 V battery or 8.4 V rechargeable battery
photodetector: one silicon photodiode and spectral curve filter
communication interface: USB and wireless
operational temperature: 0...50°C | 32...122°F
operational relative humidity: 0...80%
storage temperature: -20...+70°C | -4...+158°F

Weight and dimensions

Parameter	Value
Net weight (kg)	0.3
Package weight (kg)	1.9
Package width (cm)	10.6
Package height (cm)	28.5
Package length (cm)	39.8
