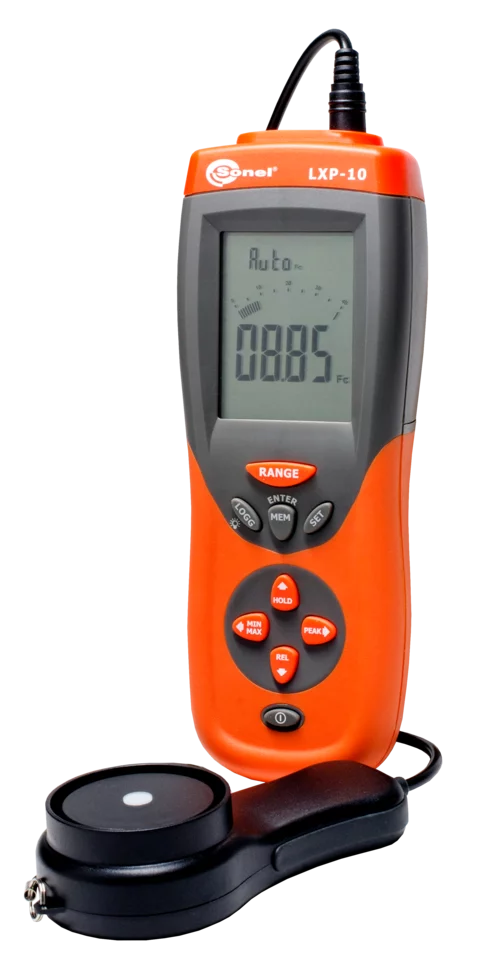

Illuminance Meter LXP-10A

Illuminance Meter LXP-10A-1

Illuminance Meter LXP-10A

Illuminance Meter LXP-10A-1

Illuminance Meter LXP-10A-2

LXP-10A
Illuminance Meter

Index cat. WMGBLXP10A

ean 5907624004009

Data transmission: OR-2, USB

Display: monochrome, backlit, segmented

1 300,00 $

Available

Delivery: up to 4 days

Inquiry for an offer

Reliable illuminance measurements with the LXP-10A light meter

Device of the highest class A thanks to cooperation with LP-10A measuring probe. Therefore it allows to make the most accurate measurements in industrial zones and public facilities. In addition, the instrument has the ability to wirelessly send data to Sonel Reader PC software.

Main features

measurements in class A
high resolution up to 0.001 lx
highly accurate measurements
measurements of all types of light sources including:
- LEDs lamps,
- incandescent lamps,
- fluorescent lamps,
- electrodeless lamps,
- high and low-pressure lamps
no need to using correction factors
photodiodes with filters make the spectral sensitivity characteristics well matched to the requirements of C.I.E.

Product functions

data-hold for freezing measuring values
automatic zeroing
peak-hold for freezing the peak signal of light pulse
capable of selecting measuring mode in Lux or FC scale
MAX and MIN results save
relative mode
easy to read large backlit display
USB connection with PC
wireless connection
built-in memory: 999 points
16 000 values records data logger
auto power off

Illumination measurement

The result may be displayed in lx or fc. Displaying fc results with reduced resolution due to the display limitations.

Parameter	Description

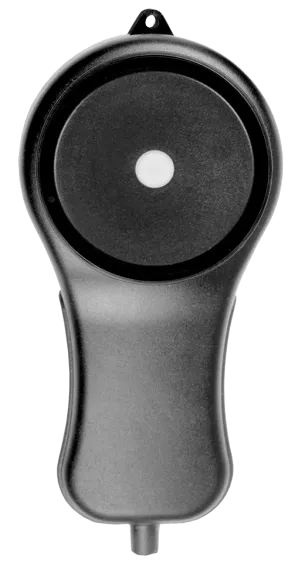

probe	LP-10A
class	A
measurement range
lx	0.000...399.9k
fc	0.000...39.99k
resolution
lx	0.001
fc	0.001
spectral uncertainty f₁ ’	±2%
cosine matching error f₂	±1.6%
linearity error f₃	≤±1%
accuracy	±(2% m.v. + 5 digits)
number of ranges	6
memory	999 points
logger memory	16 000 points

m.v. - measured value

Technical specification:

display: 3¾ digits, LCD with 40-segment bar indicator
exceeding of range: “OL” symbol
spectral sensitivity: CIE photopic curve (CIE human eye sensitivity curve)
power supply: 9 V battery or 8.4 V rechargeable battery
photodetector: one silicon photodiode and spectral curve filter
communication interface: USB and wireless
operating temperature: 0...50°C | 32...122°F
operating relative humidity: 0...80%
storage temperature: -20...+70°C | -4...+158°F

Weight and dimensions

Parameter	Value
Net weight (kg)	0.3
Package weight (kg)	1.8
Package width (cm)	10.6
Package height (cm)	28.5
Package length (cm)	39.8
