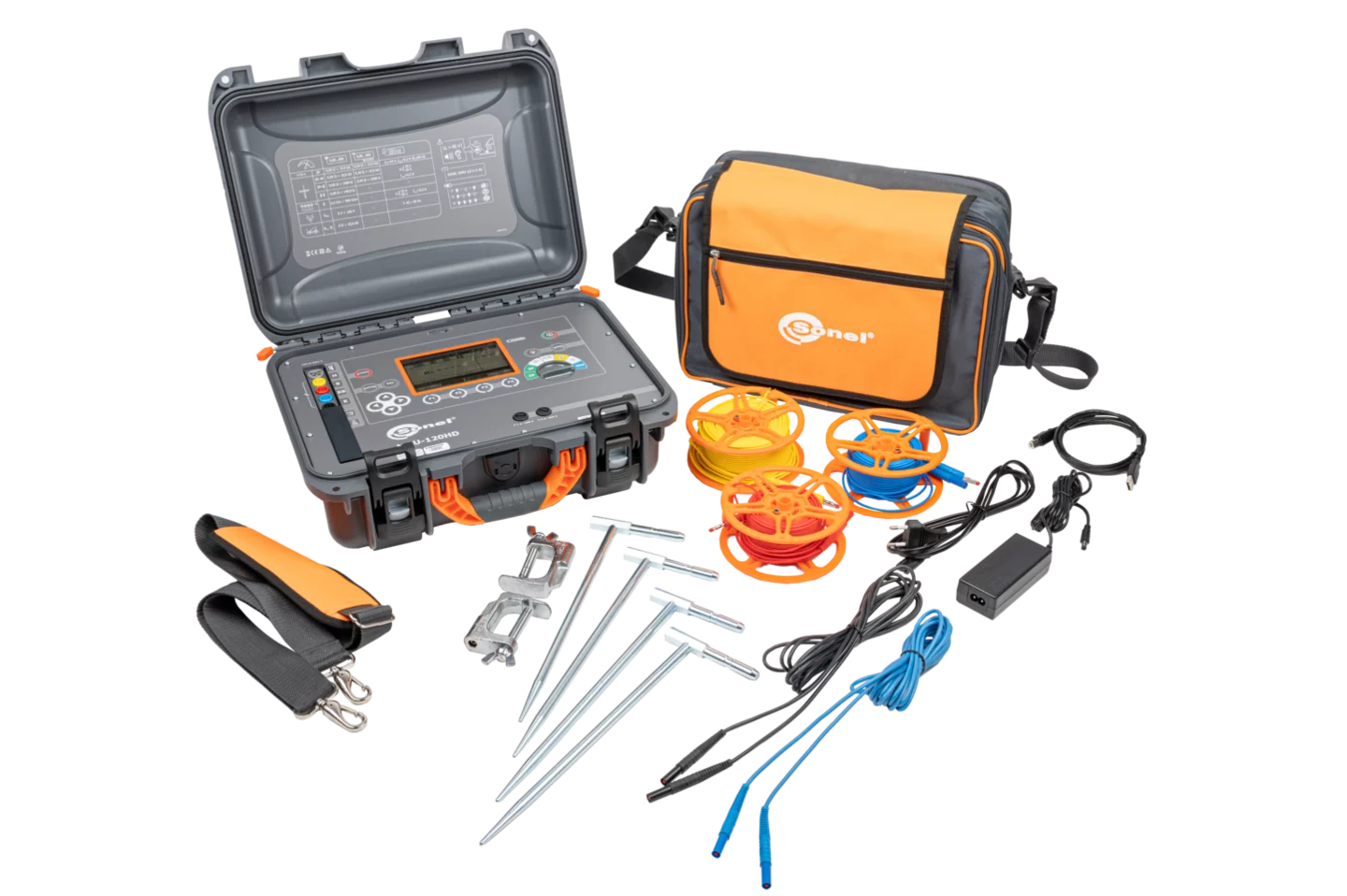

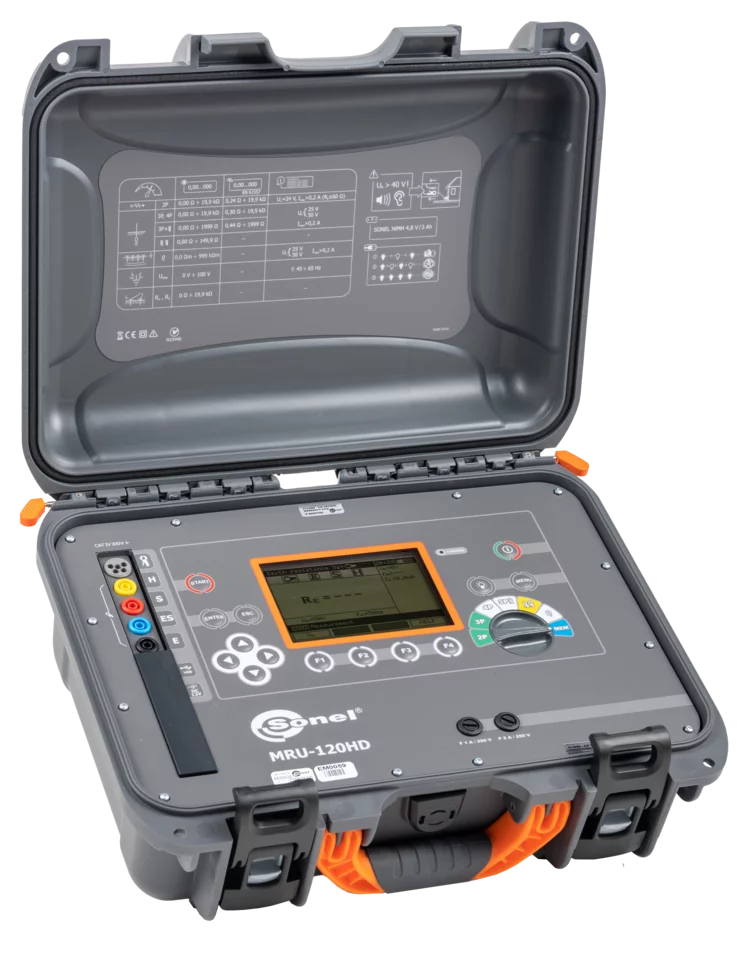

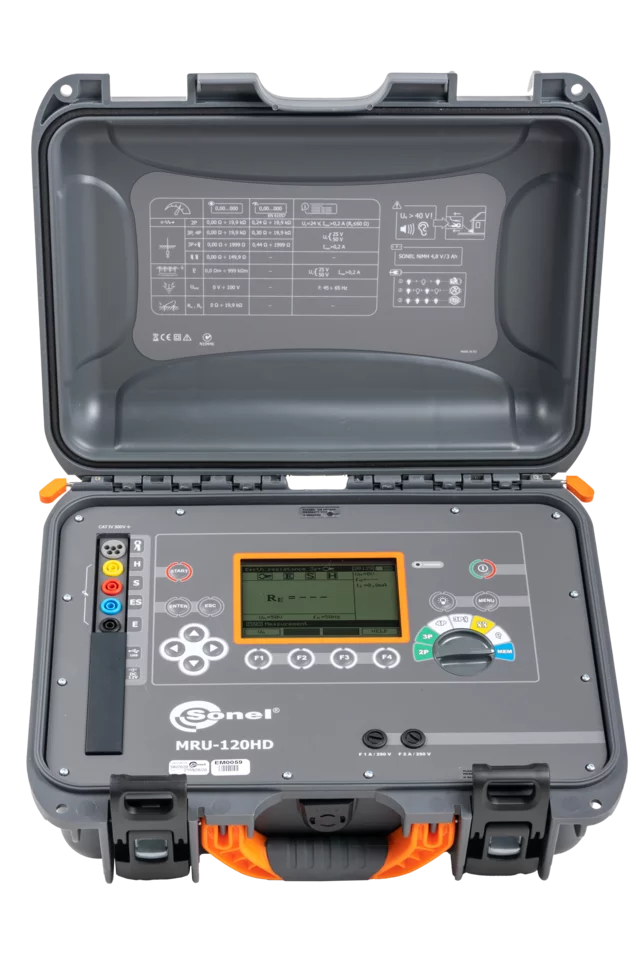

MRU-120HD

Armored meter for earth resistance and soil resistivity

Measurement methods

• 3-pole and 4-wire method – measurement of earthing systems using auxiliary probes
• 3-pole method with clamp – measurement of earthing systems with multiple earth electrodes
• Two-clamp method – measurement of earthing system when the auxiliary probes cannot be used
• Earth resistivity – Wenner method
• Resistance of earth and compensatory conductors measured using current ≥200 mA with auto-zero function – meets the requirements of EN 61557-4

Cechy dodatkowe

• Outstanding resistance to harsh environmental conditions – the suitcase housing protects against the ingress of dust and water and protects against the effects of falls
• Measurement of resistance of auxiliary electrodes R_S and R_H
• Measurement of interference voltage
• Measurement in the presence of interference voltage generated by power networks with frequency of 50 Hz or 60 Hz
• Selection of maximum measuring voltage (25 V and 50 V)
• Automatic calculation of soil resistivity in ohm-meters (Ωm) and ohm-feet (Ωft)
• Memory of 990 measurement results (10 banks of 99 cells each)
• Calibration of clamp used
• Real time clock (RTC)
• Data transmission to the computer
• Battery indication

Application

MRU-120HD was created for the most difficult working conditions. It generates a measuring current exceeding 200 mA, which provides effective measurements of grounding of energy objects such as transformer stations and power stations.

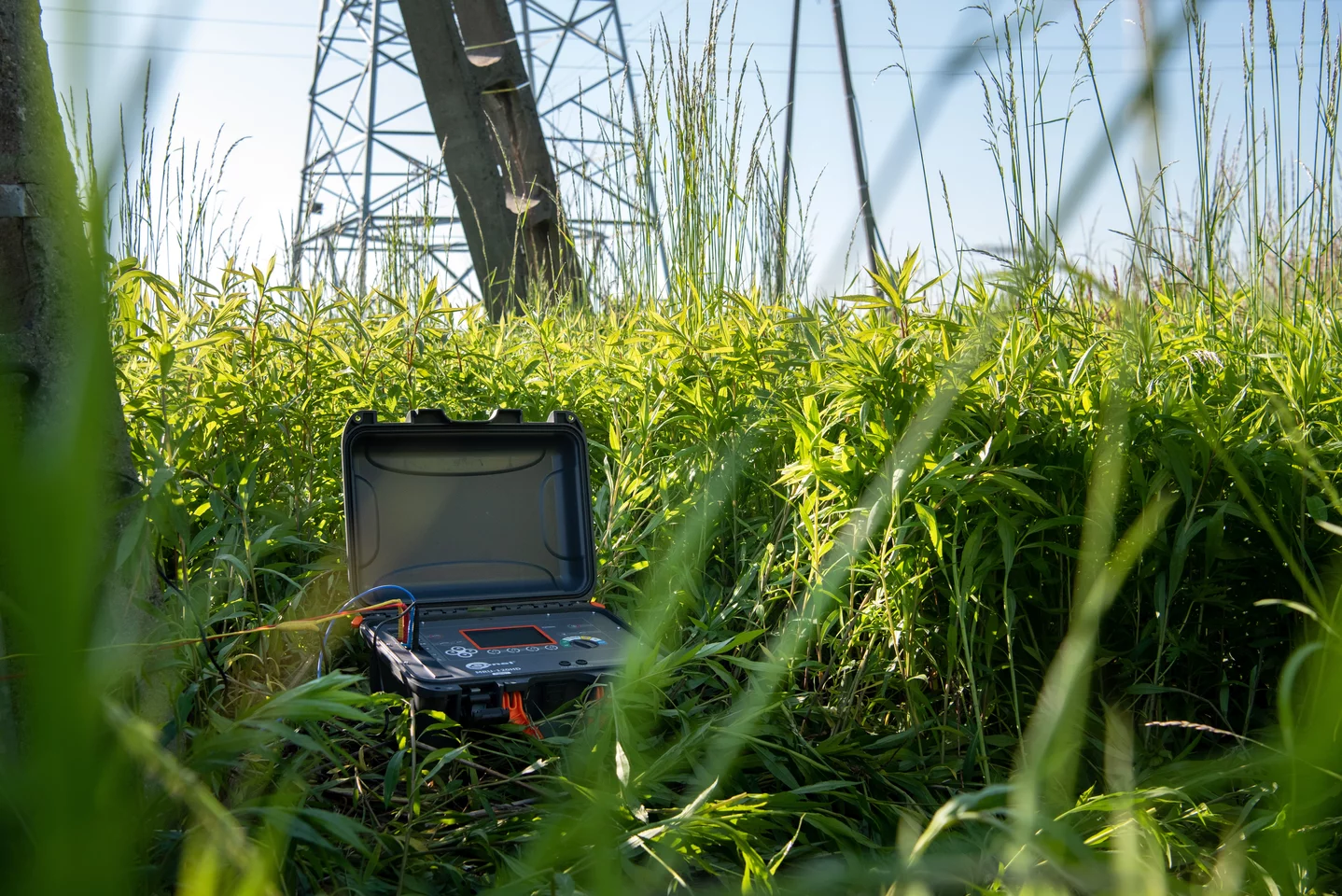

Thanks to the methods using clamps, it is not necessary to disconnect the control connectors, which is sometimes a very tedious operation. This plays a special role when performing works on objects exposed to weather conditions, where the connecting elements are sometimes corroded or tarnished.
The graphical user interface provides clear readings and explicit messages. This translates into quick, trouble-free service.

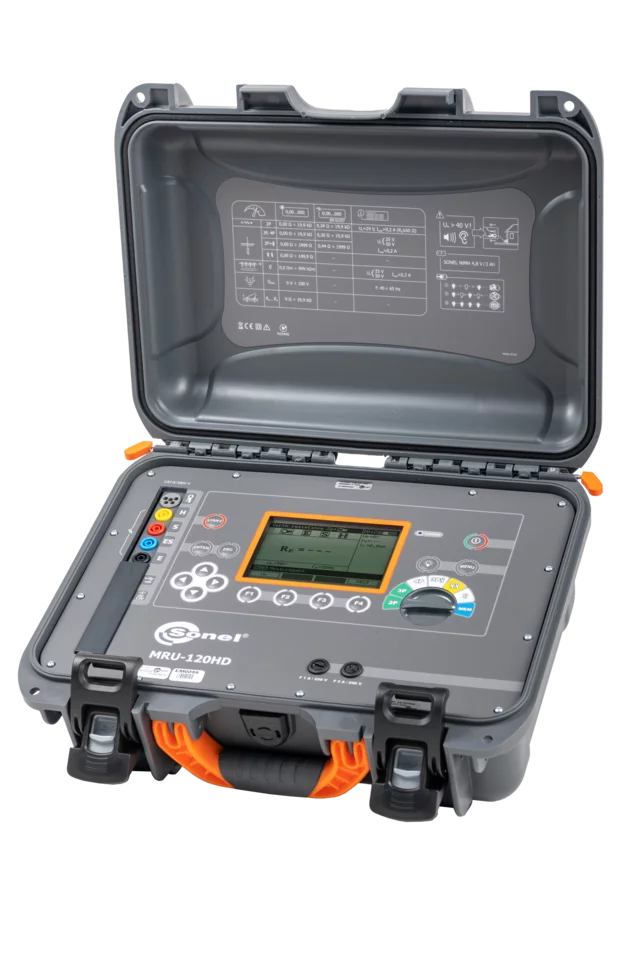

Transport and security

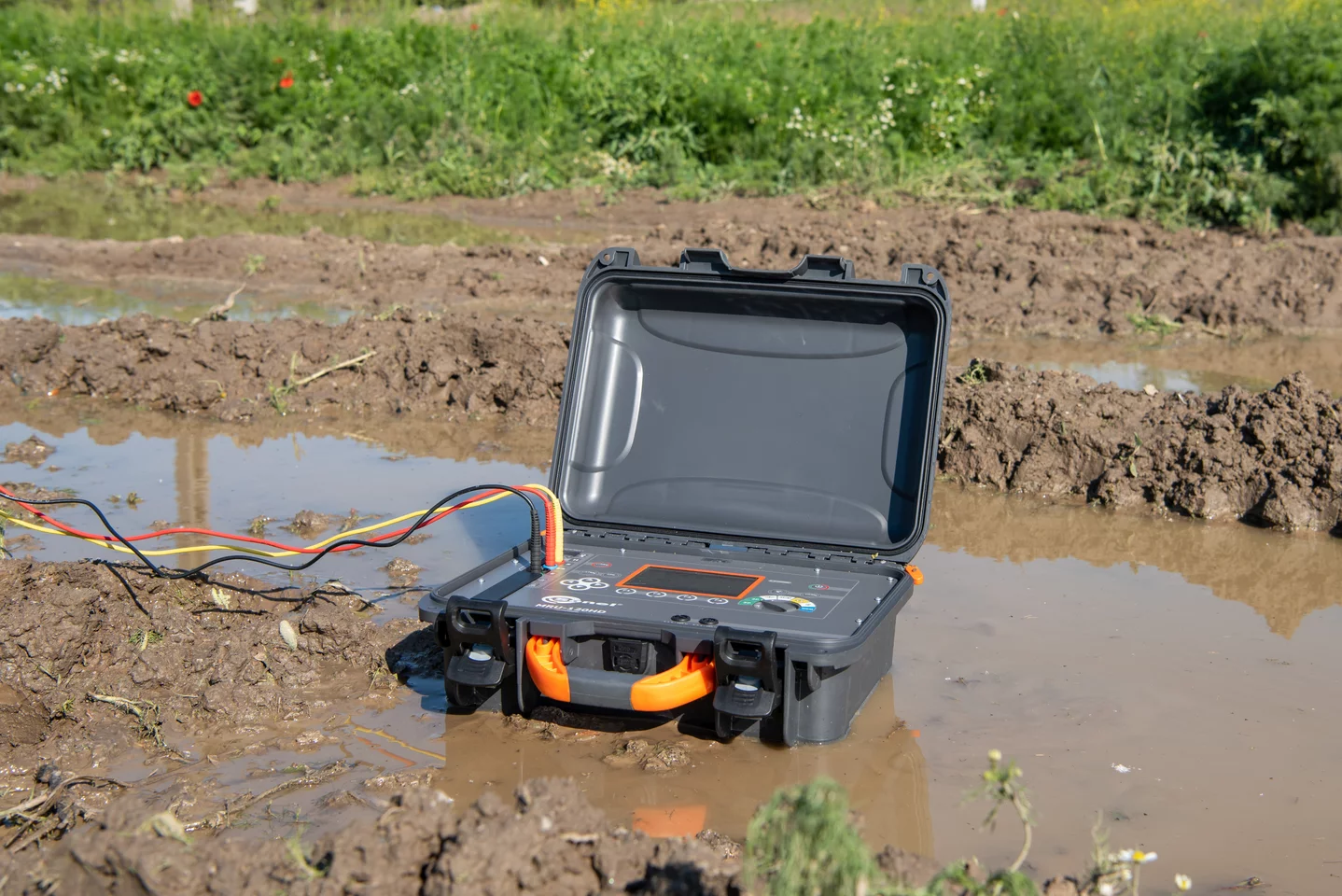

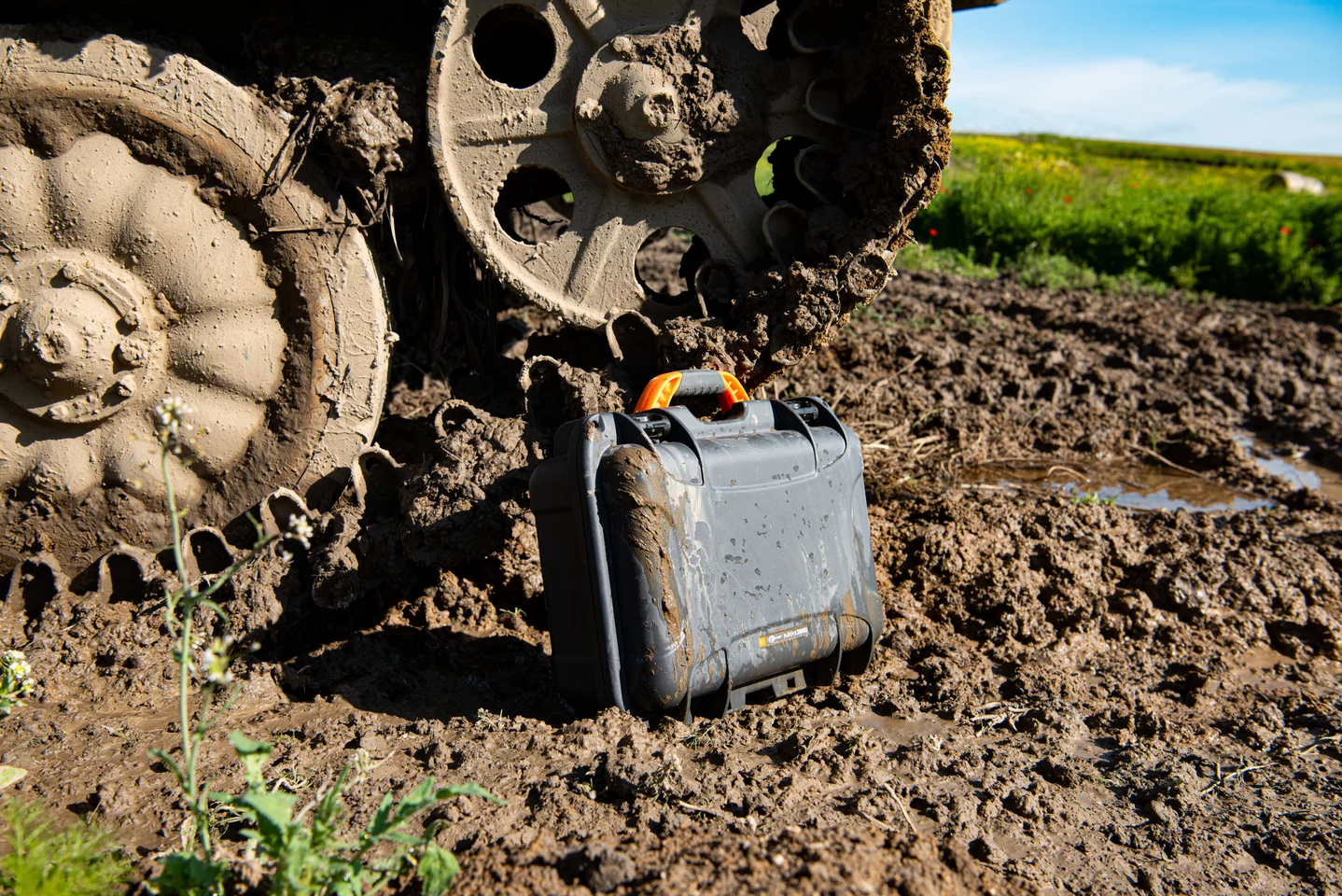

It doesn’t matter if you take measurements while wading in the mud or if you act in the sand amongst clouds of dust. The MRU-120HD meter is ready and will not disappoint. IP67 protection degree when the cover is closed ensures dust-tightness and prevents water ingress – even when the housing is immersed briefly! When measuring, the tightness is still high (IP54), providing protection against dust and water splashes from any direction.

Capabilities

The measuring methods available in the device allow for comprehensive control of working and protective grounding. The calibration function of the test leads eliminates the influence of their resistance on the result. However, this is just the beginning.

• The four-lead method provides very accurate measurement of the expected small values of resistance – eliminates the resistance of the test leads connecting the meter to grounding.
• Measurement of the continuity of protective connections and equipotential bondings with a current exceeding 200 mA meets the requirements of EN 61557-4 standard.
• Before performing the measurement, the meter checks whether the tested object is a subject to excessive interference voltage, which may indicate additional problems.

Memory and results

The results can be saved to the device’s memory. It is divided into 10 banks of 99 cells, each corresponding to one measurement. These results can be easily transferred to the Sonel Reader software for archiving or subsequent analysis and research.
