CMP-2000
Digital Clamp Meter

Index cat. WMGBCMP2000

ean 5907624014411

Ingress protection: IP 21

Measurement category: CAT III 1000 V, CAT IV 600 V

Display: monochrome, backlit, segmented

295,00 $

In stock

Delivery: 24h

Inquiry for an offer

Professional measurements

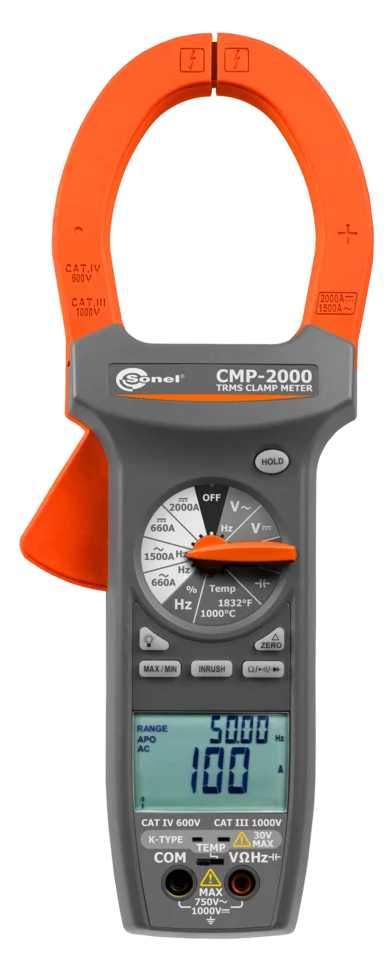

The Sonel CMP-2000 professional clamp meter is a multi-purpose instrument used for measuring high currents up to 2000 A with clamps on wires up to 57 mm in diameter and on bus-wires up to 70 x 18 mm. The special INRUSH function makes it possible to measure the maximum instantaneous value of the current drawn by an electrical device during its start-up.

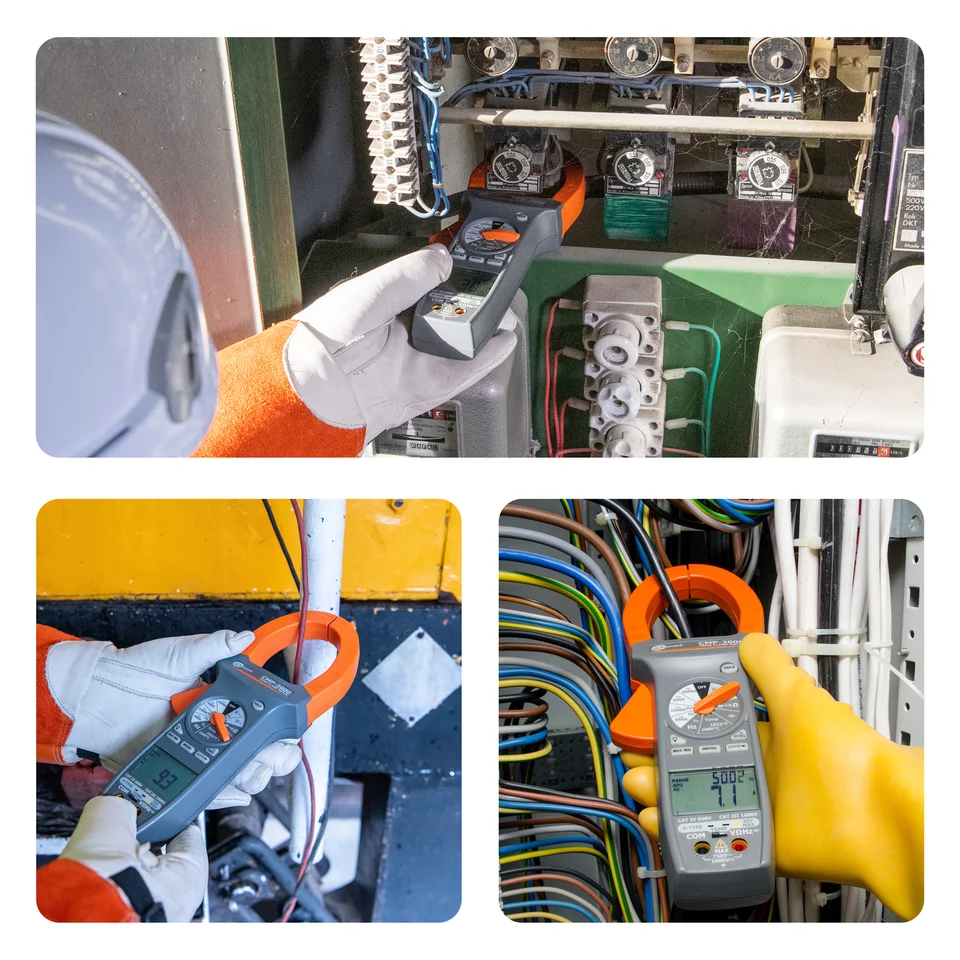

The CMP-2000 clamp meter is equipped with electronic overload protection for all functions and measuring ranges, thus guaranteeing higher operational safety. The instrument performs well even in hard-to-reach places and significantly improves the testing of specific network parameters. The handy shape further enhances the comfort of using the device. The small dimensions make the meter easy to carry and it does not take up much space in the tool bag. The casing of the device is made in protection class IP20. This well-conceived, cost-effective meter model is an excellent choice for novice users, but its advantages will undoubtedly be recognised by experienced professionals too.

Product features

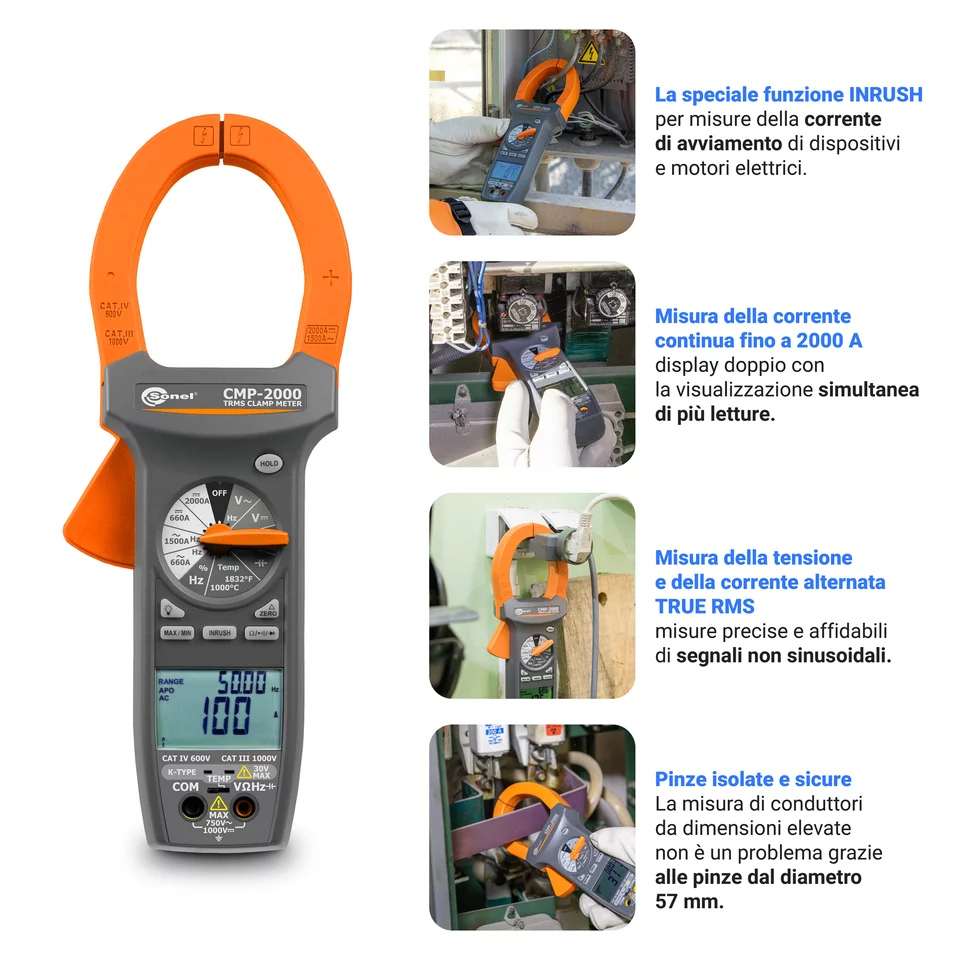

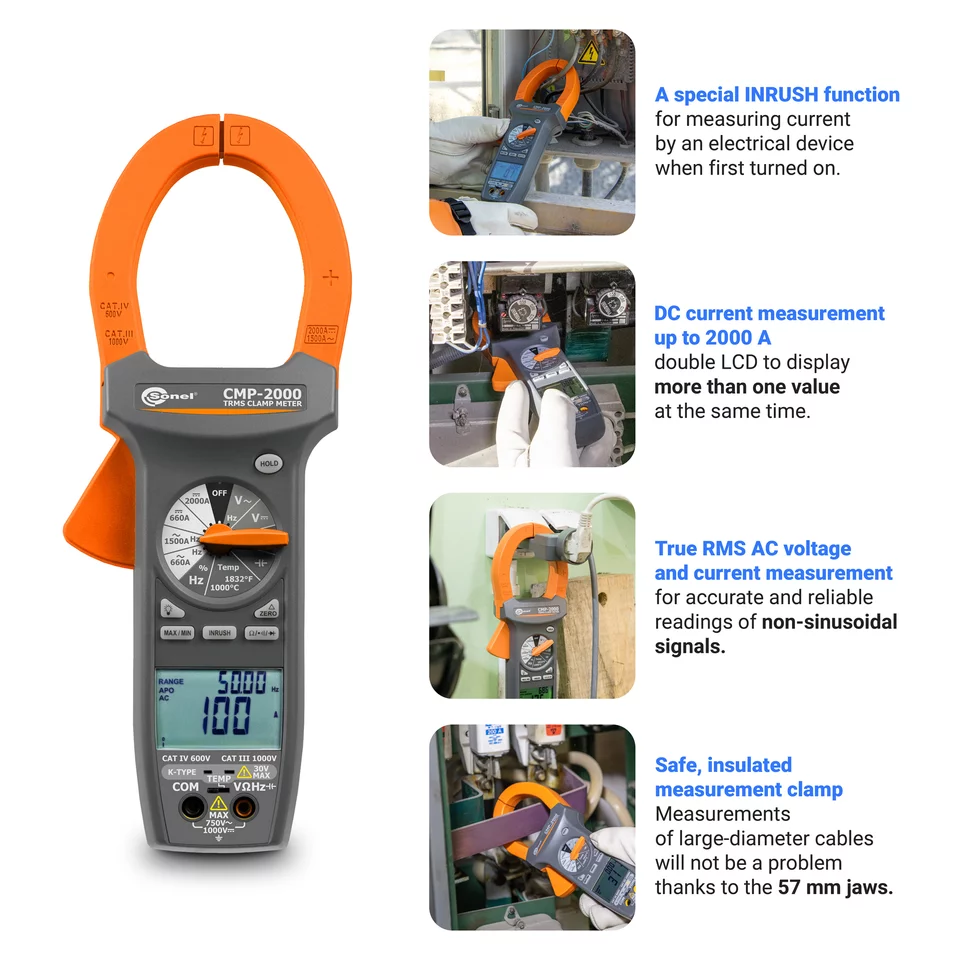

INRUSH function for measuring current drawn by an electrical device when first turned on
True RMS AC voltage and current measurement for accurate and reliable readings of non-sinusoidal signals
AC current measurement (TRUE RMS) up to 1500 A
DC current measurement up to 2000 A
AC voltage measurement (TRUE RMS) up to 750 V
DC voltage measurement up to 1000 V
resistance mesurement up to 66 MΩ
continuity test with acoustic signalling (beeper) for resistance below 30 Ω
capacitance measurement up to 6,6 mF
temperature measurement (Fahrenheit and Celsius)
frequency measurement
duty cycle measurement
diode test

Overview

The Sonel CMP-2000 Clamp Meter is designed to work in high current rating up to 2000 A.

A special INRUSH function allows to measure the maximal instantaneous input current drawn by an electrical device when first turned on.

Measurements of large-diameter cables will not be a problem thanks to the 57 mm jaws. CMP-2000 is the best solution for professional electricians.

Special features

double LCD to display more than one value at the same time
safe, insulated measurement clamp
automatic selection of measuring ranges
HOLD function, allowing for freezing the result on the display
backlit LCD
Delta ZERO function, relative measurement mode for direct current - capability of zeroing the instrument at any time and returning to measurement in absolute mode
holding of minimum and maximum values
indication of range overflow
automatic power down after 30 minutes

Faciliating the measurements

The AC-16 adapter expands the application of the clamp meter. With the ratio x1 and x10, 230 V AC of voltage and max 16 A of current, the adapter can be applied with any type of clamp meter.

DC current measurement

Range	Resolution	Accuracy
0.0…65.9 A	0.1 A	±(2.0% m.v. + 5 digits)
660…2000 A	1 A	± (3.0% m.v. + 5 digits) for 660...1000 A ±(5.0% m.v. + 5 digits) for 1000...2000 A

DC voltage measurement

Range	Resolution	Accuracy
0.000…6.599 V	0.001 V	±(0.5% m.v. + 2 digits)
6.60…65.99 V	0.01 V	±(0.5% m.v. + 2 digits)
66.0…659.9 V	0.1 V	±(0.5% m.v. + 2 digits)
660…1000 V	1 V	±(0.5% m.v. + 2 digits)

Resistance measurement

Range	Resolution	Accuracy
0.0…659.9 Ω	0.1 Ω	±(1.0% m.v. + 5 digits)
0.660…6.599 kΩ	0.001 kΩ	±(1.0% m.v. + 5 digits)
6.60…65.99 kΩ	0.01 kΩ	±(1.0% m.v. + 5 digits)
66.0…659.9 kΩ	0.1 kΩ	±(1.0% m.v. + 5 digits)
0.660…6.599 MΩ	0.001 MΩ	±(2.0% m.v. + 5 digits)
6.60…66.00 MΩ	0.01 MΩ	±(3.5% m.v. + 5 digits)

Duty cycle measurement

Range	Resolution	Pulse width	Accuracy
5…95%	0.1%	>10 μs	±(3.0% m.v. + 30 digits)

AC current measurement (TRUE RMS)

Range	Range	Accuracy
0.0…659.9 A	0.1 A	±(2.0% m.v. + 10 digits) for 50...60 Hz
0.0…659.9 A	0.1 A	±(3.0% m.v. + 10 digits) for 61...400 Hz
660…1500 A	1 A	±(2.5% m.v. + 10 digits) for 50...60 Hz and 660...1000 A ±(3.5% m.v. + 10 digits) for 61...400 Hz and 660...1000 A ±(5.0% m.v. + 10 digits) for 50...400 Hz and 1000...1500 A

AC voltage measurement

Range	Resolution	Accuracy
0.000…6.599 V	0.001 V	±(1.5% m.v. + 8 digits) for 50...500 Hz
6.60…65.99 V	0.01 V	±(1.5% m.v. + 8 digits) for 50...500 Hz
66.0…659.9 V	0.1 V	±(1.5% m.v. + 8 digits) for 50...500 Hz
660…750 V	1 V	±(1.5% m.v. + 8 digits) for 50...500 Hz

Capacitance measurement

Range	Resolution	Accuracy
0.0…6.599 nF	0.001 nF	±(3.0% m.v. + 30 digits)
6.60…65.99 nF	0.01 nF	±(3.0% m.v. + 10 digits)
66.0…659.9 nF	0.1 nF	±(3.0% m.v. + 30 digits)
6.660…6.599 μF	0.001 μF	±(3.0% m.v. + 10 digits)
6.60…65.99 μF	0.01 μF	±(3.0% m.v. + 10 digits)
66.0…659.9 μF	0.1 μF	±(3.0% m.v. + 10 digits)
0.660…6.599 mF	0.001 mF	±(5% m.v. + 10 digits)

Frequency measurement

Range	Resolution	Accuracy
10.00…65.99 Hz	0.01 Hz	±(0.1% m.v. + 5 digits)
66.0…659.9 Hz	0.1 Hz	±(0.1% m.v. + 5 digits)
0.660…6.599 kHz	0.001 kHz	±(0.1% m.v. + 5 digits)
6.60…65.99 kHz	0.01 kHz	±(0.1% m.v. + 5 digits)
66.0…659.9 kHz	0.1 kHz	±(0.1% m.v. + 5 digits)
0.660…1.000 MHz	0.001 MHz	±(0.1% m.v. + 5 digits)

Weight and dimensions

Parameter	Value
Net weight (kg)	0.5
Package weight (kg)	1
Package width (cm)	8
Package height (cm)	30
Package length (cm)	14
