| Parameter | Description |
|---|---|
| nominal phase-to-phase voltage range | 35...690 V AC |
| maximum phase-to-phase operating voltage | 760 V AC |
| frequency range | 10...70 Hz |
| work temperature | -10...+45°C | 14...113°F |
| storage temperature | -20...+60°C | -4...+140°F |
| work humidity | 20...80% |
| power supply | from the tested network up to 15 min for maximum voltage |
| measurement category in accordance with EN 61010 and EN 61557 | CAT III 600 V |
| insulation type in accordance with EN 61010-1 | double |
Official manufacturer store
Fast shipping
Free delivery from 400 USD
Contact: office@soneltest.com
770 331 1393
0
Login
popular
Additional accessories
AGT-16P
Three-phase socket adapter 16 A (5P)
-32.77%
-29,25 $
89,25 $
60,00 $
Available
AGT-32P
Three-phase socket adapter 32 A (5P)
99,96 $
Available
AGT-16C
Three-phase socket adapter 16 A (4P)
110,67 $
110,67 $
Available
AGT-32C
Three-phase socket adapter 32 A (4P)
123,17 $
Available
AGT-63P
Three-phase socket adapter 63 A (5P)
232,05 $
Available
S-3
Carrying case
37,48 $
Available
K-02
Crocodile clip, red, 1 kV, 20 A
22,31 $
Available
K-02
Crocodile clip, yellow, 1 kV, 20 A
22,31 $
In stock
Check phase sequence

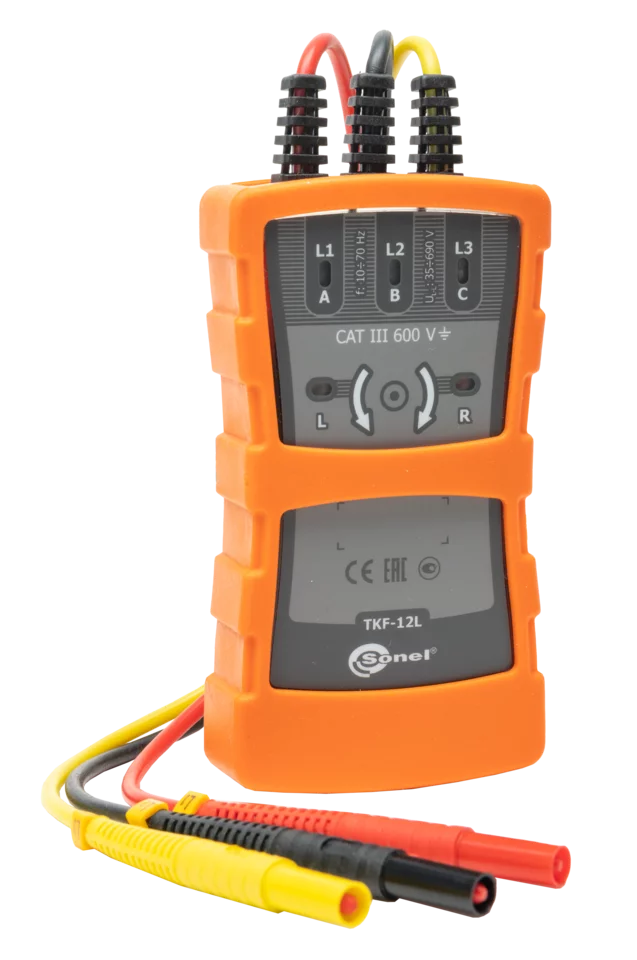

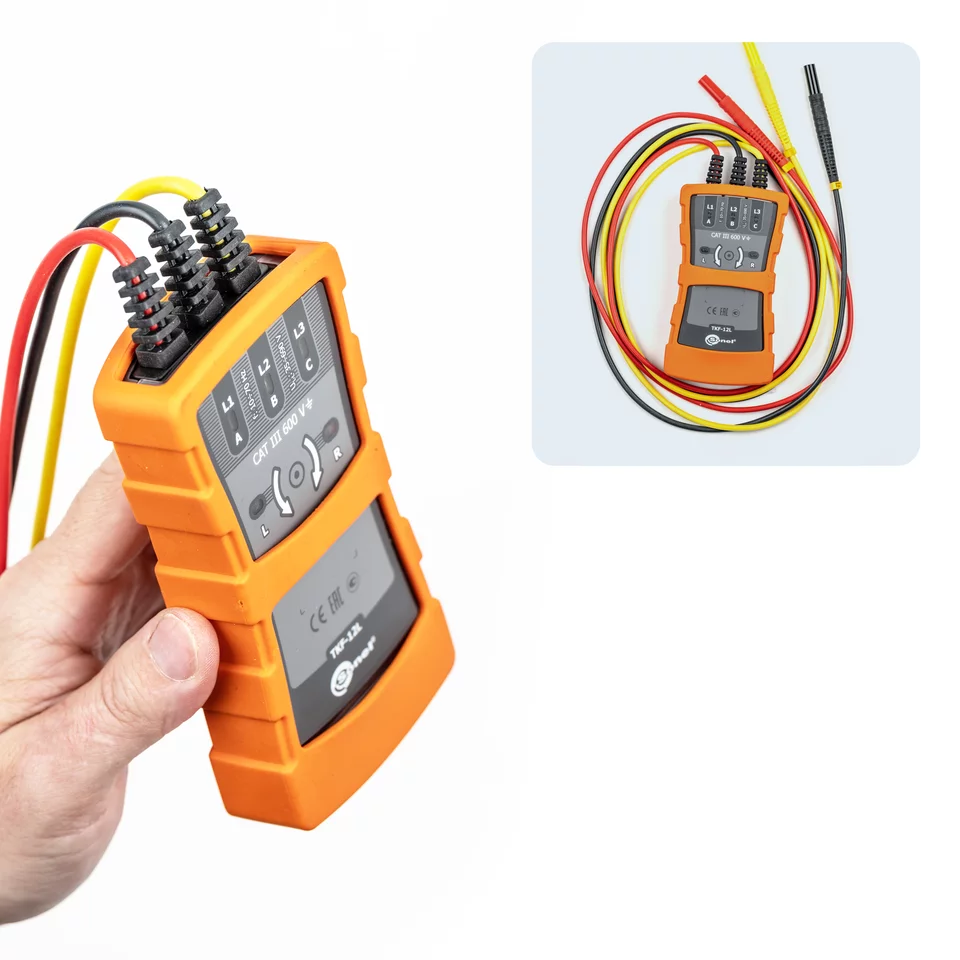

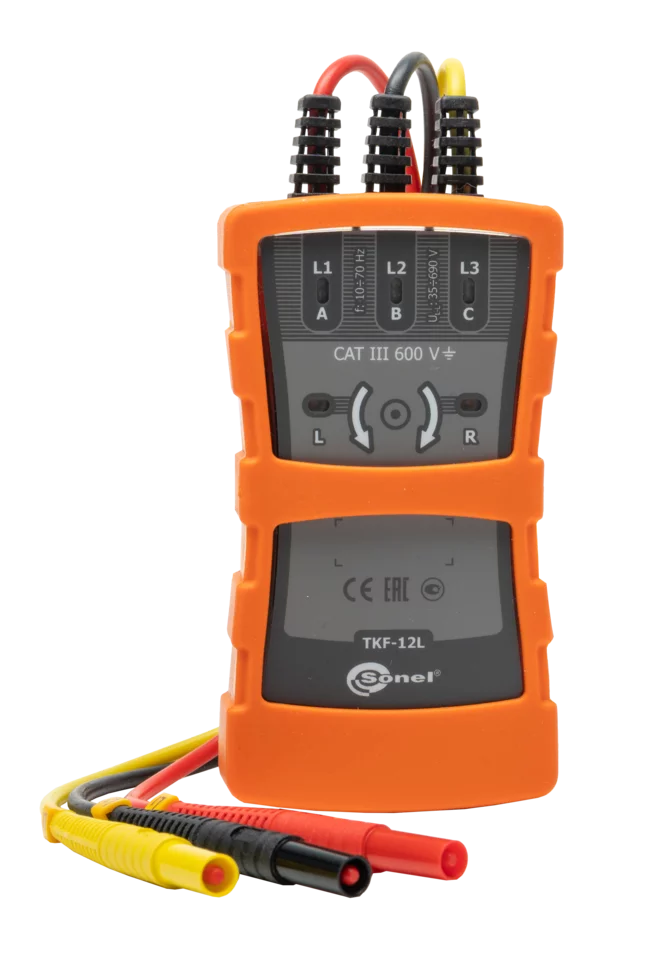

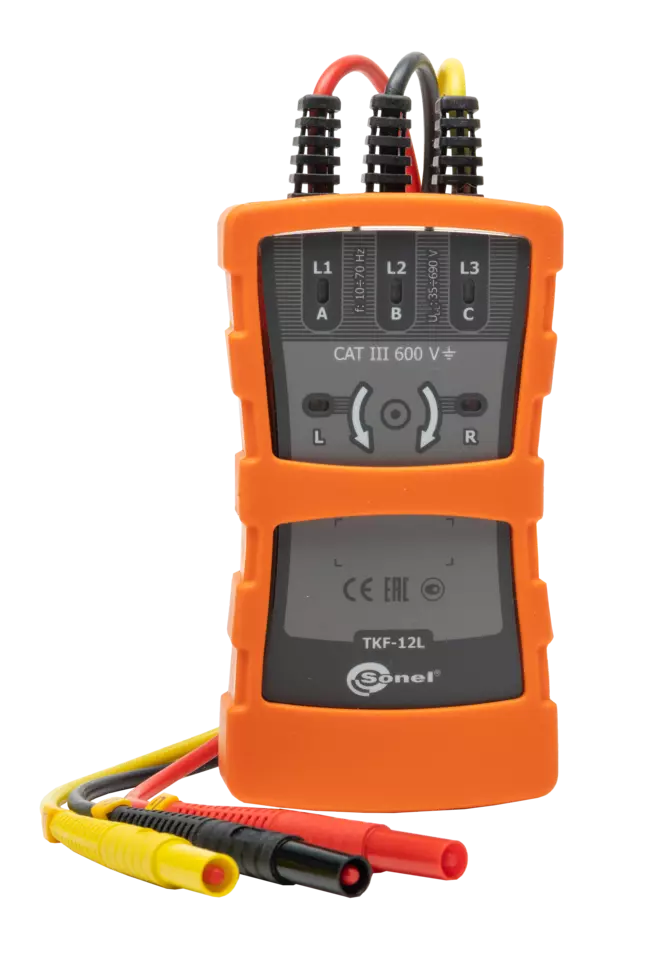

The ergonomic phase sequence tester Sonel TKF-12L is a proven measuring tool, whose main task is to control 3-phase electrical installations. Phase sequence tester signals compatible or opposite connection. The instrument is suitable for a wide range of phase-to-phase voltages (operating range is from 35 to 690 V, frequency from 10 to 70 Hz) in distribution circuits. The device signals compatible or opposite connections in the electrical installation and, in addition, indicates the symmetry of voltages in each phase. Sonel TKF-12L is characterised by a simple and ergonomic design. Enclosed in a robust and sealed IP 42 casing, the tester ensures high durability and resistance to damage. The measuring instrument guarantees efficient operation in a wide temperature range from -10°C to +45°C. Double insulation according to EN 61010-1 ensures a high level of safety during testing.
Features

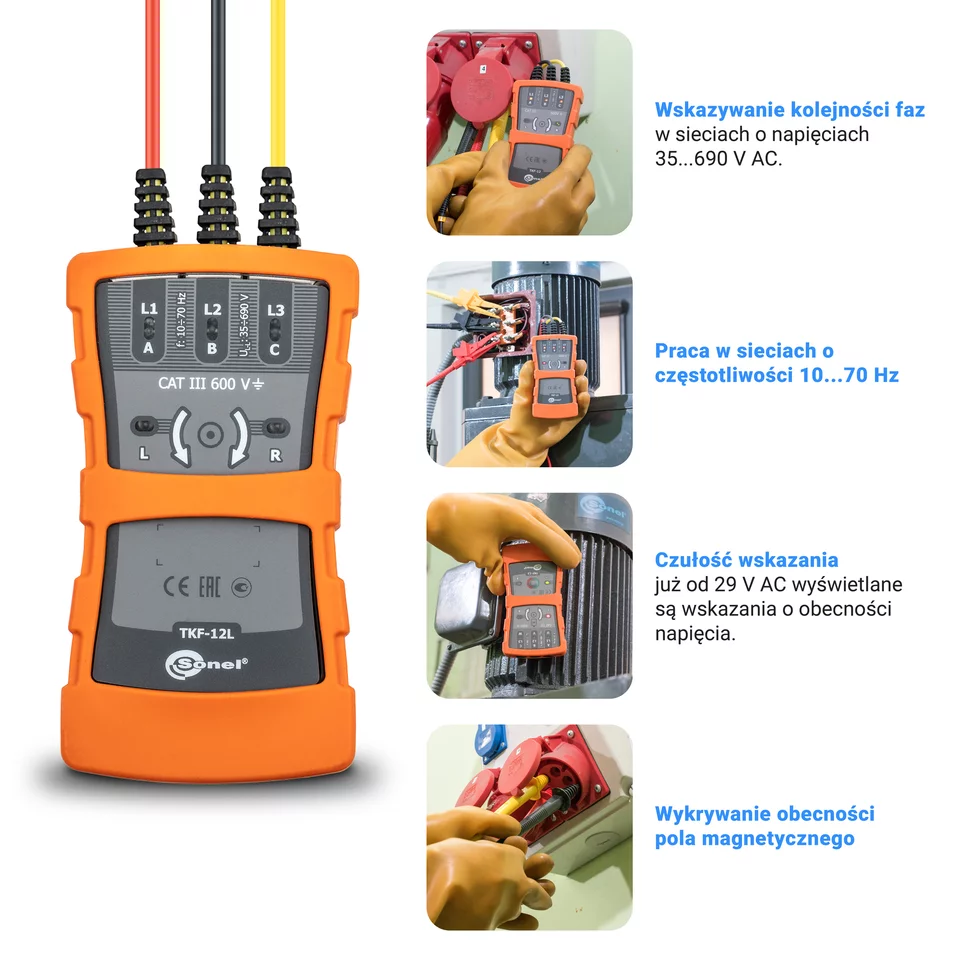

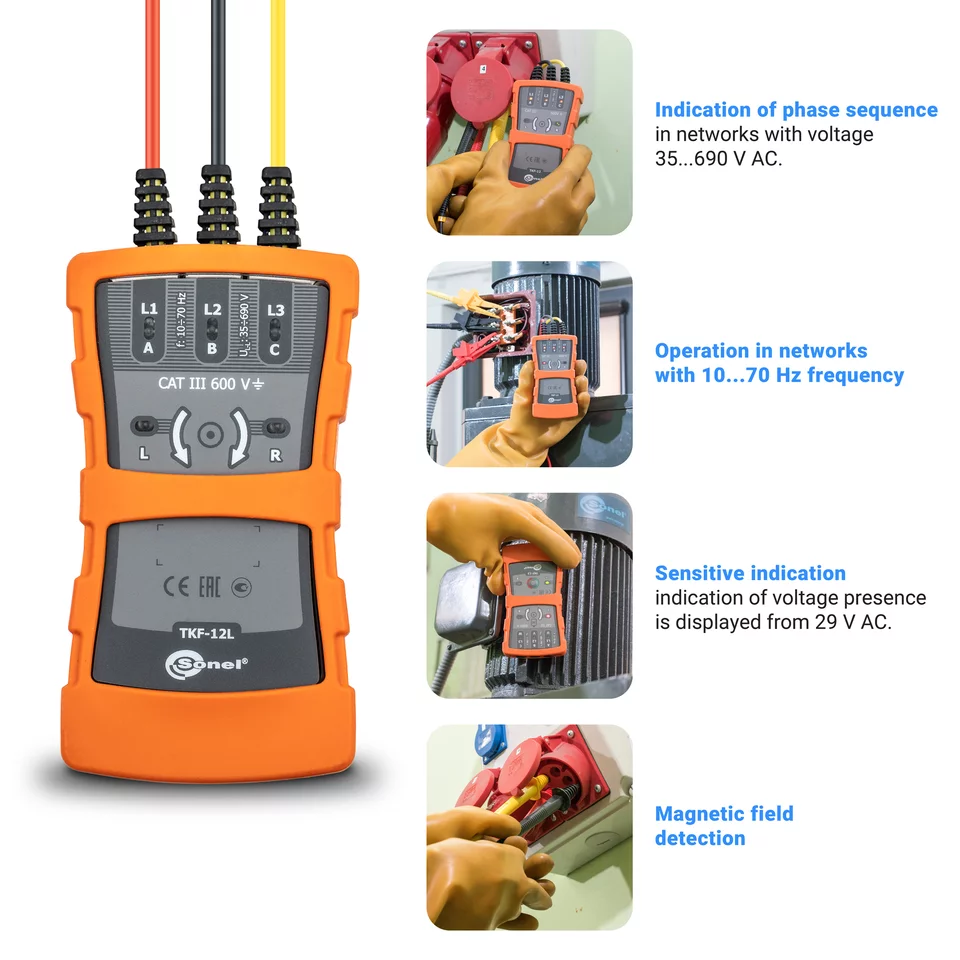

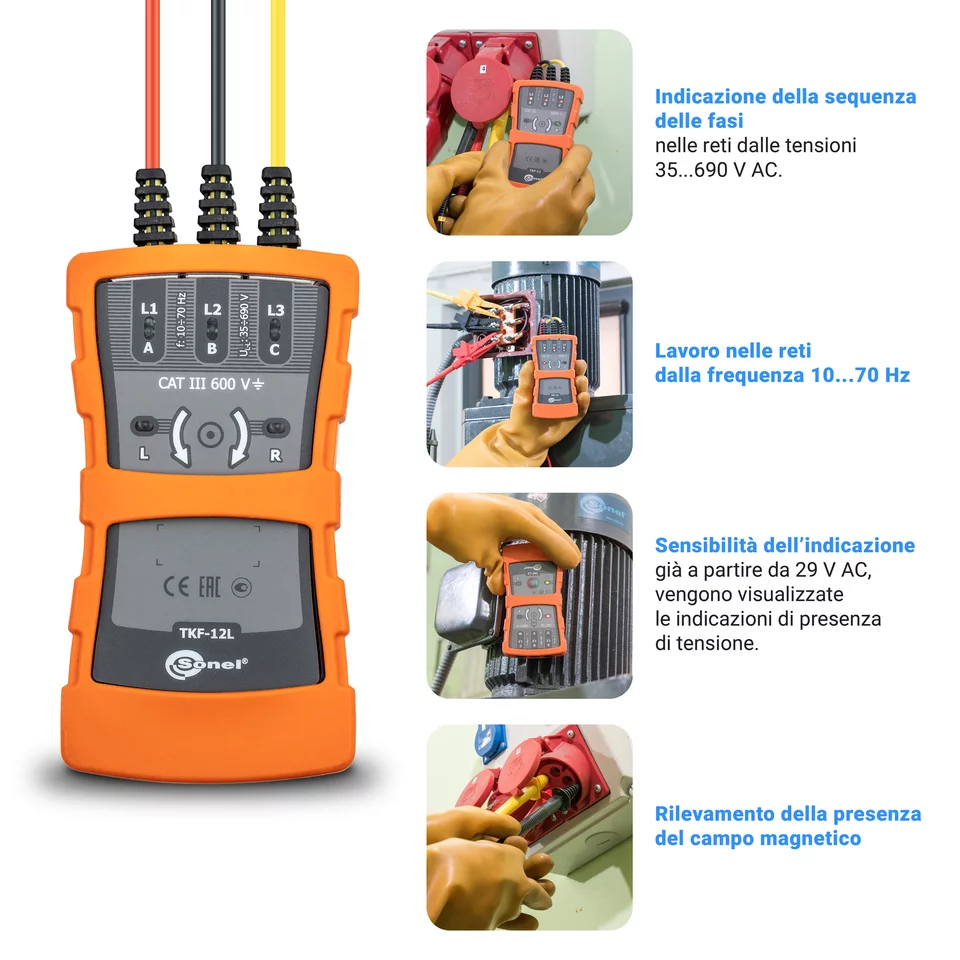

- indication of phase sequence in networks with voltage 35...690 V AC
- operation in networks with 10...70 Hz frequency
- voltage indication light
- wired indication of motor rotation
Purpose
The unique TKF-12L tester is designed to control 3-phase electrical installations in a wide range of phase-to-phase voltages (35… 690 V, frequency up to 70 Hz) in distribution circuits. The indication of the rotating field and the direction of motor shaft rotation is performed.
Aplication of TKF-12L
Versality

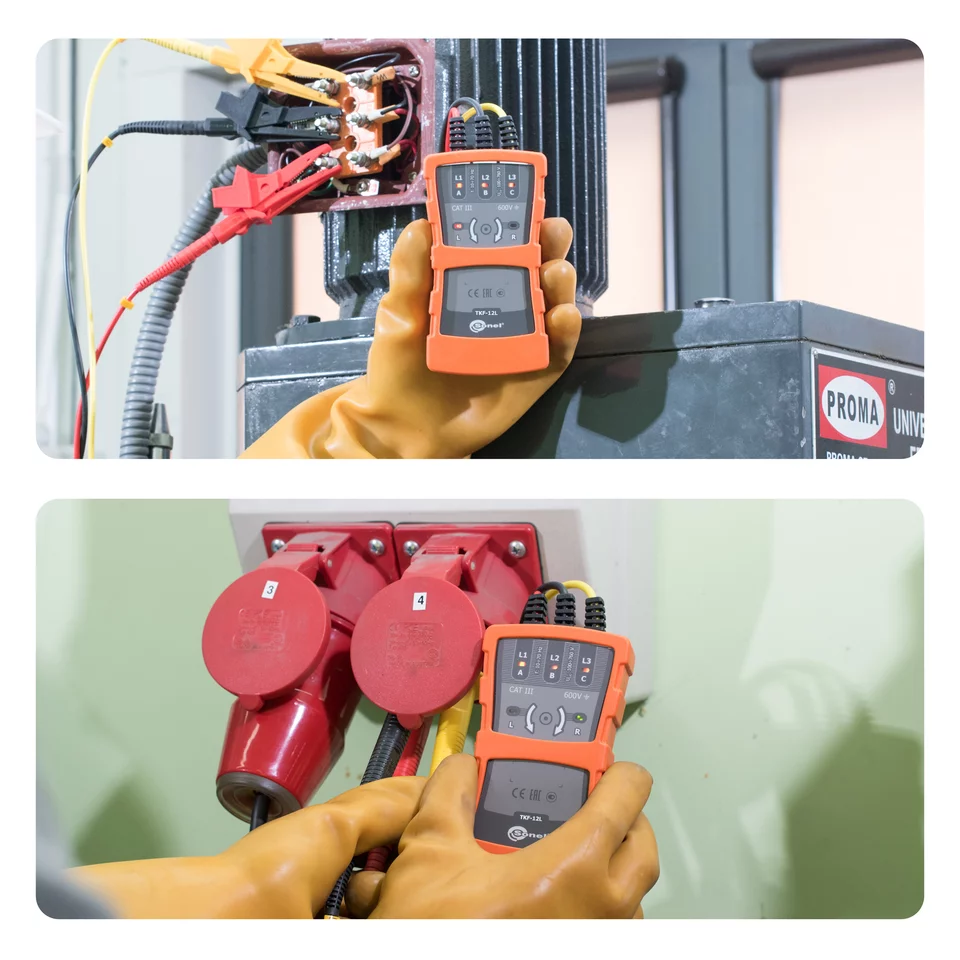

Measure easily and accurately 16-, 32- and 63-amps industrial sockets with optional AGT-16, AGT-32 and AGT-63 adapters.
Prevention
Standard accessories, included in the kits, allow for quick verification whether the shaft rotates in the correct direction after the motor is connected. Otherwise, the engine or the equipment driven by it may be damaged.
Intuitive, trouble-free connection

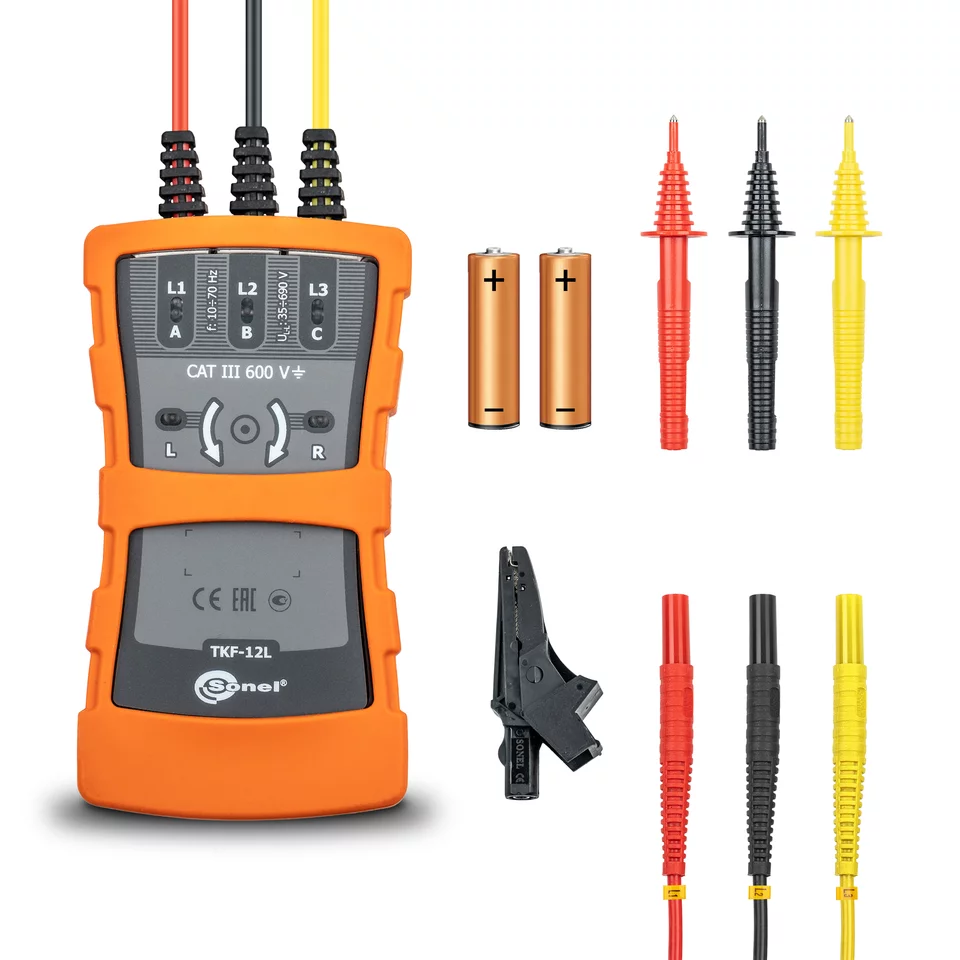

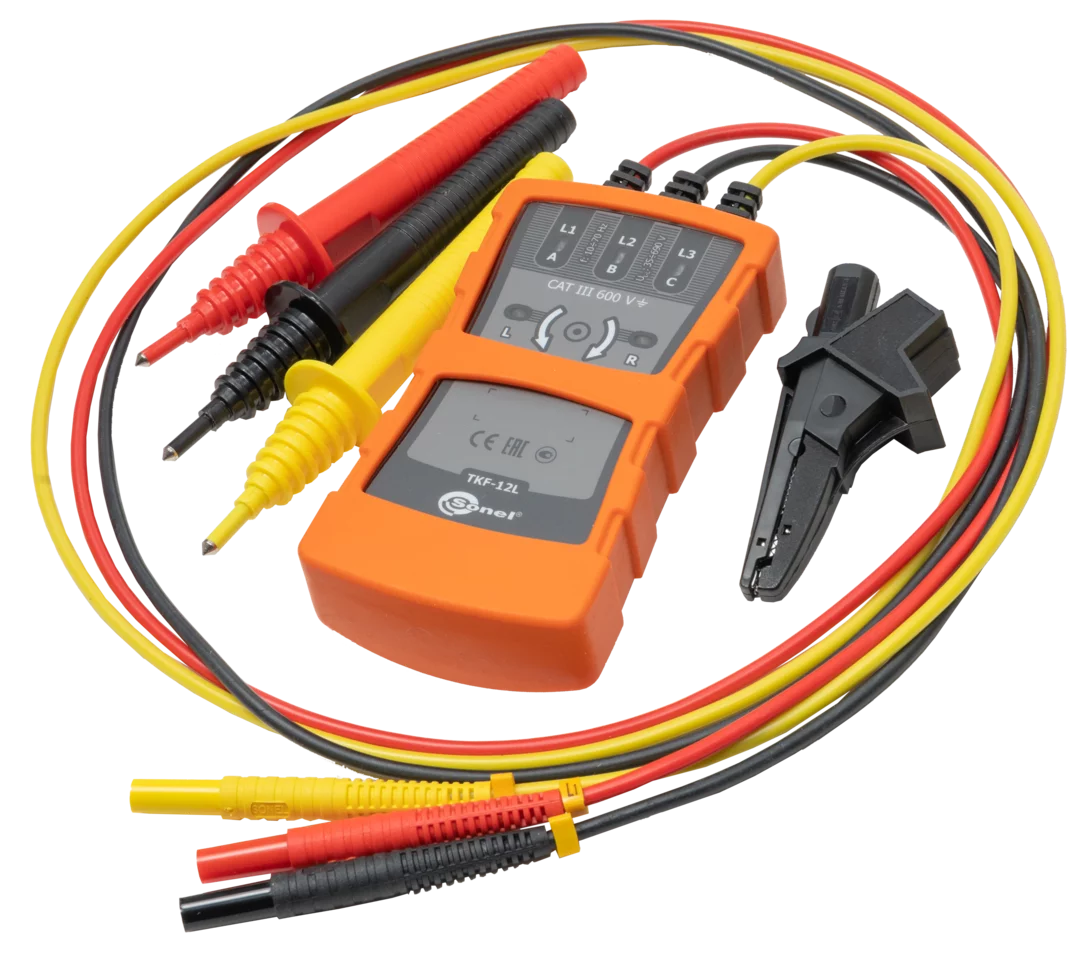

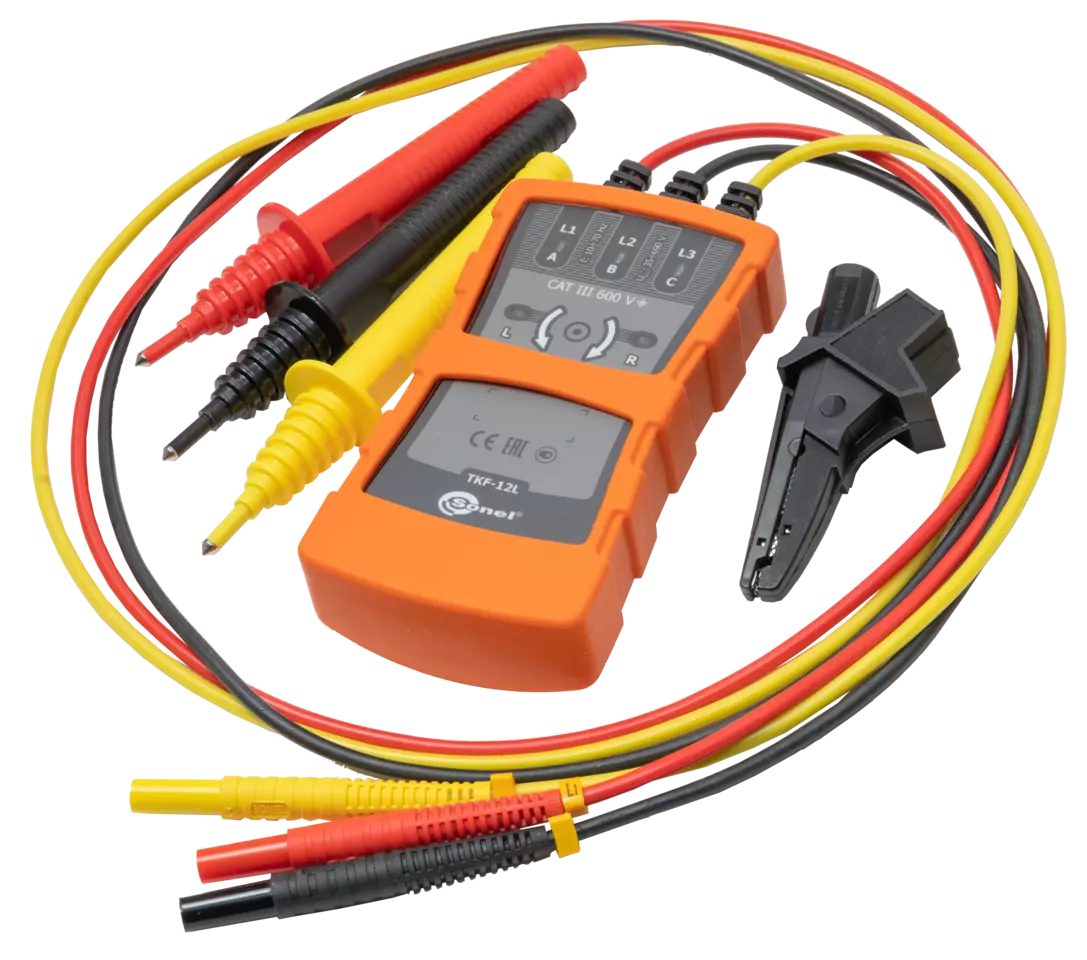

Various colored cables, crocodile clips and test probes allow you to connect the device to the tested object - quickly and without any problems.
Sensitive indication
Thanks to the innovative technology in the TKF-12L, we have achieved a record range of nominal phase-to-phase voltages: indication of voltage presence is displayed from 29 V AC.
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.4 |
| Package weight (kg) | 0.5 |
| Package width (cm) | 24 |
| Package height (cm) | 8 |
| Package length (cm) | 12.5 |
