| Parameter | Description |
|---|---|
| Detector resolution | 120 x 90 / 17 μm |
| Spectral range | 7.5~14 μm |
| Frame rate | 25 Hz |
| Thermal sensitivity | 60 mK |
| IFOV | 7.6 mrad |
| Lens (field of view/ focal length) | 50° x 38°/2.28 mm |
| Display | 2.4" 240 x 320 px LCD |
| Image modes | IR |
| Temperature range | 20°C...50°C | 68°F...122°F |
| Accuracy | ≤0.5°C | ≤0.9°F |
| (ambient temperature 23°C ± 2°C, humidity ≤80%, | None |
| target distance 0.8 mtarget temperature 32°C...42°C) | None |
| Image analysis modes | Temperature indication, temp. alarm |
| File format | JPG |
| Interface | SD card slot (max. 32 GB), USB type C, tripod |
| Power supply | Li-Ion battery (operating time >8 hours), |
| built-in charger (charging time <2.5 hour), | None |
| AC adapter 110-230 V, 50/60 Hz | None |
| Operating temperature | -10°C...+50°C | 14°F...122°F |
| Storage temperature | -40°C...+70°C | -40°F...158°F |
| Ingress protection | IP54 |
Official manufacturer store
Fast shipping
Free delivery from 400 USD
Contact: office@soneltest.com
770 331 1393
0
Login

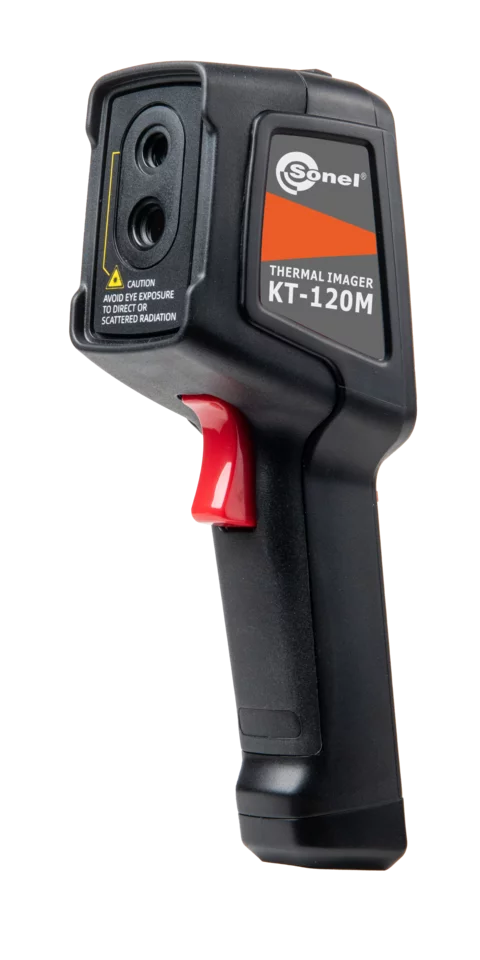

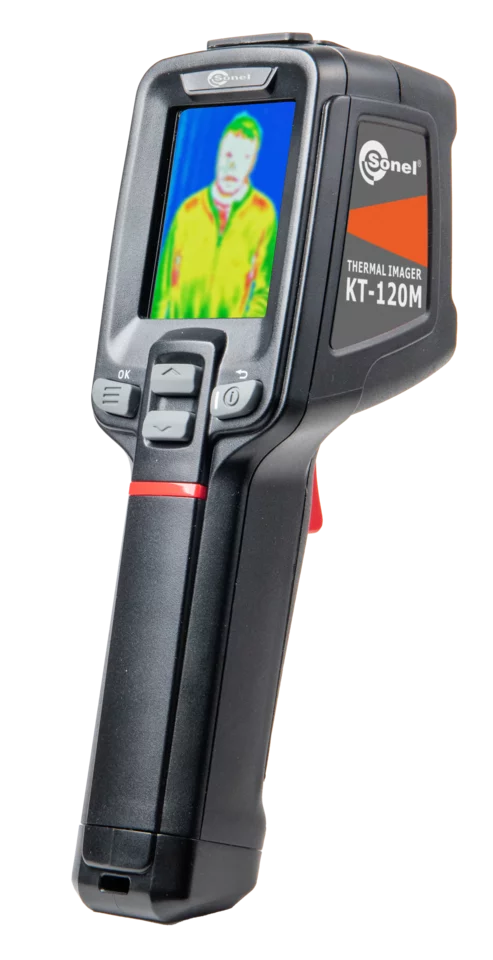

Step into thermal imaging with the Sonel KT-120M thermal imaging camera
KT-120M is a special camera. Economical, practical and handy, it is a powerful tool in preventing or limiting epidemics.

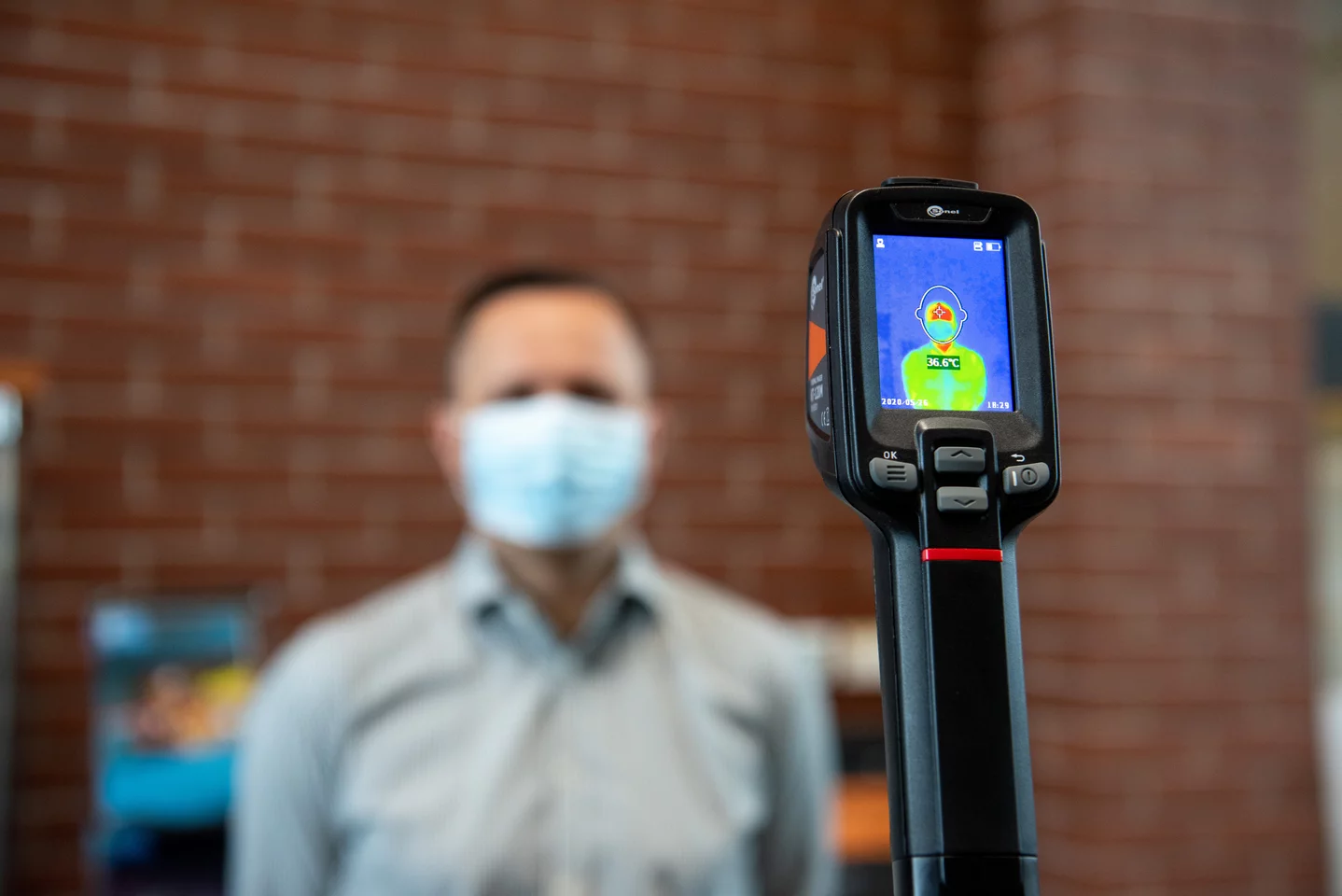

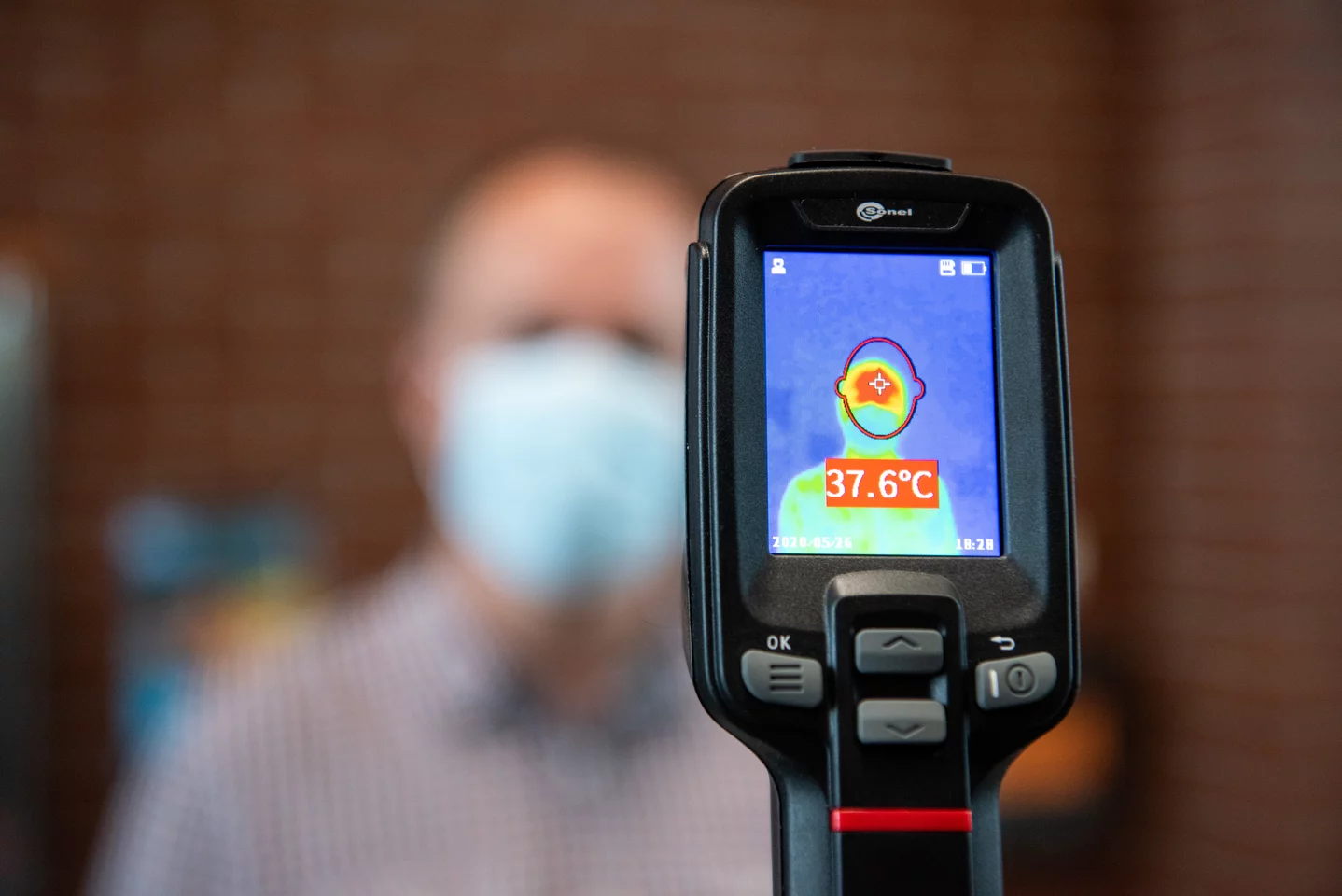

The user can measure the temperature with 0.5°C (0.9°F) accuracy. The exceeding of the threshold value is signalled by an alarm. All this in order to quickly and efficiently detect people with fever - e.g. infected with a virus giving such symptoms.
Zastosowania

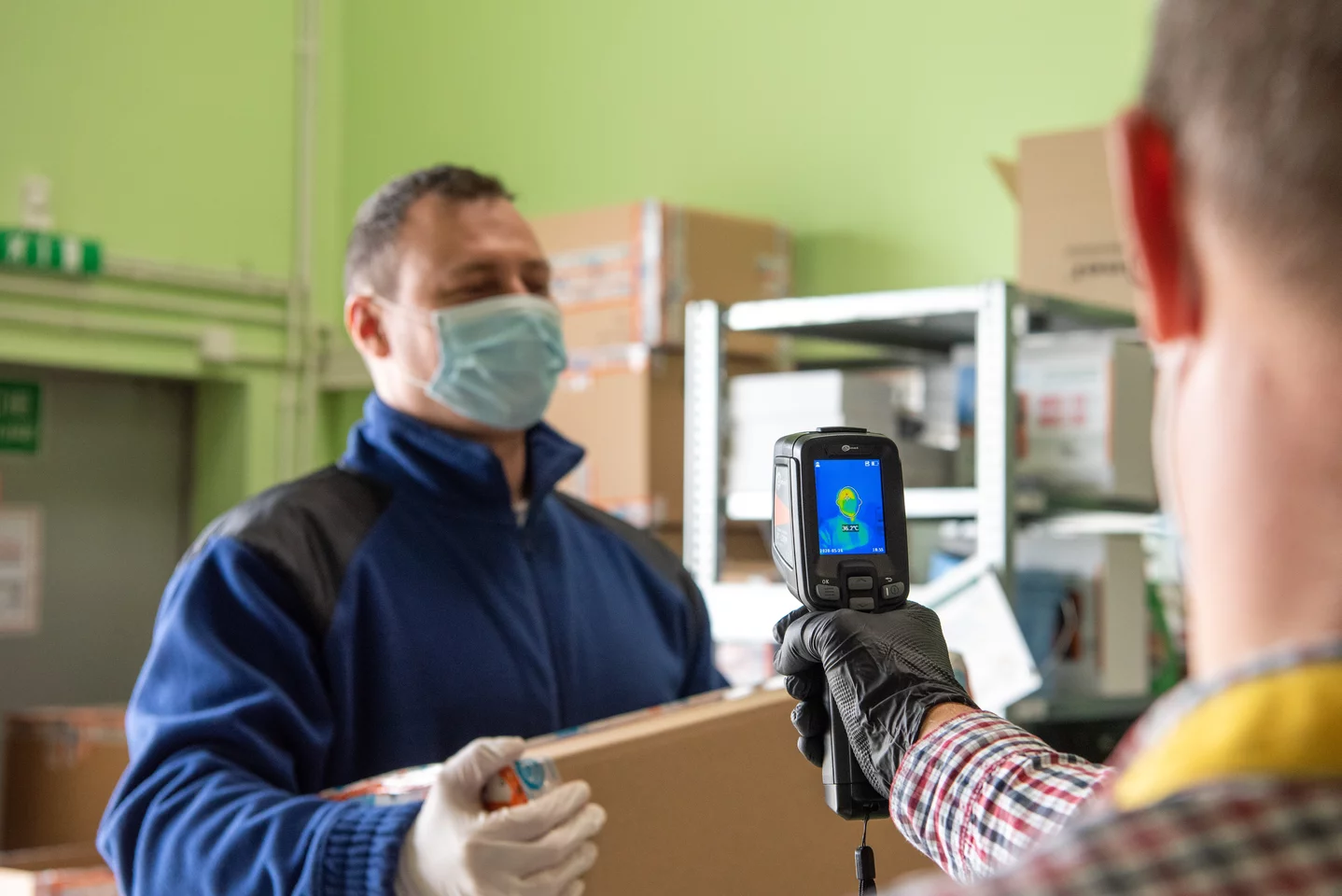

KT-120M is used wherever many people need to be tested for body temperature. Particularly useful in:
- factories,
- schools,
- shopping malls,
- office buildings.
Features
- measuring range 20°C...50°C (68°F...122°F)
- accuracy up to ±0.5°C (0.9°F)
- fast temperature measurement
- automatic signalling of fever detection
- saving IR images to SD card
- built-in Li-Ion battery with 8-hour working time
- interfaces: USB type C, SD slot
- can be set up on a tripod
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.3 |
| Package weight (kg) | 0.9 |
| Package width (cm) | 9.5 |
| Package height (cm) | 24 |
| Package length (cm) | 14.9 |
Accessories included with the meter
