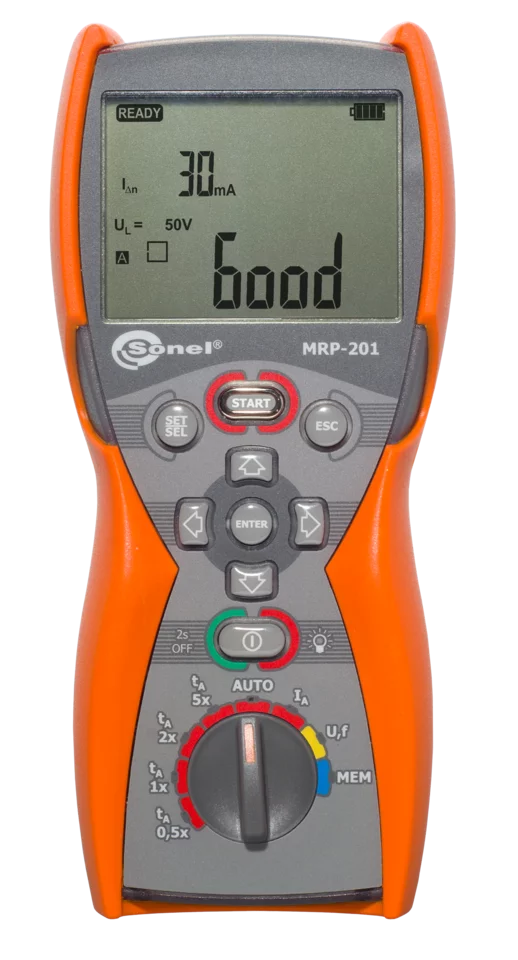

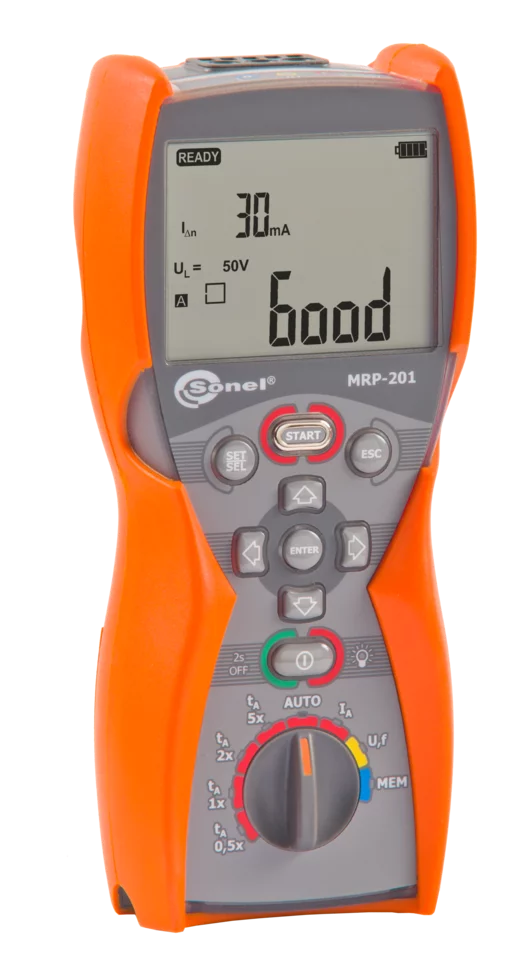

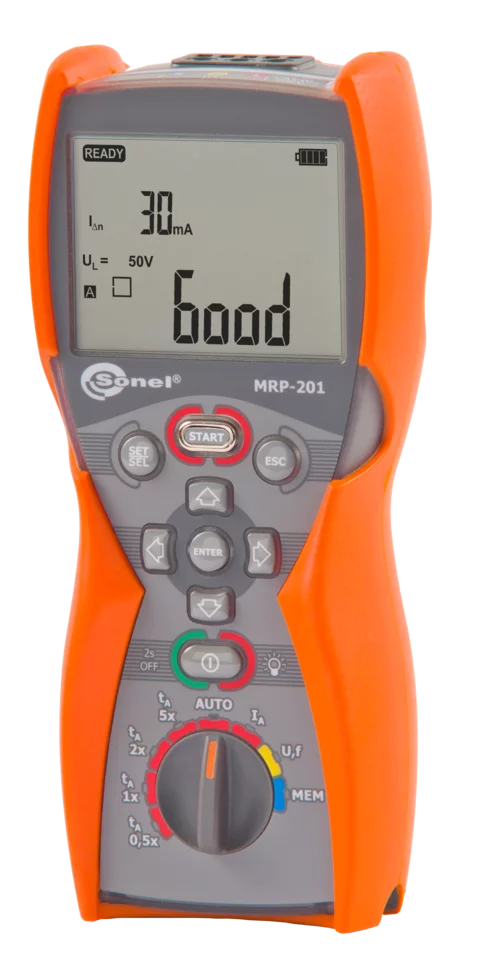

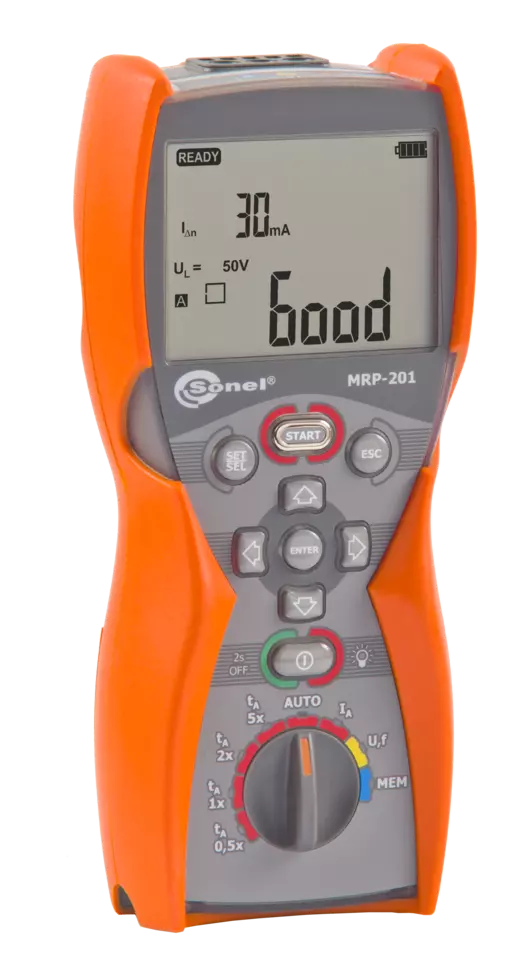

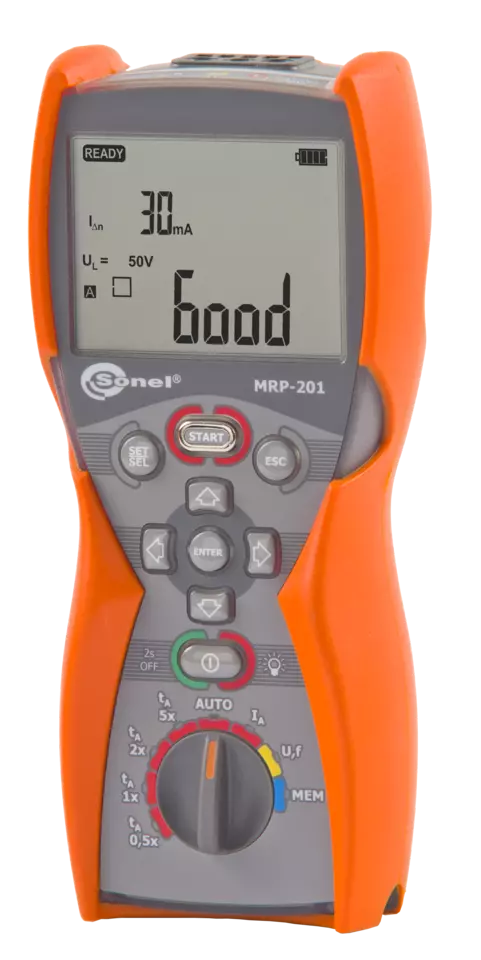

MRP-201
RCD Meter

Name: RCD Meter
Brand: Sonel
SKU: S70-WMUSMRP201
Price: 1127 USD
Availability: InStock

Index cat. WMUSMRP201

ean 5907624007284

Ingress protection: IP 67

Measurement category: CAT III 600 V, CAT IV 300 V

Data transmission: OR-2

Display: monochrome, backlit, segmented

1 127,00 $

Available

Delivery: up to 34 days

Inquiry for an offer

AGT-16P

Three-phase socket adapter 16 A (5P)

-32.77%

-29,25 $

89,25 $

60,00 $

Available

AGT-32P

Three-phase socket adapter 32 A (5P)

99,96 $

Available

Sonel Reports Plus

Software supports creation of documentation

261,00 $

In stock

Test lead 10 m 1 kV (banana plugs) red

48,20 $

Available

Test lead 20 m CAT III/1000V CAT IV/600V (b...

51,77 $

Available

Test lead 5 m 1 kV (banana plugs) red

39,27 $

Available

AGT-16T

Industrial socket adapter 16 A

110,67 $

Available

AGT-32C

Three-phase socket adapter 32 A (4P)

123,17 $

Available

AGT-32T

Industrial socket adapter 32 A

123,17 $

Available

AGT-63P

Three-phase socket adapter 63 A (5P)

232,05 $

Available

Specialist in residual current circuit breakers

The Sonel MRP-201 residual current circuit breaker meter is a specialist device for measuring all types of residual current circuit breakers - direct, short-delay, selective; types AC, A and B. It allows to measure tripping current, tripping time depending on differential current, resistance of protective conductor and contact voltage. Measurements can be performed individually or in series in automatic modes (all preset measurements for a given waveform or for all waveforms); simultaneous measurement of current and tripping time is also possible (with one RCD trip).

Features

Testing RCD breakers of AC, A, B types
- Testing of general, short delay and selective RCDs for the rated current values 10, 15, 30, 100, 300, 500 mA
- Measurement of I_A trip current and tripping time t_A for currents 0.5 I_Δn, 1 I_Δn, 2 I_Δn, 5 I_Δn
- R_E and U_B measurement without RCD tripping
- Extended AUTO function of RCD measurement
- Measurement of I_A and t_A during one RCD tripping

Additional functions

Checking the correctness of PE connection using a contact electrode
Measurement of voltage (0 … 500 V) and network frequency
Memory of 990 results
Wireless data transmission to a computer
Backlit keypad

Application areas

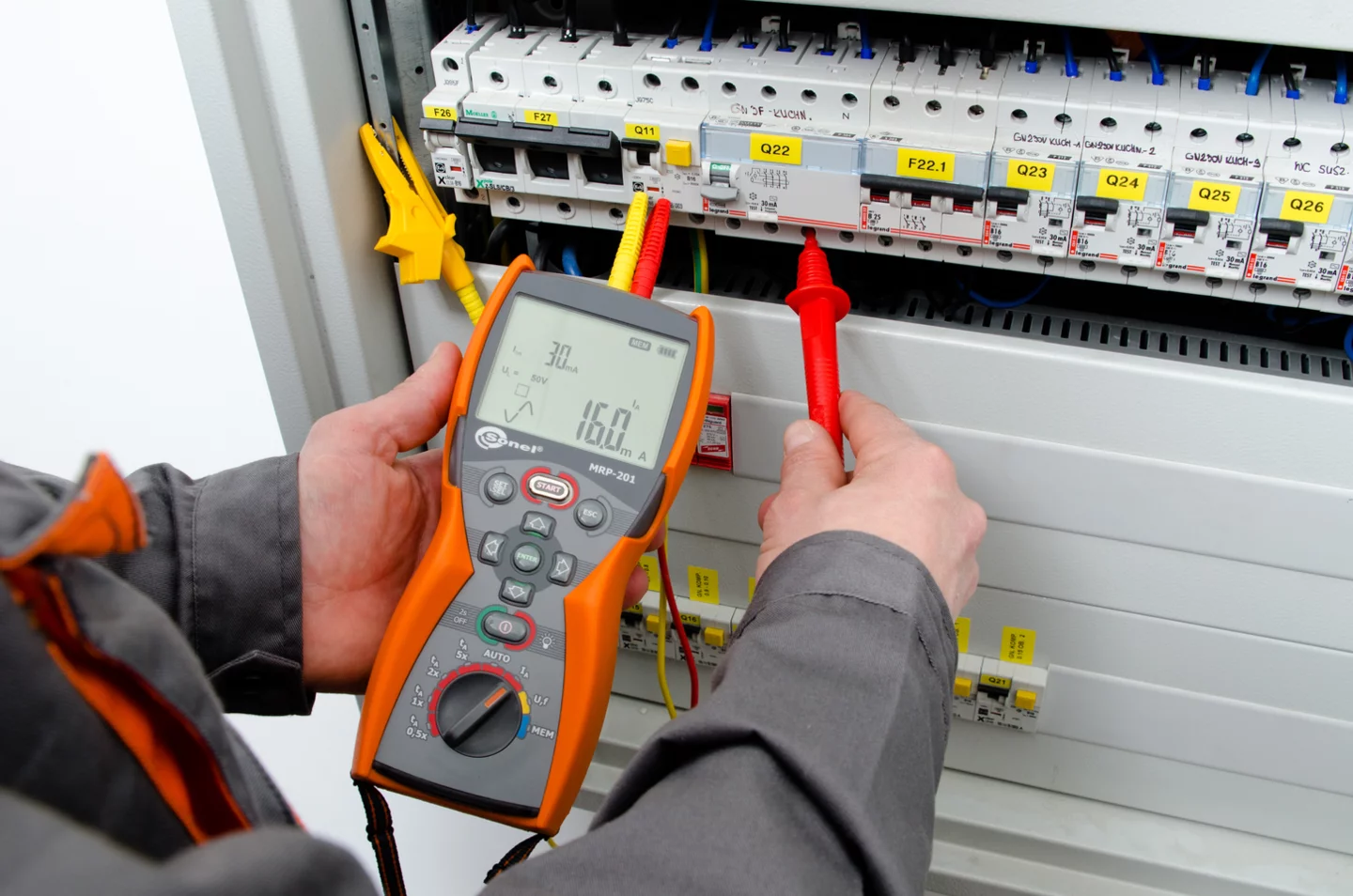

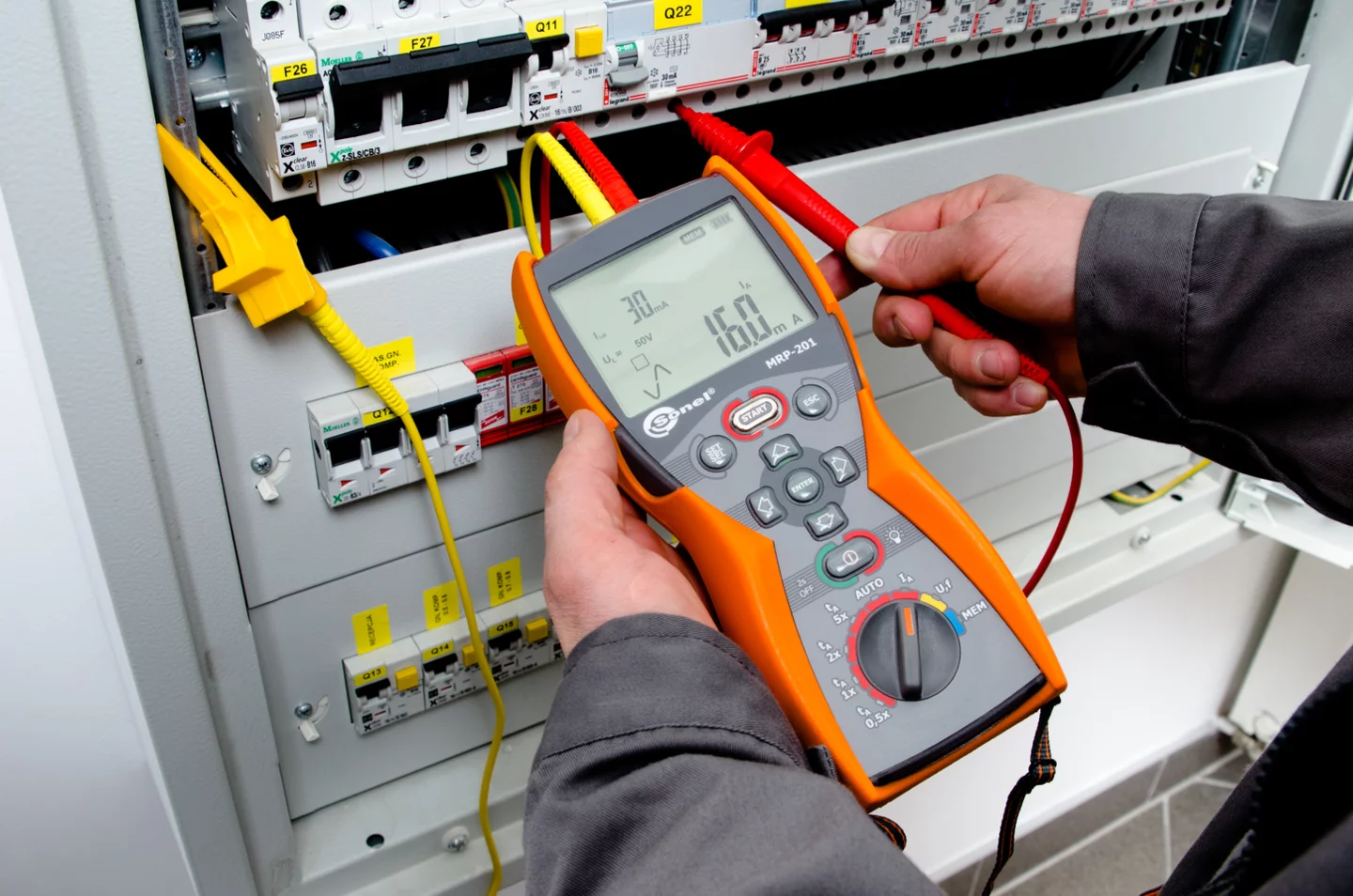

The meter enables the user to measure the parameters of residual-current devices (RCDs), such as time or operating current. The device is useful for testing electrical systems with circuits protected by RCDs of AC, A and B type.

Increased resistance to environmental conditions

The meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP67.

Communication and software

You can easily transfer measurement data to your computer via wireless communication. In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.

Weight and dimensions
