| Parameter | Value |
|---|---|
| Net weight (kg) | 0.5 |
| Package weight (kg) | 0.6 |
| Package width (cm) | 28.5 |
| Package height (cm) | 12 |
| Package length (cm) | 18 |
0
Login

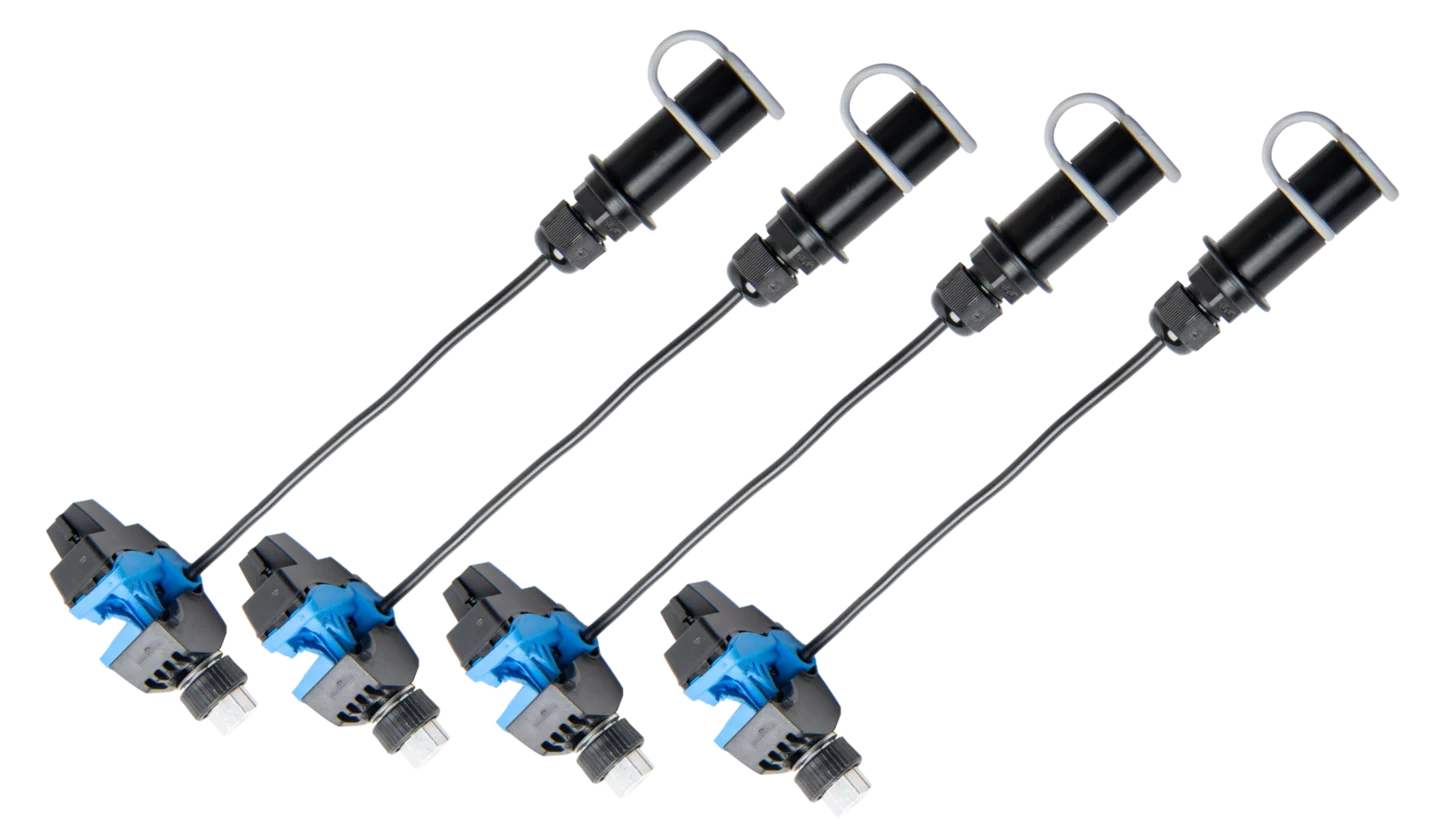

The adapter is designed for mounting on insulated lines with aluminum or copper core and a cross section of 16-150 mm² / 1.5-16 mm². ASX-1 consists of a piercing probe and a test lead with Φ4 mm terminal. The set includes 4 adapters. Both the body of the probe and the terminal are made of high quality composite material and elastomer – this guarantees resistance to atmospheric influences and UV radiation. The piercing element is made of stainless steel and the head - of aluminum, which ensures the repeatability of the tightening torque.
Files to download
