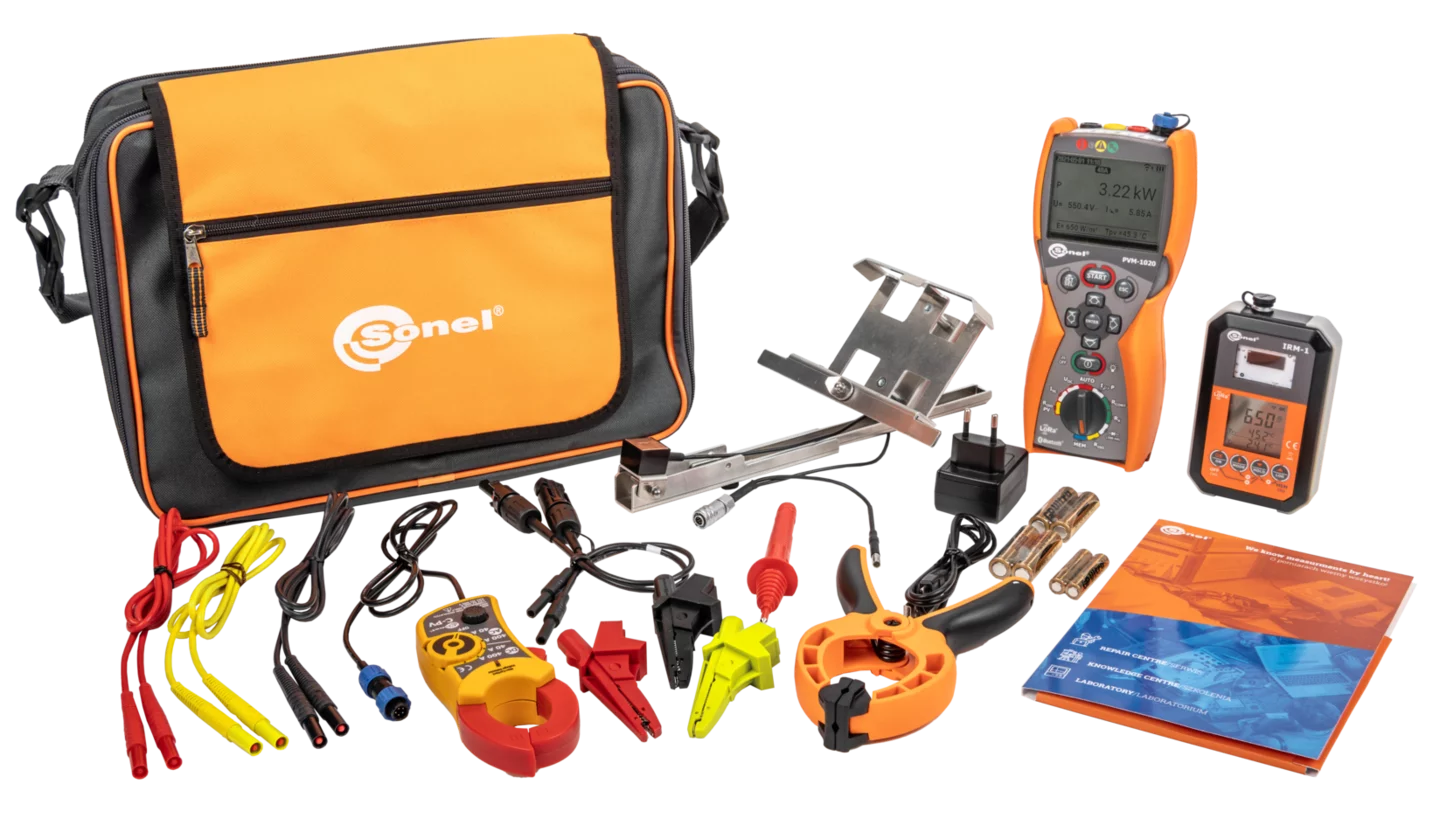

PVM-1020 KIT
Photovoltaic meters

Name: Photovoltaic meters
Brand: Sonel
SKU: S70-WMUSPVM1020KIT
Price: 2449 USD
Availability: InStock

Index cat. WMUSPVM1020KIT

ean 5907624015975

Measurement category: CAT II 1000 V DC, CAT III 600 V, CAT IV 300 V

2 449,00 $

Available

Delivery: up to 34 days

Inquiry for an offer

AGT-16P

Three-phase socket adapter 16 A (5P)

-32.77%

-29,25 $

89,25 $

60,00 $

Available

AGT-32P

Three-phase socket adapter 32 A (5P)

99,96 $

Available

Sonel Reports Plus

Software supports creation of documentation

261,00 $

In stock

AGT-16C

Three-phase socket adapter 16 A (4P)

110,67 $

Available

AGT-16T

Industrial socket adapter 16 A

110,67 $

Available

AGT-32C

Three-phase socket adapter 32 A (4P)

123,17 $

Available

AGT-32T

Industrial socket adapter 32 A

123,17 $

Available

AGT-63P

Three-phase socket adapter 63 A (5P)

232,05 $

Available

AC-16

Line splitter

80,33 $

Available

Pin probe CAT III/1000V CAT IV/600V (banana...

14,28 $

Available

Great capabilities in a small casing

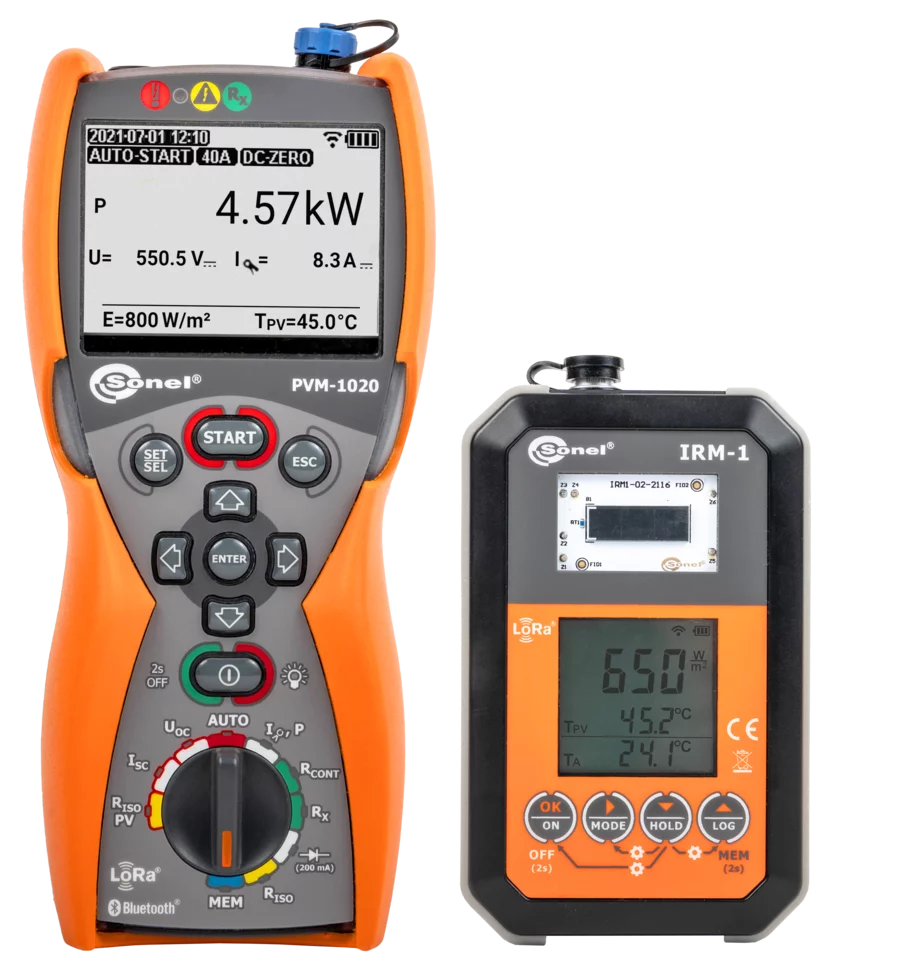

1. PVM-1020 photovoltaic meter

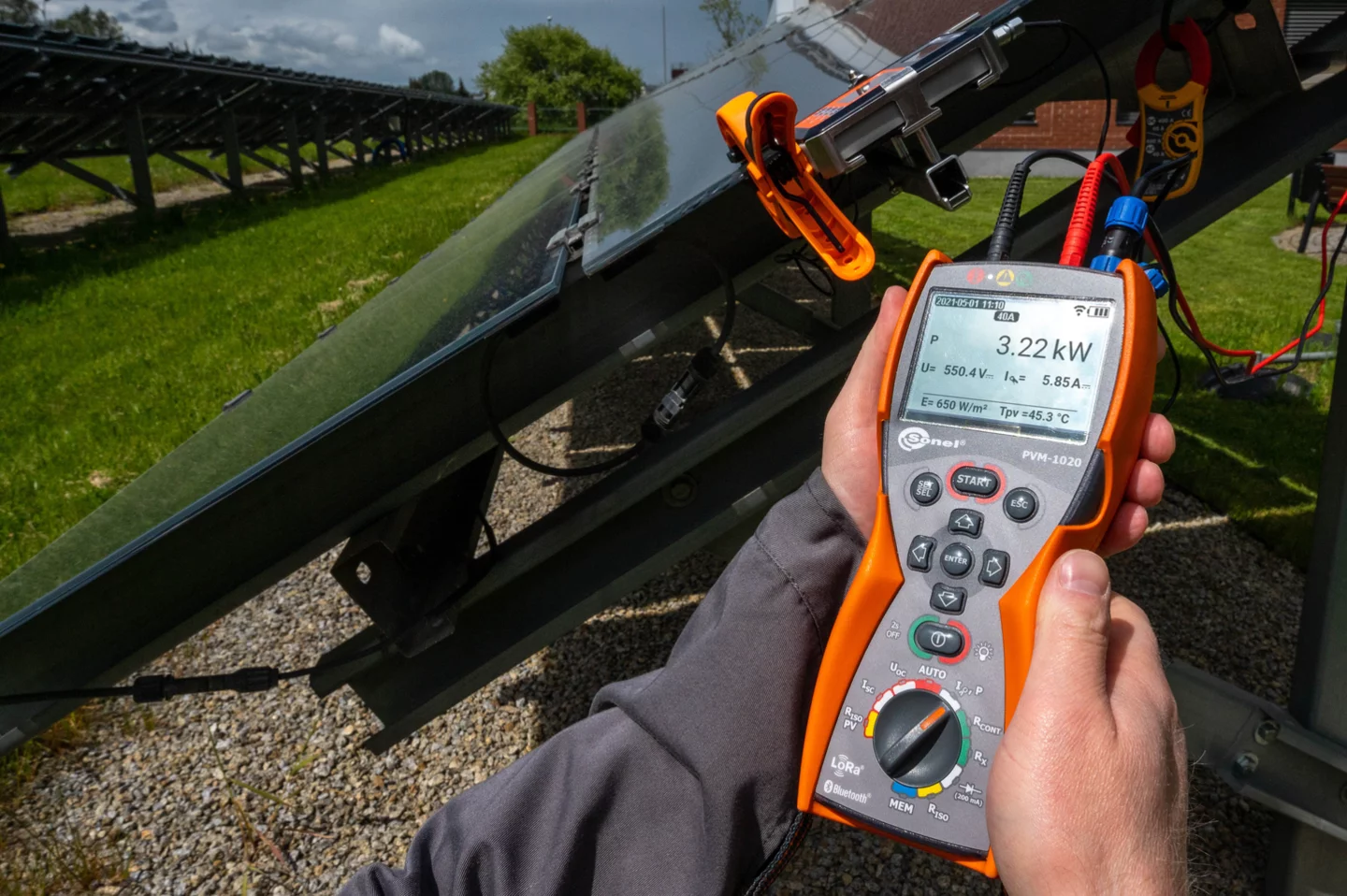

The Sonel PVM-1020 meter is probably the world's smallest photovoltaic system meter with such a substantial number of measurement functions. The functions are selected with a rotary switch. Additional parameters are set with buttons located on the housing. All buttons and the graphic display are backlit, which greatly facilitates operation in shaded places, e.g. when taking measurements under ground-mounted PV systems. Large memory significantly shortens preparation of documents after the measurement.

2. IRM-1 solar radiation and temperature meter

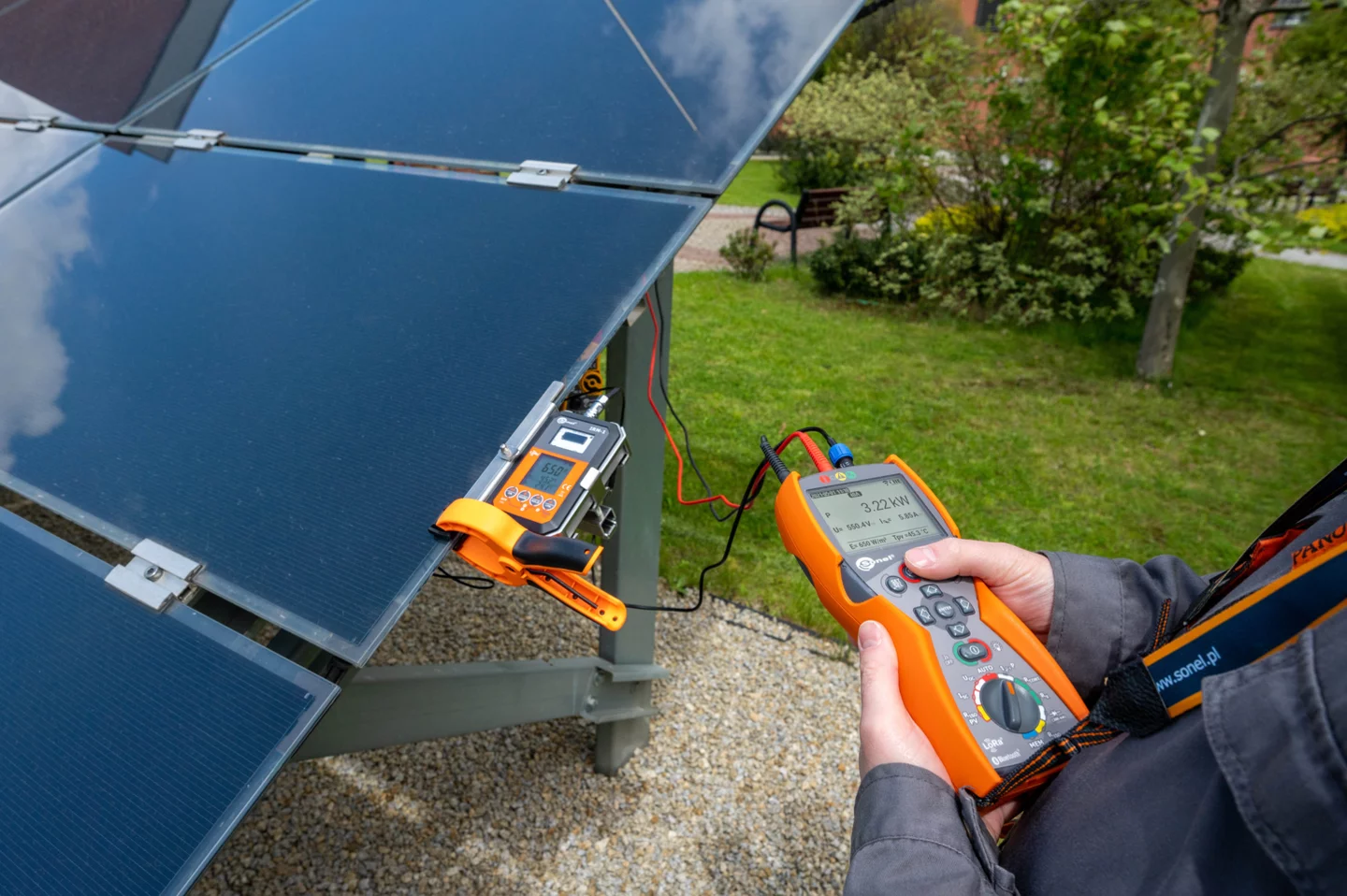

IRM-1, small, but indispensable for testing PV systems. By measuring solar radiation values, as well as panel and ambient temperatures, it provides the necessary data to convert the results into STC conditions. A built-in recorder with a memory of 5000 records enables the instrument to be used as a tool in the PV plant design process, as well as to diagnose panel shading problems.

PVM-1020 | Features

It can be used for category 1 measurements according to IEC 62446-1.
AUTO mode for performing a sequence of measurements after one press of the START button.
It converts measured parameters into STC conditions according to IEC 60891 by cooperation with the IRM-1 solar radiation and temperature meter.
reSYNC function – automatic completion of results with environmental parameters and their conversion to STC conditions after restoring connection with IRM-1.
The built-in LoRa radio interface ensures cooperation with the IRM-1 meter over long distances.
Built-in Bluetooth module for communication with a computer.
Large measurement memory: 100 objects with 40 cells each.
Backlit display and buttons.

PVM-1020 | Measured parameters

The open circuit voltage of the PV panel or a chain of panels, up to 1000V DC.
RMS voltage of the AC network up to 600 V with frequency measurement.
Short circuit current of a PV panel or chain of panels - up to 20 A DC.
Insulation resistance of PV panels - measuring voltage of 250, 500 or 1000 V, simultaneous measurement of two values: R_ISO+ and R_ISO-.
Insulation resistance of AC circuits - measuring voltage 250, 500 or 1000 V.
Resistance of protective conductors and equipotential bonding with ± 200 mA current. Low-current resistance measurement, audible and visual signalling.
Measurement of PV panels operating current and AC current - all with external clamp.
AC/DC power Measurement.
Diode test with 200 mA current, automatic polarity detection. Test of blocking diodes with 1000V DC voltage.

PVM-1020 | Szczelność i wytrzymałość

The meter performs well in harsh environmental conditions. Protection against the ingress of dust and water is provided by the housing rated at IP65. This is especially important for measurements on photovoltaic systems, which are outdoor installations.

PVM-1020 | Communication and software

Measurement data from the PVM-1020 can be transferred to a computer via Bluetooth wireless communication. Saving the downloaded data to popular formats and printing ensured by Sonel Reader. In order to generate a report on electric shock protection use the optional software: Sonel Reports PLUS.

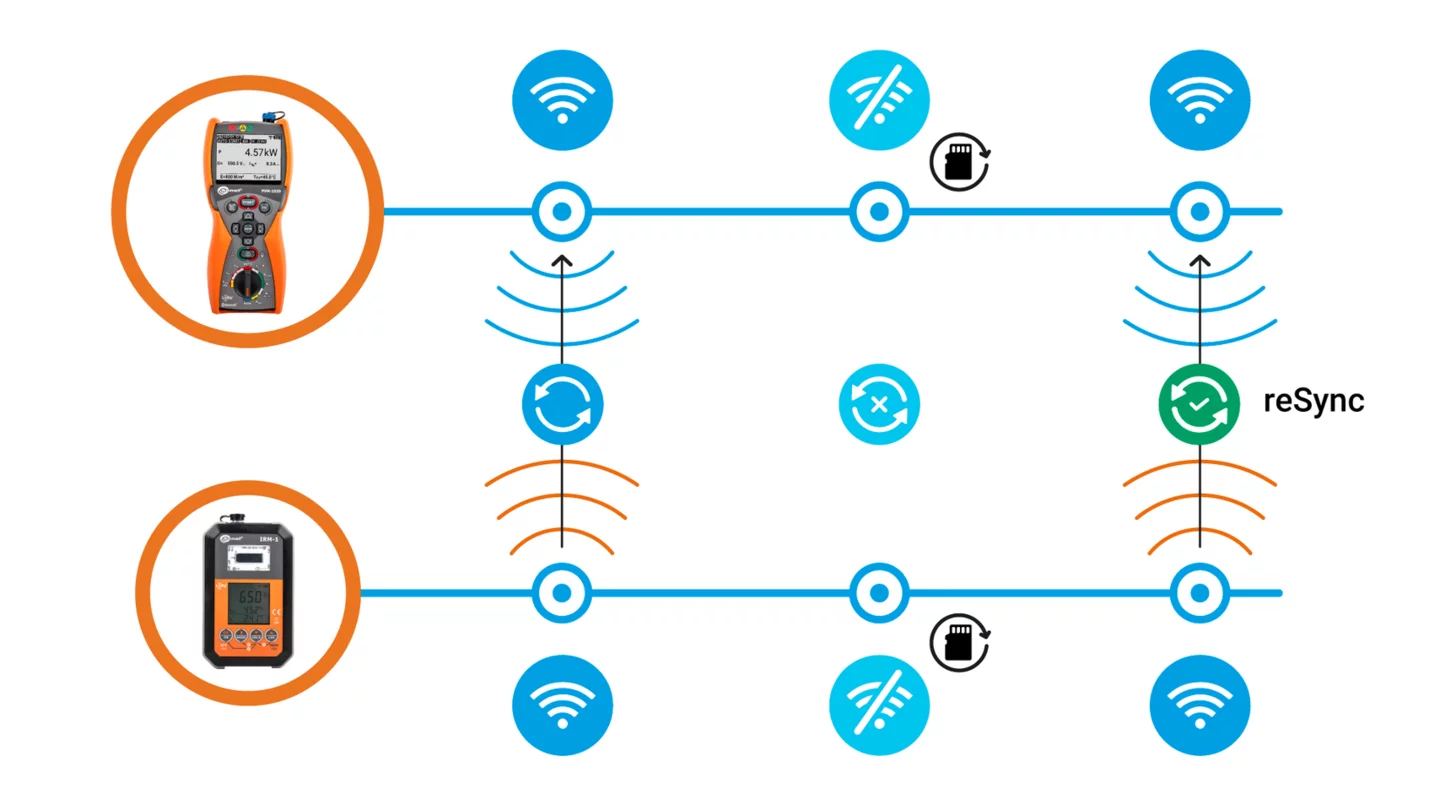

PVM-1020 | Trouble? reSYNC!

It may happen that in the course of measurements the master meter moves away from the IRM-1 so far, that communication between them is lost. If the measurements are continued, then after the connection is restored, the results will be automatically supplemented with environmental parameters, which in the meantime were recorded by the IRM-1 in its temporary memory, and converted into STC conditions.

IRM-1 | Features

Measurement of solar radiation and temperature.
The LoRa interface for communication with a master meter – offers a larger range than the Bluetooth technology!
Automatic data synchronization with a master meter with reSYNC function.
Built-in compass and inclination sensor.
Built-in recorder that can be used to record solar radiation before constructing PV systems, as well as to measure the shading of existing systems.
Large measurement memory: 999 cache memory cells and 5000 recorder records available (one-time recording) with the option of overwriting them (continuous recording).

IRM-1 | Measured parameters

Solar radiation intensity (irradiance) in W/m² or BTU/ft² h.
PV panel temperature in °C or °F.
Ambient temperature in °C or °F.
Inclination angle of panels
Orientation of the panels with the built-in compass.

IRM-1 | Tightness and durability

IRM-1 | Communication and software

Measurement data from the IRM-1 can be transferred to a computer via the USB port. In addition, the device has a built-in wireless LoRa interface (Long Range) for automatic data exchange with the master meter - even over long distances.

PVM-1020 | Specifications

Parameter	Measurement range	Display range	Resolution	Accuracy
Voltage
AC voltage	0.0 V…600.0 V	0.0 V…600.0 V	0.1 V	±(2% m.v. + 2 digits)
DC voltage	0.0 V…1000.0 V	0.0 V…1000.0 V	0.1 V	±(0.5% m.v. + 2 digits)
Short circuit current I_SC	0.0…20.0 A	0.0…20.0 A	0.1 A	±(1% m.v. + 2 digits)
Insulation resistance
Insulation resistance at AC side
Measuring voltage 250 V	250 kΩ…2.000 GΩ acc. to IEC 61557-2	0.0 kΩ…2.000 GΩ	from 0.1 kΩ	±(3% m.v. + 8 digits)
Measuring voltage 500 V	250 kΩ…5.000 GΩ acc. to IEC 61557-2	0.0 kΩ…5.000 GΩ	from 0.1 kΩ	±(3% m.v. + 8 digits)
Measuring voltage 1000 V	500 kΩ…9.999 GΩ acc. to IEC 61557-2	0.0 kΩ…9.999 GΩ	from 0.1 kΩ	±(3% m.v. + 8 digits)
Insulation resistance at DC side
Measuring voltage 250 V / 500 V / 1000 V	250 kΩ…1.000 GΩ acc. to IEC 61557-2	0.0 kΩ…1.000 GΩ	from 0.1 kΩ	±(3% m.v. + 8 digits)
Resistance of protective conductors and equipotential bondings
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current	0.10 Ω…1999 Ω acc. to IEC 61557-4	0.00 Ω…1999 Ω	from 0.01 Ω	±(2% m.v. + 3 digits)
Measurement of resistance with low current	0.0 Ω…1999 Ω	0.0 Ω…1999 Ω	from 0.01 Ω	±(3% m.v. + 3 digits)
Current measurement	0.0 A…400.0 A	0.0 A…400.0 A	from 0.01 Ω	±(5% m.v. + 2 digits)
Power measurement	0.0 kW…100.0 kW	0.0 kW…100.0 kW	0.1 kW	±(6% m.v. + 5 digits)

"m.v." – measured value

IRM-1 | Specifications

Parameter	Measurement range	Display range	Resolution	Accuracy
Irradiance
Measurement in W/m²	0 W/m² …1400 W/m²	0 W/m² …1400 W/m²	1 W/m²	±(5% m.v. + 2 digits)
Measurement in BTU/ft² h	0 BTU/ft² h…444 BTU/ft² h	0 BTU/ft² h…444 BTU/ft² h	1 BTU/ft²h	±(5% m.v. + 2 digits)
PV and ambient temperature
Measurement in °C	-20.0°C…100.0°C	-20.0°C…100.0°C	0.1°C	±(1% m.v. + 5 digits)
Measurement in °F	-4.0°F…212.0°F	4.0°F…212.0°F	0.1°F	±(1% m.v. + 5 digits)
Inclination angle	-90°…+90°	-90°…+90°	1°	±2°
Position direction - compass	0°…360°	0°…360°	1°	±5°
