| Range | Resolution | Test current | Accuracy |
|---|---|---|---|
| 0...999.9 μΩ | 0.1 μΩ | 10 A | ±(0.25% m.v. + 2 digits) |
| 1.0000...1.9999 mΩ | 0.0001 mΩ | 10 A | ±(0.25% m.v. + 2 digits) |
| 2.000...19.999 mΩ | 0.001 mΩ | 10 A | ±(0.25% m.v. + 2 digits) |
| 20.00...199.99 mΩ | 0.01 mΩ | 10 A / 1 A | ±(0.25% m.v. + 2 digits) |
| 200.0...999.9 mΩ | 0.1 mΩ | 1 A / 0.1 A | ±(0.25% m.v. + 2 digits) |
| 1.0000...1.9999 Ω | 0.0001 Ω | 1 A / 0.1 A | ±(0.25% m.v. + 2 digits) |
| 2.000...19.999 Ω | 0.001 Ω | 0.1 A | ±(0.25% m.v. + 2 digits) |
| 20.00...199.99 Ω | 0.01 Ω | 10 mA | ±(0.25% m.v. + 2 digits) |
| 200,0...1999.9 Ω | 0.1 Ω | 1 mA | ±(0.25% m.v. + 2 digits) |
Official manufacturer store
Fast shipping
Free delivery from 400 USD
Contact: office@soneltest.com
770 331 1393
0
Login
Additional accessories
Double-wire test lead 10 m U1/I1 with banan...
244,55 $
Available
Double-wire test lead 10 m U2/I2 with banan...
244,55 $
Available
Doble-wire test lead 6 m (10 /25 A) U1/ I1
141,02 $
Available
Doble-wire test lead 6 m (10 /25 A) U2/ I2
141,02 $
Available
2-core test lead 15 m blue (10 / 25 A) U2/I...
367,71 $
Available
2-core test lead 15 m blue (10 / 25 A) U1/I...
367,71 $
Available
2-pin Kelvin probe (banana connectors) - th...
76,75 $
Available
2-pin Kelvin probe (banana connectors)
60,69 $
Available
Kelvin vice with cables
171,36 $
Available
Low resistance within range
Product features
- measurement of very low resistance
- high immunity to disturbances
- easy operation
- big touchscreen
- automatic measurement mode
- autoranging
Application

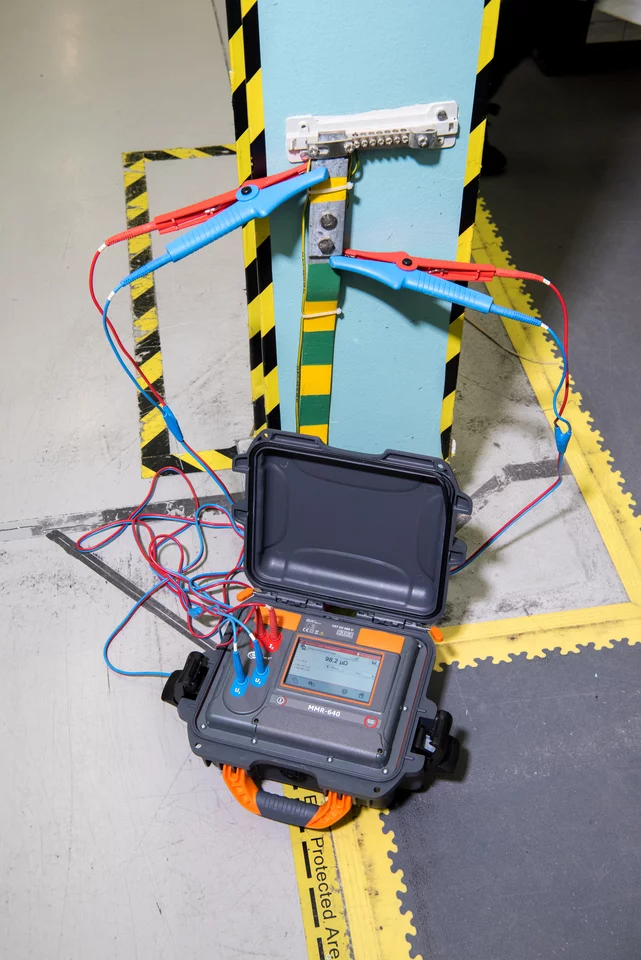

The MMR-640 meter is designed to measure very low resistance of resistive objects. This product is made to be used in power plants, railways and maintenance companies to measure resistance of:
- breakers, contacts,
- earthing conductors, equipotential bondings,
- welded and soldered connections,
- bolted connections,
- and other resistive objects. MMR-640 can be also utilized on production lines (eg. at the final production control stage).
Device capabilities

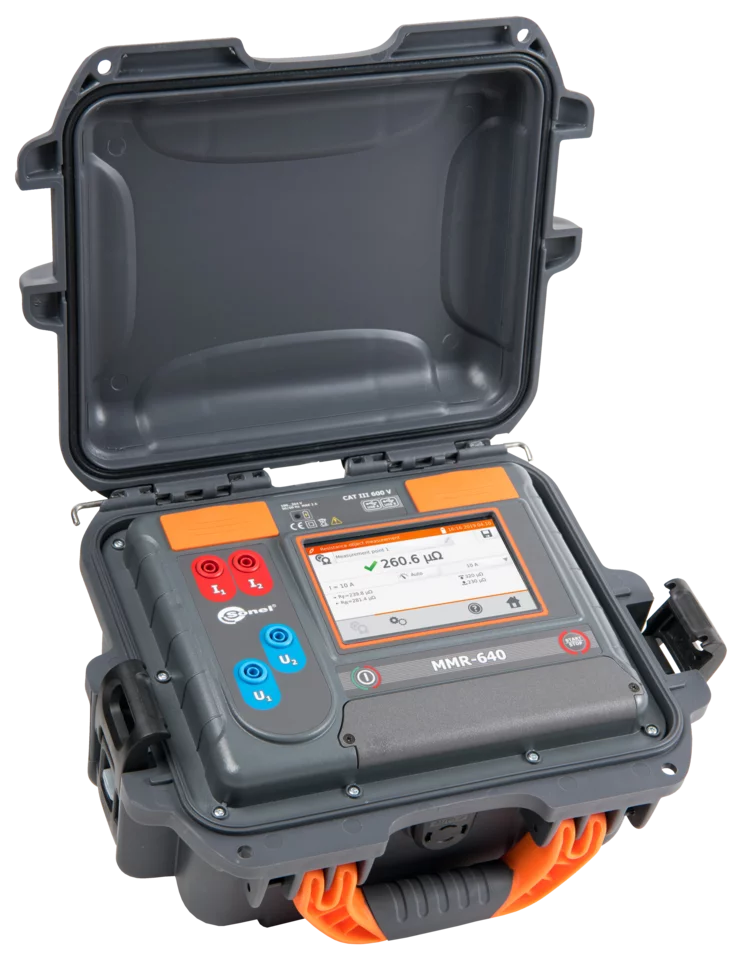

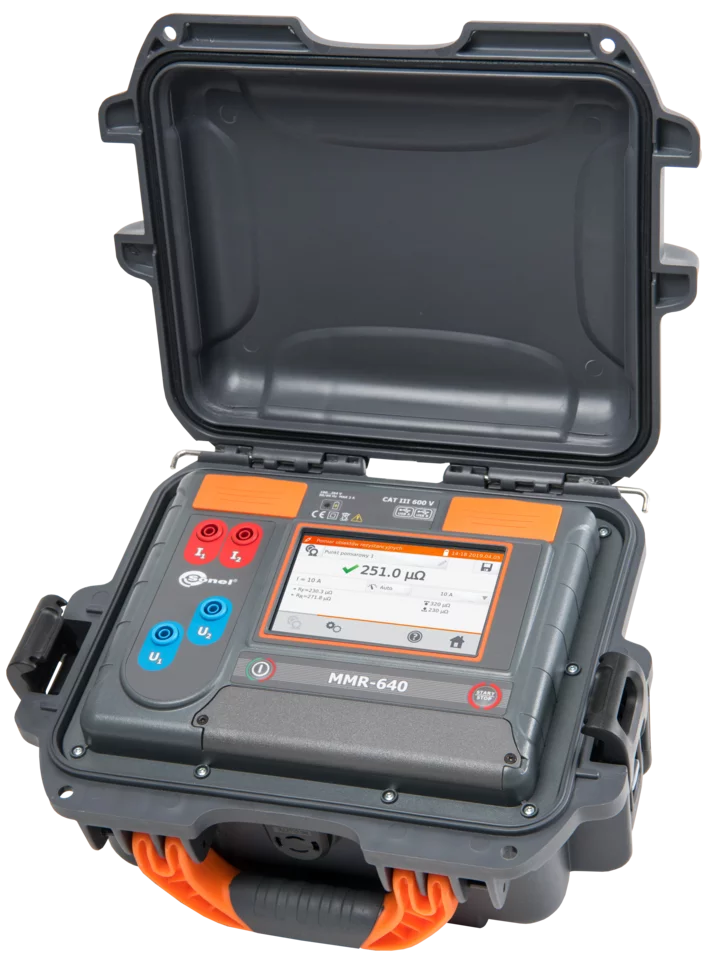

The MMR-640 meter provides an innovative combination of a high-performance measuring device with a modern user interface and advanced data management system.
Durable and practical casing
In response to the customers needs the MMR-640 has been designed to operate in difficult environmental conditions. A unique casing with the IP67 ingress protection rating ensures that the device is both waterproof and dustproof.
Easy readout

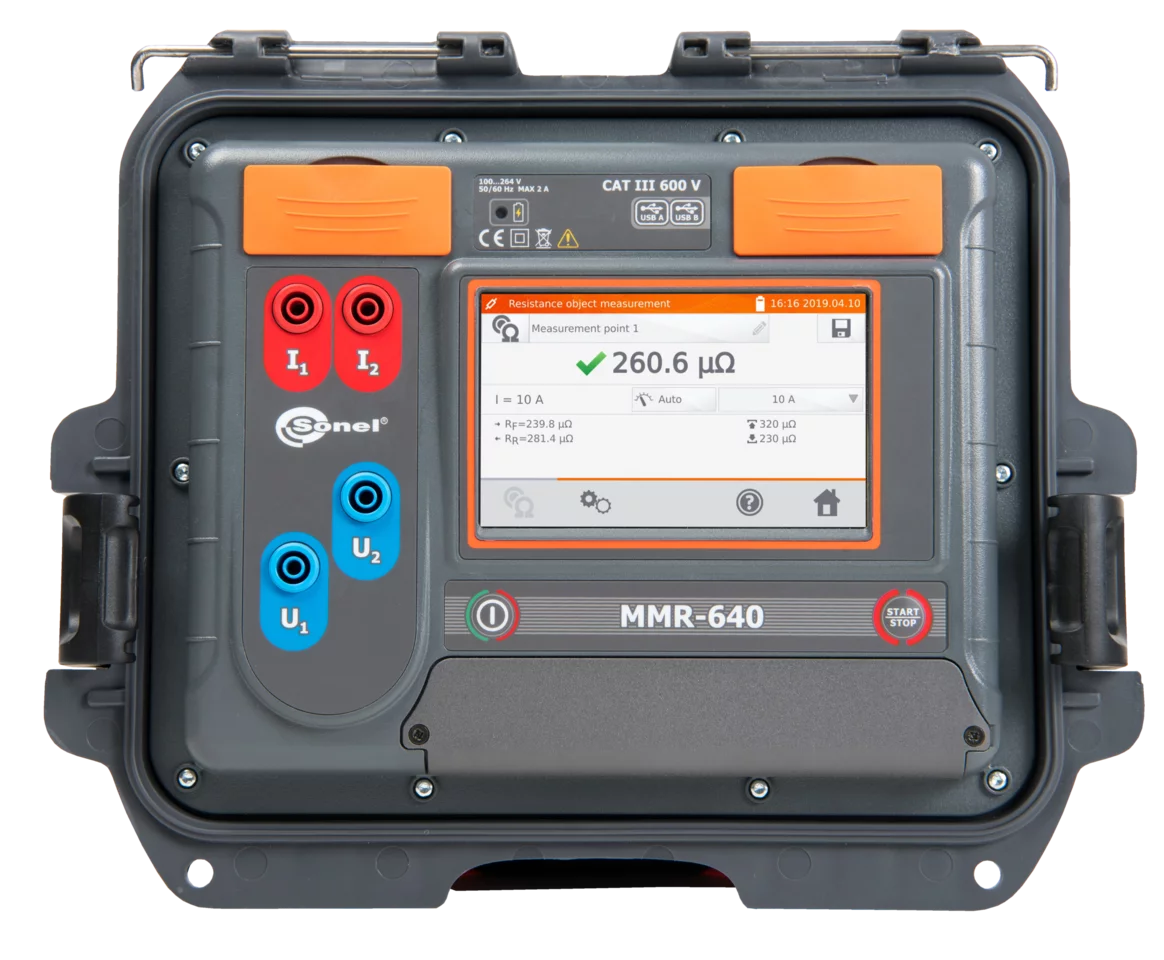

The MMR-640 meter is equipped with a readable colour touchscreen that, due to its 800 x 480 pixel resolution, provides both high comfort of interacting with the interface and high readability of the measurement results.
| Parameter | Value |
|---|---|
| Net weight (kg) | 3.4 |
| Package weight (kg) | 5.9 |
| Package width (cm) | 30.5 |
| Package height (cm) | 25 |
| Package length (cm) | 40.5 |
Accessories included with the meter
1 pcs
1 pcs
Additional accessories
Double-wire test lead 10 m U1/I1 with banana plugs
NO. CAT. WAPRZ010DZBBU1I1
Available
Delivery: up to 4 days
244,55 $
Double-wire test lead 10 m U2/I2 with banana plugs
NO. CAT. WAPRZ010DZBBU2I2
Available
Delivery: up to 4 days
244,55 $
Doble-wire test lead 6 m (10 /25 A) U1/ I1
NO. CAT. WAPRZ006DZBBU1I1
Available
Delivery: up to 4 days
141,02 $
Doble-wire test lead 6 m (10 /25 A) U2/ I2
NO. CAT. WAPRZ006DZBBU2I2
Available
Delivery: up to 4 days
141,02 $
2-core test lead 15 m blue (10 / 25 A) U2/I2
NO. CAT. WAPRZ015DZBBU2I2
Available
Delivery: up to 4 days
367,71 $
2-core test lead 15 m blue (10 / 25 A) U1/I1
NO. CAT. WAPRZ015DZBBU1I1
Available
Delivery: up to 4 days
367,71 $
2-pin Kelvin probe (banana connectors) - thick pins
NO. CAT. WASONKEL2OGB2
Available
Delivery: up to 4 days
76,75 $
2-pin Kelvin probe (banana connectors)
NO. CAT. WASONKEL2OGB
Available
Delivery: up to 4 days
60,69 $

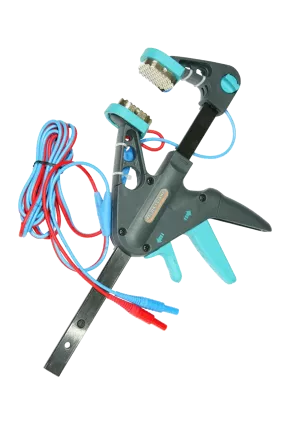

Kelvin vice with cables
NO. CAT. WAZACKEL1
Available
Delivery: up to 4 days
171,36 $
