| Parameter | Description |
|---|---|
| Basic technical specifications | |
| Max measuring voltage | 1000 V DC |
| Nominal resistance values | 10 MΩ, 22 MΩ, 51 MΩ, 68 MΩ |
| Nominal value accuracy | ±1% |
| Safety and conditions for use | |
| Ingress protection | IP40 |
| Insulation type according to EN 61010-1 | double |
| Operating temperature | -0…+60°C | 32°F…140°F |
| Storage temperature | -30…+65°C | -22°F…165°F |
| Humidity | 20…90% |
| Other information | |
| Quality standard – development, design and production | ISO 9001 |
0
Login

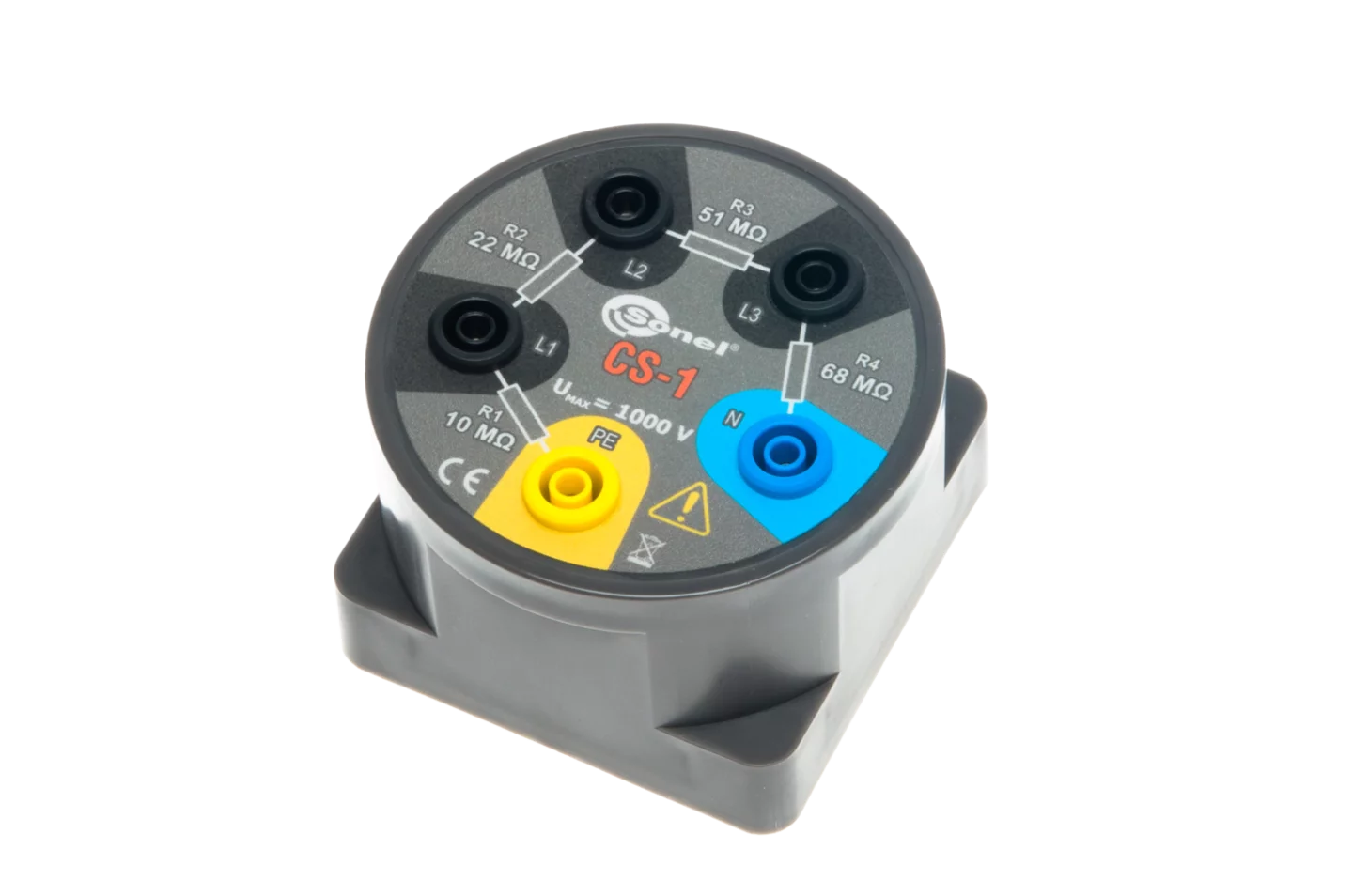

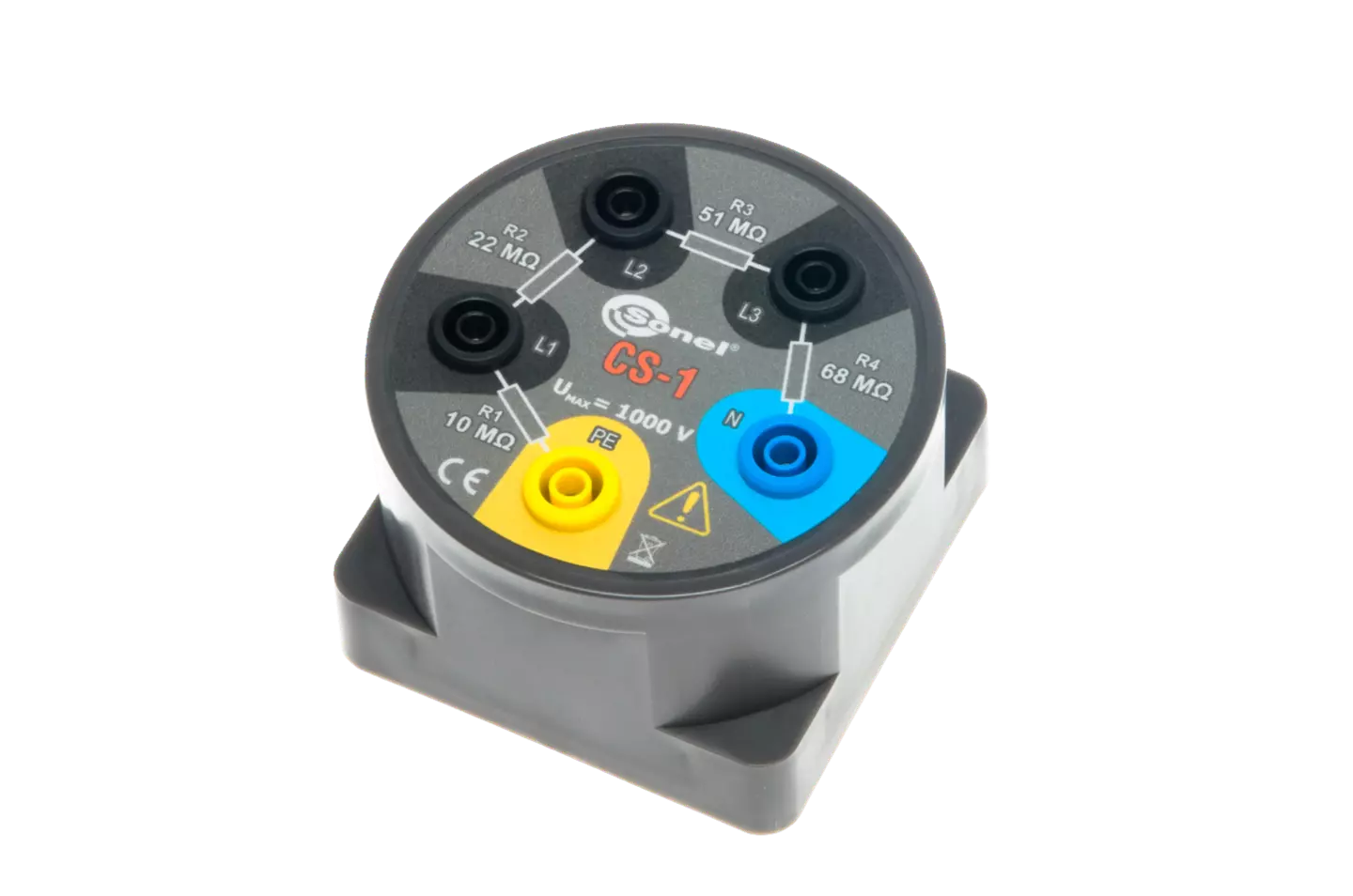

Designed for insulation resistance simulation of power cables. Equipped with highly accurate resistors. Intended for training, presentation and auxiliary purposes – for instance in a situation, where general estimation of the measurement correctness is needed. CS-1 enables the measurement of four resistance values and their combination. The device utilizes 4 mm banana plugs. Its casing is characterized by high resistance to mechanical damage.
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.1 |
| Package weight (kg) | 0.1 |
| Package width (cm) | 16 |
| Package height (cm) | 27.5 |
| Package length (cm) | 6 |
Files to download
This product fits:
