| S-25 DC Hipot | S-50 DC Hipot | S-80 DC Hipot | S-110 DC Hipot | S-120 DC Hipot | |
|---|---|---|---|---|---|
| Power supply | • internal rechargeable battery • mains, switchable 115 / 230 V, 50-60 Hz • external DC voltage source |
mains 220…240 V, 50 / 60 Hz (optional: 115 V / 60 Hz | mains 220…240 V, 50 / 60 Hz (optional: 115 V / 60 Hz | mains 220…240 V, 50 / 60 Hz (optional: 115 V / 60 Hz | mains 220…240 V, 50 / 60 Hz (optional: 115 V / 60 Hz |
| Power consumption | max. 120 VA | max. 900 VA | max. 900 VA | max. 900 VA | max. 900 VA |
| Output voltage | • 0…25 kV DC • infinitely adjustable • negative polarity • ripple < 0,25% |
• 0…50 kV DC • infinitely adjustable • negative polarity |
• 0…80 kV DC • infinitely adjustable • negative polarity |
• 0…110 kV DC • infinitely adjustable • negative polarity |
• 0…120 kV DC • infinitely adjustable • negative polarity |
| Rated output current at max. output voltage | 1.5 mA electronically limited | 6 mA | 5 mA | 4 mA | 3,5 mA |
| Battery operation at full load | 45 min | - | - | - | - |
| Discharge - integrated automatic discharge device | 3000 J 9.6 µF at 25 kV | 7500 J 6 µF at 50 kV | 12 250 J 4 µF at 75 kV 3.5 µF at 80 kV | 15 000 J 3 µF at 100 kV 2.5 µF at 110 kV | 18 750 J 2.4 µF at 125 kV 2.6 µF at 120 kV |
| Voltage measuring range | 0…30 kV | 0…50 kV | 0…80 kV | 0…110 kV | 0…130 kV |
| Current measuring ranges | 0…200 µA / 0…2 mA manual or automatic switching between ranges | 0…100 μA / 1 mA / 10 mA manual switching between ranges | 0…100 μA / 1 mA / 10 mA manual switching between ranges | 0…100 μA / 1 mA / 10 mA manual switching between ranges | 0…100 μA / 1 mA / 10 mA manual switching between ranges |
| Operating temperature | -25…+55°C -13…+131°F |
-25…+55°C -13…+131°F |
-25…+55°C -13…+131°F |
-25…+55°C -13…+131°F |
-25…+55°C -13…+131°F |
| Storage temperature | -40…+70°C -40…+158°F |
-40…+70°C -40…+158°F |
-40…+70°C -40…+158°F |
-40…+70°C -40…+158°F |
-40…+70°C -40…+158°F |
Precision Defined. Period.
Engineered for Safety.
Powering Your Performance.
Contact: office@soneltest.com
0
Login
MV and HV insulation under full control

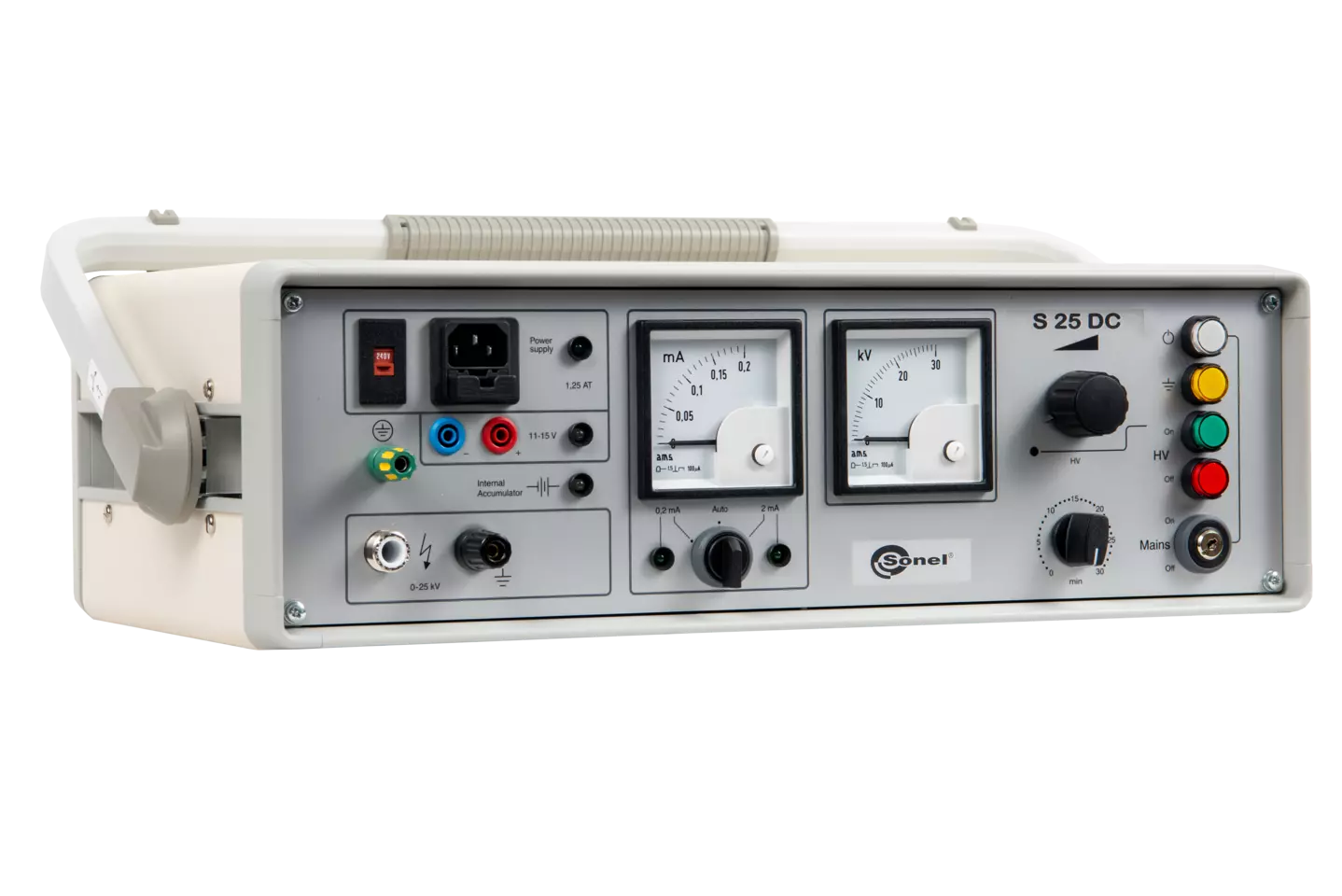

The S-25 DC device is universal high voltage tester. Capacitive loads, such as shielded power cables, will be properly and automatically discharged in case of an error or at the end of testing time by the integrated discharge device
Key switch, switch-on interlock and a protective ground circuit ensure maximum safety.
S-25 DC stands out in particular. Not just with modest dimensions. Thanks to an internal rechargeable battery it enables mains-independent testing.
⚠️ Important information!
By purchasing this product, you receive free operational training at the professional Sonel testing grounds. The training is conducted on an individual basis. As the program and organizational details are tailored to specific needs each time, all information regarding the training is provided by the Customer Service Department, which should be contacted to discuss the details.
Features
- Easy operation
- Robust construction, low weight
- Integrated timer:
- max. 30 min
- Discharge device:
- integrated
- Internal battery charger with deep discharge protection
- Voltage measurement direct at HV output
- Short-circuit-proof output:
- electronically limited output current
- Protective ground connection
- Mains-independent by internal rechargeable battery
Fields of application
- Testing at recommissioning of cable systems after maintenance and repair
- Testing of newly installed cables an cable joints before commissioning
- Voltage testing at cable sheath
- Testing of electrical equipment
| Parameter | Value |
|---|---|
| Net weight (kg) | 16.8 |
| Package weight (kg) | 19.1 |
