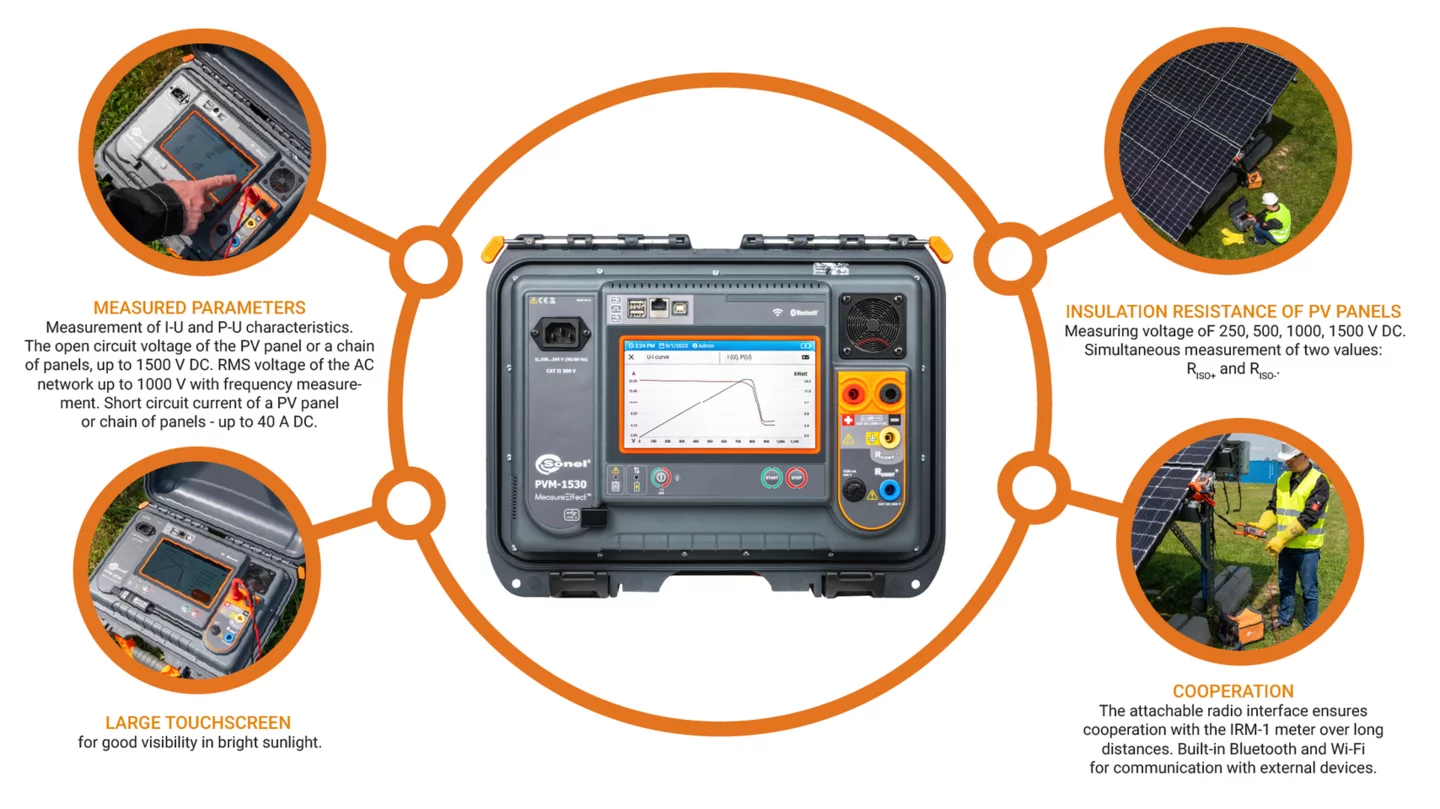

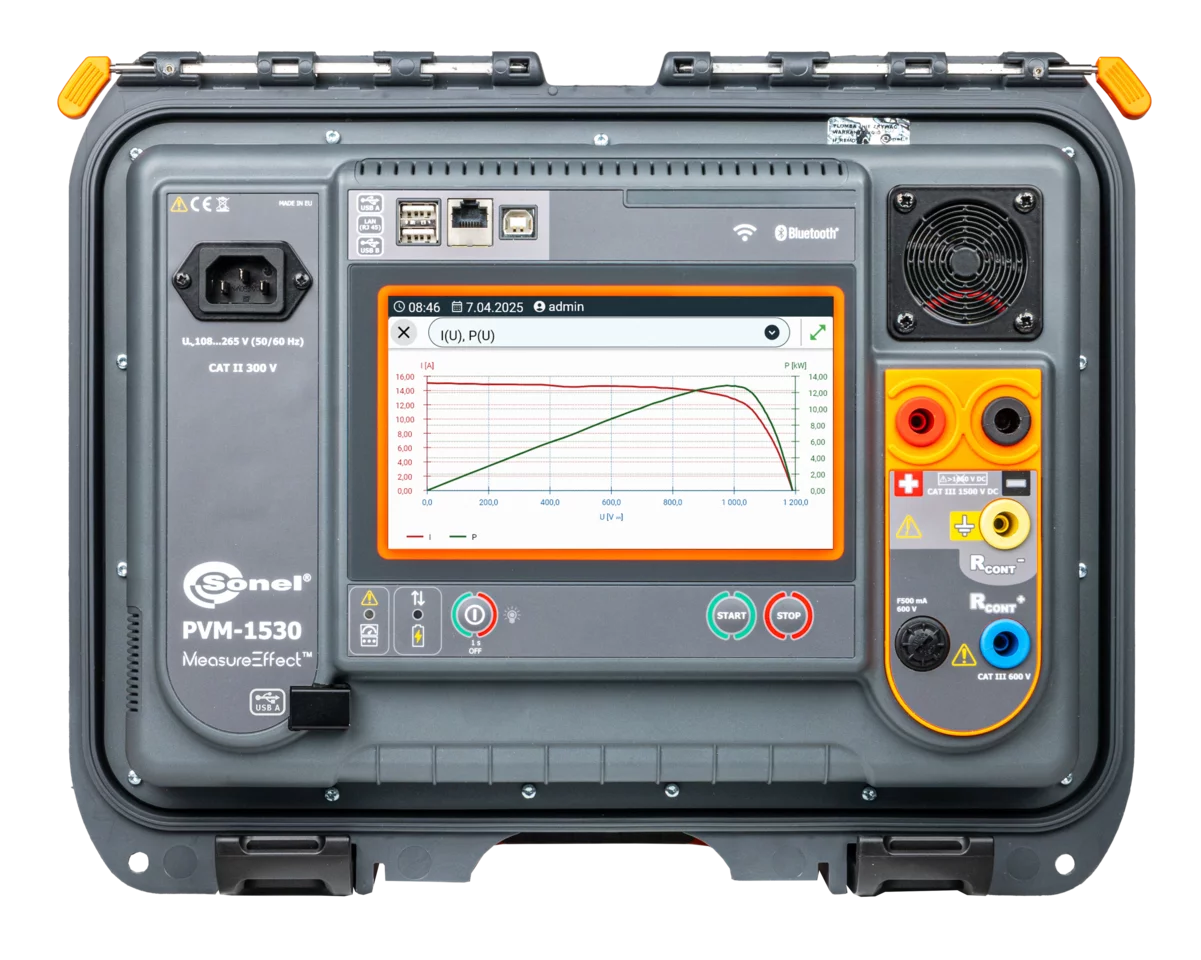

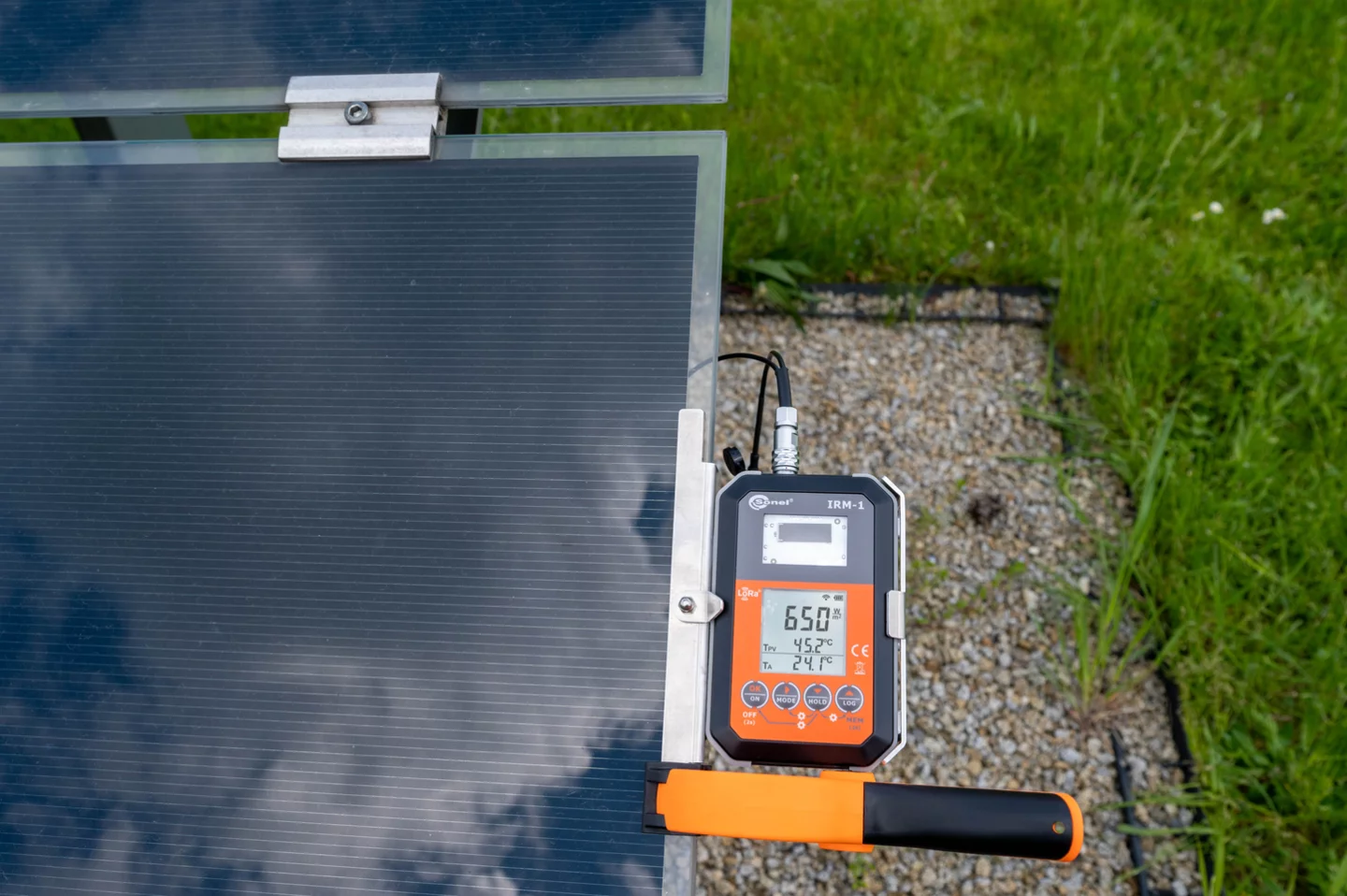

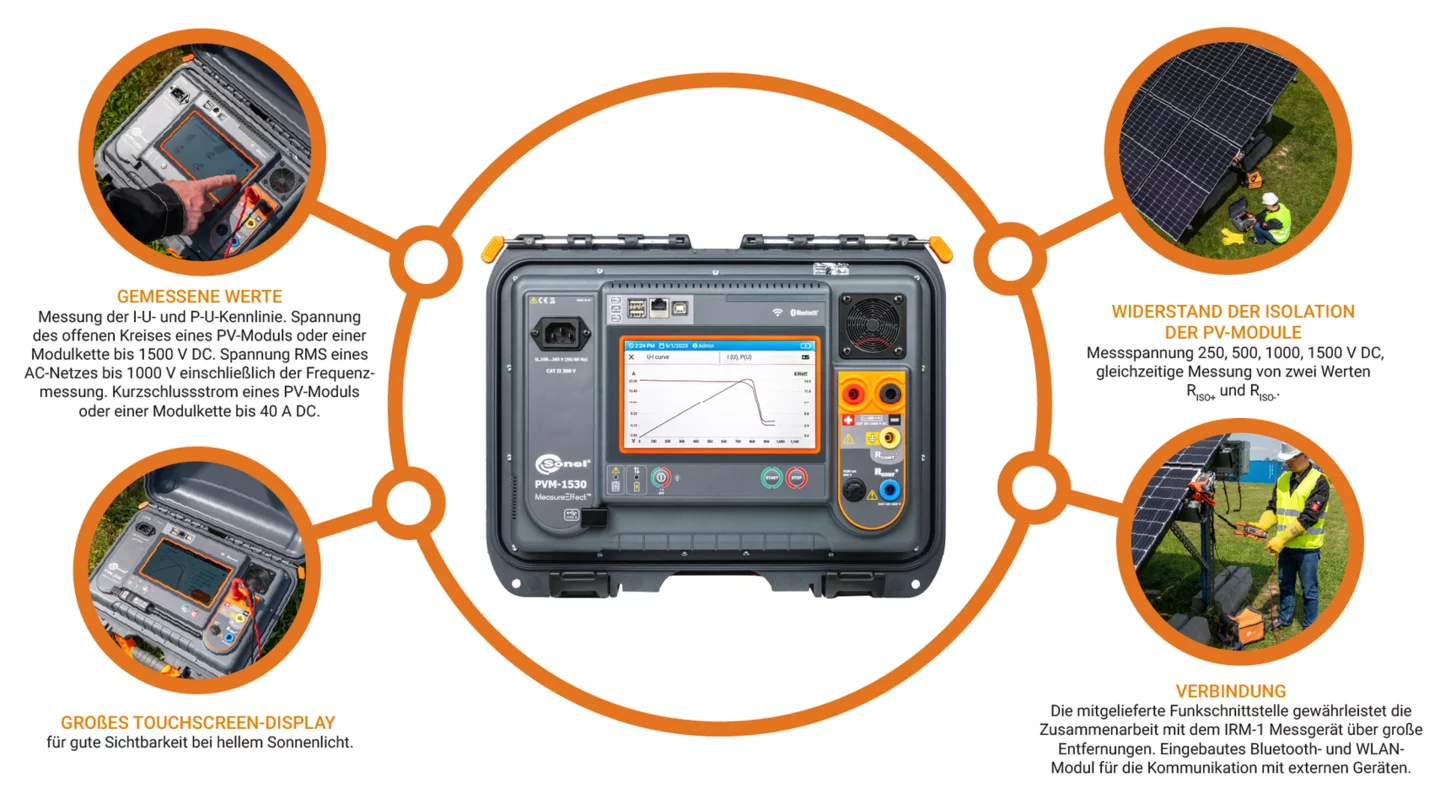

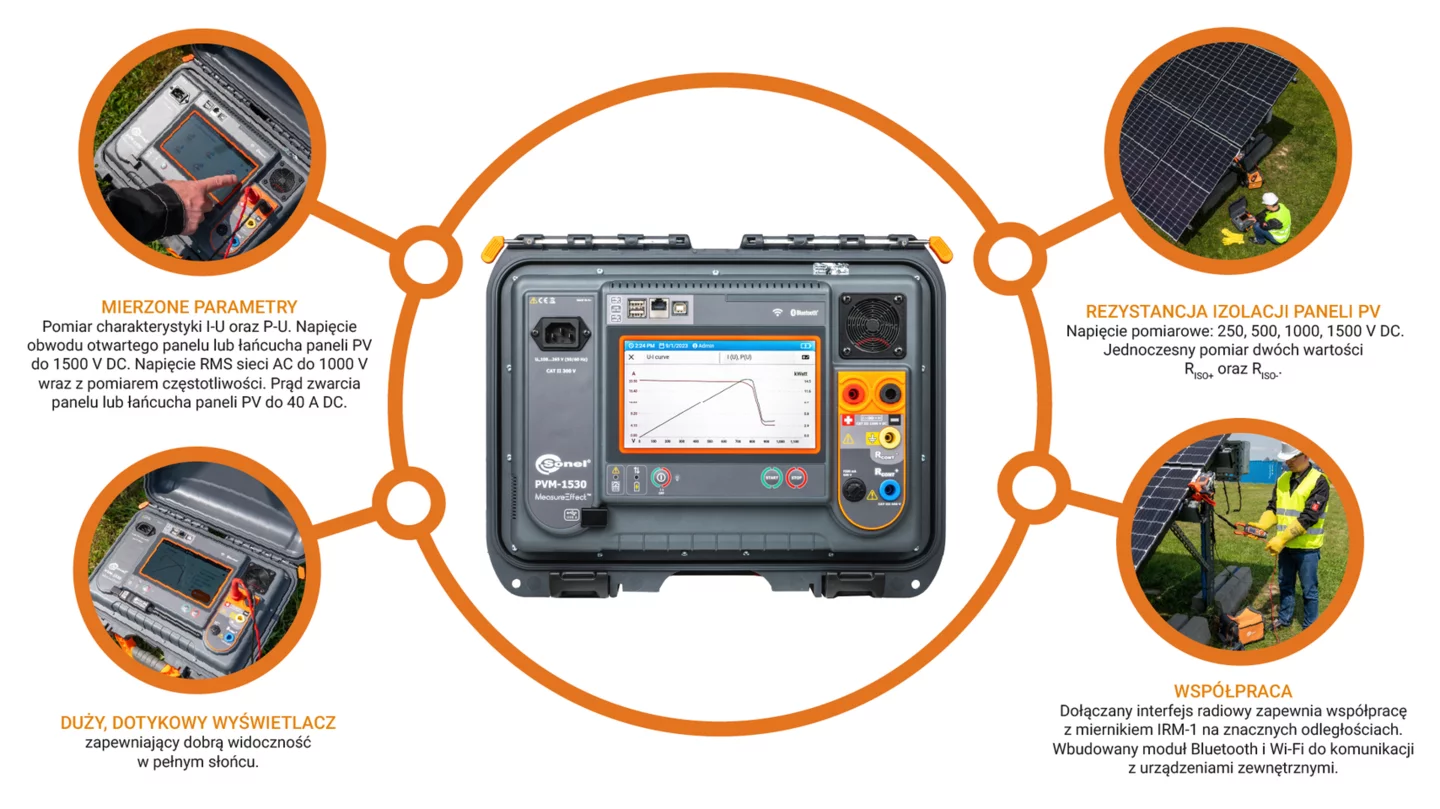

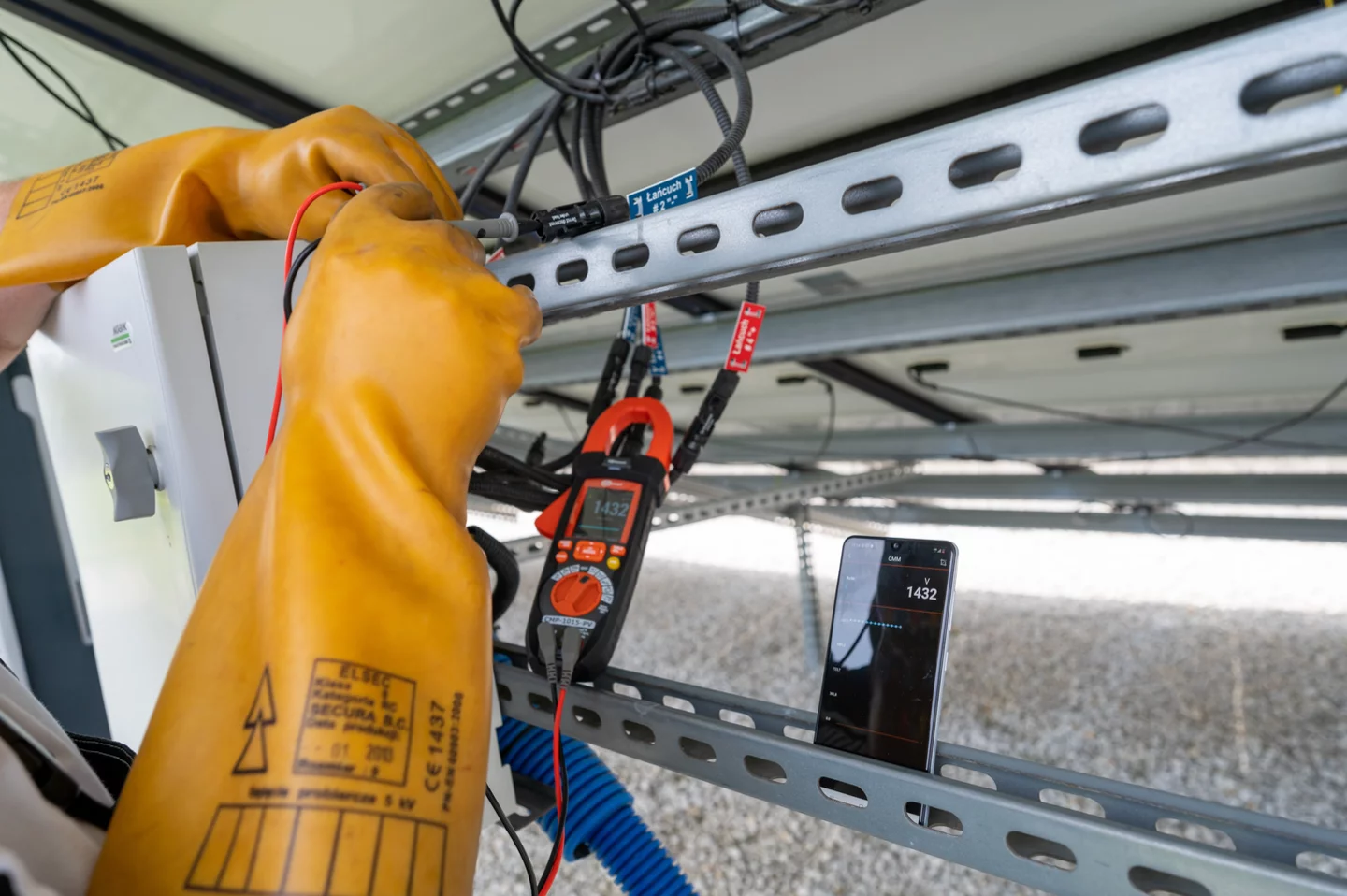

| Parameter | Measurement range | Display range | Resolution | Accuracy |
|---|---|---|---|---|
| Voltage | ||||
| AC voltage | 0.0 V…1000.0 V | 0.0 V…1000.0 V | 0.1 V | ±(2% m.v. + 6 digits) |
| DC voltage | 0.0 V…1500.0 V | 0.0 V…1500.0 V | 0.1 V | ±(0.5% m.v. + 2 digits) |
| Frequency | 10.0 Hz…100.0 Hz | 0 Hz…100.0 Hz | 0.1 Hz | ±(0.5% m.v. + 2 digits) |
| Short circuit current ISC | ||||
| Voltage 1500 V DC | 0.00…30.00 A | 0.00…30.00 A | 0.01 A | ±(1% m.v. + 2 digits) |
| Voltage 1000 V DC | 0.00…40.00 A | 0.00…40.00 A | 0.01 A | ±(1% m.v. + 2 digits) |
| Insulation resistance | ||||
| Insulation resistance at AC side | ||||
| • Measuring voltage 250 V | 250 kΩ…200 MΩ acc. to EN IEC 61557-2 |
0.0 kΩ…200.0 MΩ | from 0.1 kΩ | ±(3% m.v. + 8 digits) |
| • Measuring voltage 500 V | 500 kΩ…500 MΩ acc. to EN IEC 61557-2 |
0.0 kΩ…500.0 GΩ | from 0.1 kΩ | ±(3% m.v. + 8 digits) |
| • Measuring voltage 1000 V | 1000 kΩ…1.000 GΩ acc. to EN IEC 61557-2 |
0.0 kΩ…1.000 GΩ | from 0.1 kΩ | ±(3% m.v. + 8 digits) |
| Insulation resistance at DC side | ||||
| • Measuring voltage 250 V / 500 V / 1000 V / 1500 V | 250 kΩ…500 GΩ acc. to EN IEC 61557-2 |
0.0 kΩ…500.0 GΩ | from 0.1 kΩ | ±(8% m.v. + 8 digits) |
| Resistance of protective conductors and equipotential bondings | ||||
| Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current | 0.10 Ω…1999 Ω acc. to EN IEC 61557-4 |
0.00 Ω…1999 Ω | from 0.01 Ω | from ±(2% m.v. + 3 digits) |
| Operating current | as for CMP-1015-PV | as for CMP-1015-PV | as for CMP-1015-PV | as for CMP-1015-PV |
| Power measurement | 0.0 kW…999.0 kW | 0.0 kW…999.0 kW | 0.1 kW | ±(6% m.v. + 5 digits) |
"m.v." – measured value
